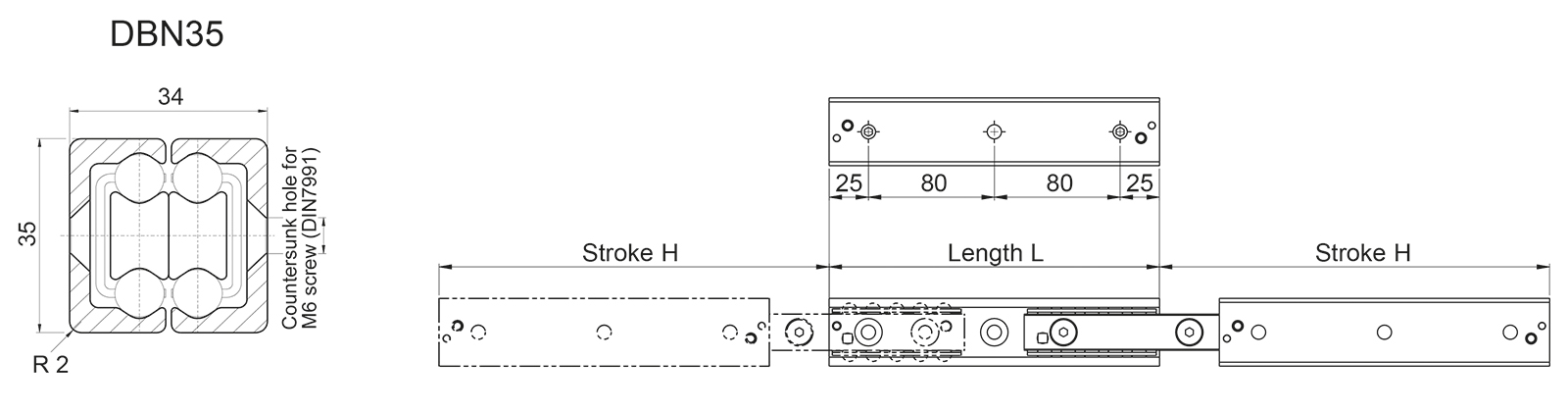

DBN35
Full extension consisting of two guide rails, both fixed and movable, and two sliders which together form the intermediate element. The size is similar to the DE series and offers good protection from dirt of the open ballcage.
Special strokes are defined as deviations from standard stroke H. They are each available as multiples of the values in the table below. These values are dependent on the spacing of the ballcage. See Stroke modification in table.
Dimensions in mm.
System Load Capacity Radial and System Load Capacity Axial value refers to a pair of rails.
Special strokes are defined as deviations from standard stroke H. They are each available as multiples of the values in the table below. These values are dependent on the spacing of the ballcage. See Stroke modification in table.
Dimensions in mm.
System Load Capacity Radial and System Load Capacity Axial value refers to a pair of rails.
Ladda ner PDF
Generating PDF
+
Lägg till i PDF-katalog
Product Information
Designation | Select all | Lead Time * | Length | Stroke | Number of Fixing Holes | Stroke Modification | Weight (kg/m) | ||
---|---|---|---|---|---|---|---|---|---|
|
2 | 210 | 254 | 3 | 24 | 6,10 |
|
||
|
2 | 290 | 318 | 4 | 24 | 6,10 |
|
||
|
2 | 370 | 406 | 5 | 24 | 6,10 |
|
||
|
2 | 450 | 494 | 6 | 24 | 6,10 |
|
||
|
2 | 530 | 558 | 7 | 24 | 6,10 |
|
||
|
2 | 610 | 646 | 8 | 24 | 6,10 |
|
||
|
2 | 690 | 734 | 9 | 24 | 6,10 |
|
||
|
2 | 770 | 798 | 10 | 24 | 6,10 |
|
||
|
2 | 850 | 886 | 11 | 24 | 6,10 |
|
||
|
2 | 930 | 974 | 12 | 24 | 6,10 |
|
||
|
2 | 1010 | 1038 | 13 | 24 | 6,10 |
|
||
|
2 | 1090 | 1126 | 14 | 24 | 6,10 |
|
||
|
2 | 1170 | 1214 | 15 | 24 | 6,10 |
|
||
|
2 | 1250 | 1278 | 16 | 24 | 6,10 |
|
||
|
2 | 1330 | 1366 | 17 | 24 | 6,10 |
|
||
|
2 | 1410 | 1454 | 18 | 24 | 6,10 |
|
||
|
2 | 1490 | 1518 | 19 | 24 | 6,10 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
Designation | Select all | System Load Capacity Radial (N) | System Load Capacity Axial (N) | ||
---|---|---|---|---|---|
|
804 | 562 |
|
||
|
1334 | 1120 |
|
||
|
1044 | 1044 |
|
||
|
858 | 858 |
|
||
|
788 | 788 |
|
||
|
676 | 676 |
|
||
|
594 | 594 |
|
||
|
558 | 558 |
|
||
|
500 | 500 |
|
||
|
454 | 454 |
|
||
|
434 | 434 |
|
||
|
398 | 398 |
|
||
|
366 | 366 |
|
||
|
354 | 354 |
|
||
|
330 | 330 |
|
||
|
308 | 308 |
|
||
|
298 | 298 |
|
