DBN22

LOCALLY MANUFACTURED
Full extension consisting of two guide rails, both fixed and movable, and two sliders which together form the intermediate element. The size is similar to the DE series and offers good protection from dirt of the open ballcage.

Special strokes are defined as deviations from standard stroke H. They are each available as multiples of the values in the table below. These values are dependent on the spacing of the ballcage. See Stroke modification in table.

Dimensions in mm.

System Load Capacity Radial and System Load Capacity Axial value refers to a pair of rails.
Download PDF

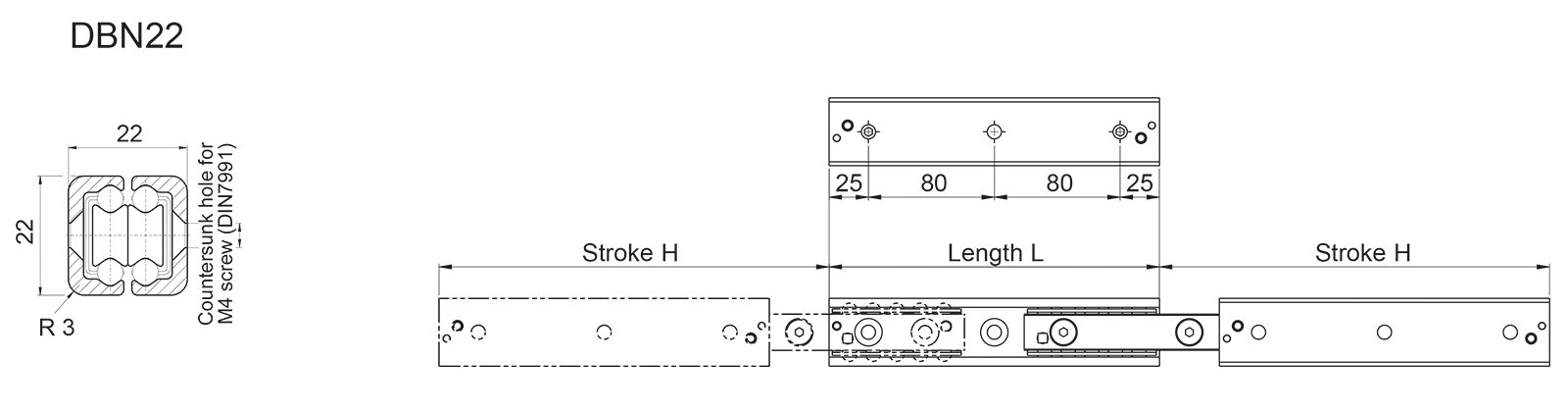

Technical Drawing
Designation Select all Lead Time * Length Stroke Number of Fixing Holes Stroke Modification Weight
2 130 152 2 15 2,64 kg/m
Compare
Get quote
2 210 222 3 15 2,64 kg/m
Compare
Get quote
2 290 308 4 15 2,64 kg/m
Compare
Get quote
2 370 392 5 15 2,64 kg/m
Compare
Get quote
2 450 462 6 15 2,64 kg/m
Compare
Get quote
2 530 548 7 15 2,64 kg/m
Compare
Get quote
2 610 632 8 15 2,64 kg/m
Compare
Get quote
2 690 702 9 15 2,64 kg/m
Compare
Get quote
2 770 788 10 15 2,64 kg/m
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Additional Drawing 2
Designation Select all System Load Capacity Radial System Load Capacity Axial
238 N 166 N
Compare
Get quote
562 N 392 N
Compare
Get quote
472 N 472 N
Compare
Get quote
372 N 372 N
Compare
Get quote
324 N 324 N
Compare
Get quote
272 N 272 N
Compare
Get quote
234 N 234 N
Compare
Get quote
216 N 216 N
Compare
Get quote
190 N 190 N
