Hand Clamps

Compact Rail guides can be secured with manual clamp elements. By using the freely adjustable clamping lever (except for HK 18, which uses hexagon socket bolt M6 DIN 913 with 3 mm drive), press the contact profile synchronously on the free surfaces of the rail. The floating mounted contact profiles guarantee symmetrical introduction of force on the guide rail.

The hand clamps are typically used for table cross beams and sliding beds, and during positioning optical equipment and measuring tables.

Dimensions in mm.

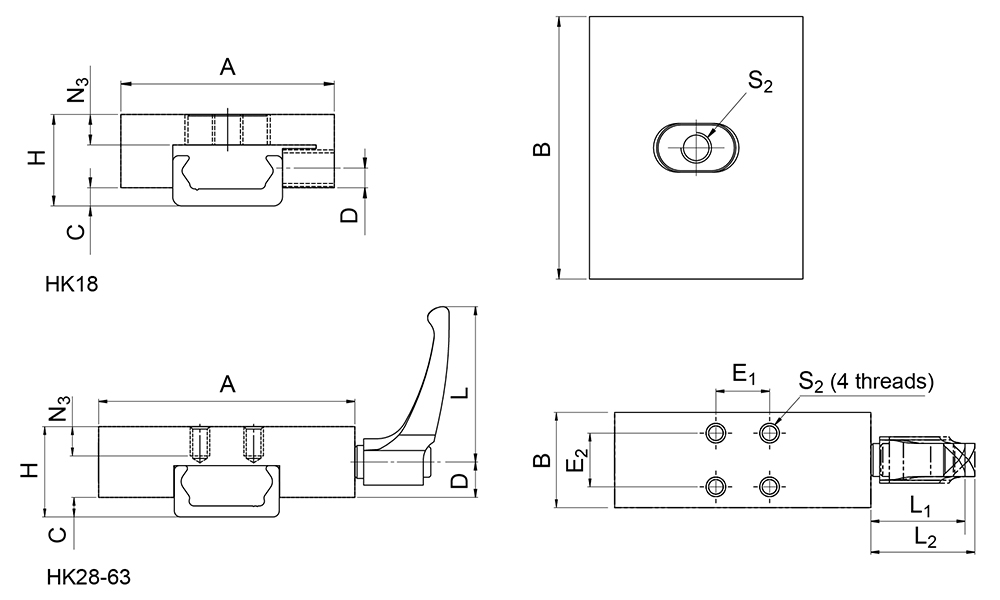

Technical Drawing
Designation Lead Time * Size Holding Force Tightening Torque
2 18 150 N 0.5 Nm
1 28 1200 N 7 Nm
1 43 2000 N 15 Nm
2 63 2000 N 15 Nm

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation A B C D E1 E2 H L L1 L2 N3 S2
35 43 3 3,20 0 0 15 - - - 6 M5
68 24 5 17 15 15 24 64 38,50 41,50 6 M5
105 39 8 28,50 22 22 37 78 46,50 50,50 12 M8
138 44 9,50 35 26 26 50,50 80 54,50 59,50 12 M8
