Button Head Screw (ISO 7380)
Zink plated and Stainless steel screw for C-rail
Rail
SBTE: Standard zinc plated steel
SXTE: Stainless steel
Special lengths are available upon request. Please contact Rollco for more information.
SXTE: Stainless steel
Special lengths are available upon request. Please contact Rollco for more information.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information

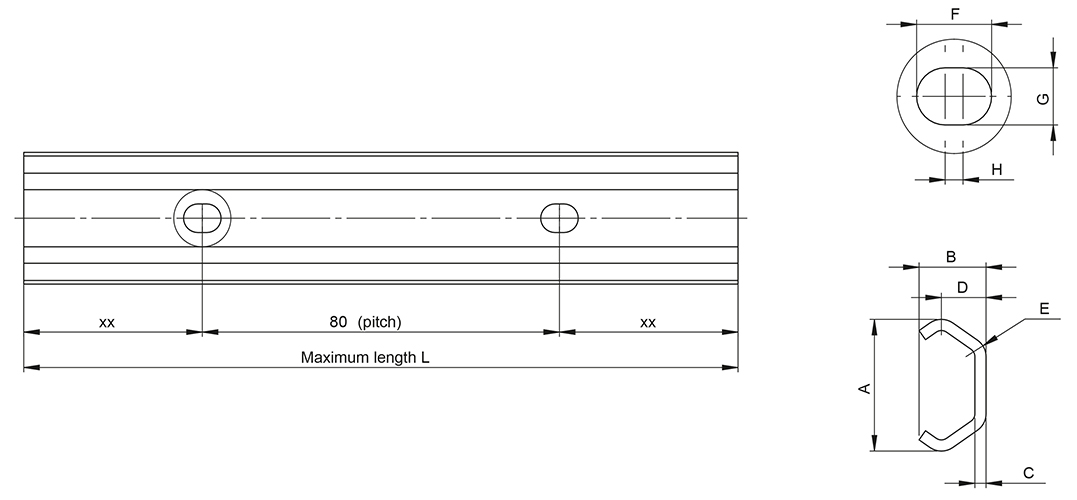

| Designation | Select all | Lead Time * | A | B | C | D | E | F | G | H | L | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
1 | 19.2 | 10 | 2 | 7 | 3 | 7 | 5 | 2 | 4000 |
|
|||
|
|
1 | 29.5 | 15 | 2.5 | 10 | 4.5 | 8.4 | 6.4 | 2 | 4000 |
|
|||
|
|
1 | 45.7 | 24.5 | 4 | 15.5 | 6 | 11 | 9 | 2 | 6080 |
|
|||
|
|
1 | 45.7 | 24.5 | 4 | 15.5 | 6 | 11 | 9 | 2 | 6080 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-

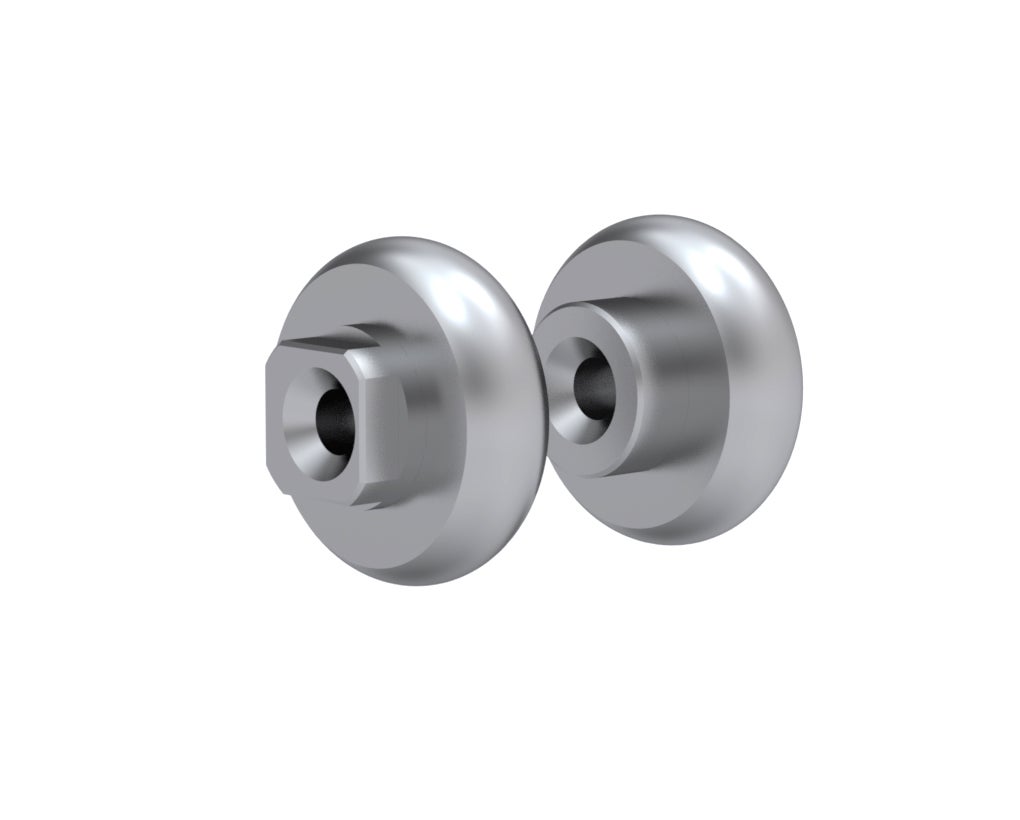

Rollers for Plate Version
