Rollers for Solid Version

CONCENTRIC ROLLER
RSBN: Standard bearing steel
RXBN: Stainless steel

ECCENTRIC ROLLER
RSBA: standard bearing steel
RXBA: Stainless bearing steel

Standard slider is with 3 rollers. The rollers can also be mounted directly into your application or we can make special sliders according to your need. Please contact Rollco for more information.

A, B and D = with rail
Designation Lead Time * Weight
1 0,006 kg
1 0.006 kg
1 0.006 kg
1 0.006 kg
1 0.022 kg
1 0.022 kg
1 0.022 kg
1 0.022 kg
1 0.07 kg
1 0.07 kg
1 0.07 kg
1 0.07 kg

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

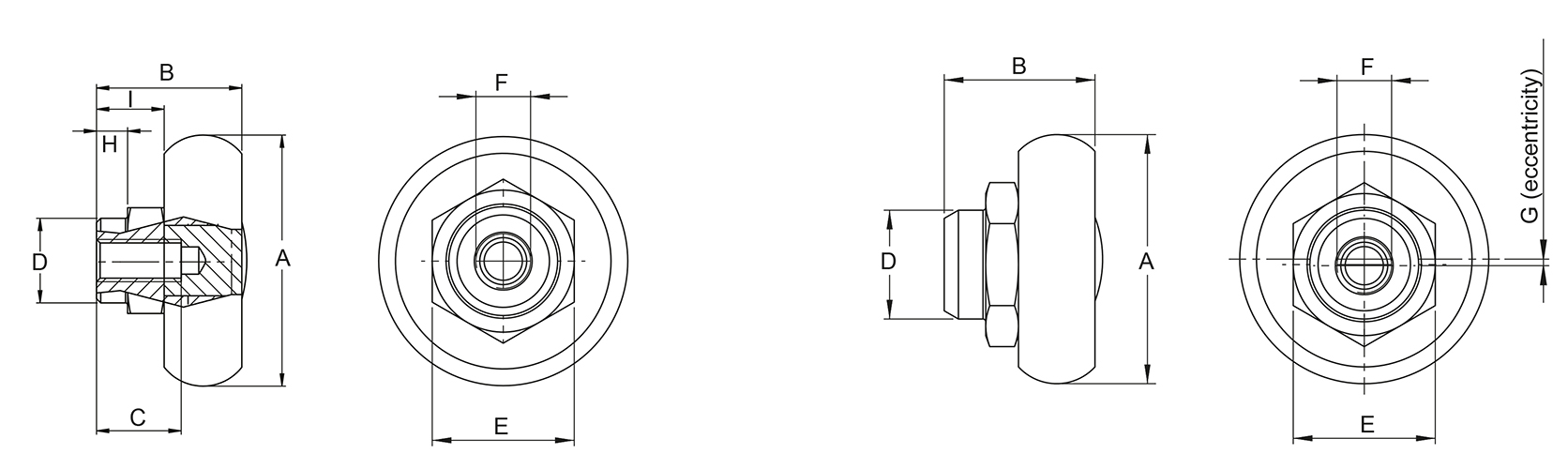

Technical Drawing
Designation A B C D E F G H I
14 8,70 6 6 8 M4 - 1,80 4,70
14 8,70 6 6 8 M4 - 1,80 4,70
14 8,70 6 6 8 M4 0,50 1,80 4,70
14 8,70 6 6 8 M4 0,50 1,80 4,70
22,80 13,80 7 10 13 M5 - 3,80 6,80
22,80 13,80 7 10 13 M5 - 3,80 6,80
22,80 13,80 7 10 13 M5 0,60 3,80 6,80
22,80 13,80 7 10 13 M6 0,60 3,80 6,80
35,60 20,60 12 12 15 M6 - 4,50 9,60
35,60 20,60 12 12 15 M6 - 4,50 9,60
35,60 20,60 12 12 15 M6 0,80 4,50 9,60
35,60 20,60 12 12 15 M6 0,80 4,50 9,60
