Wide MR-W Rail
Wide hardened ground rail
MR-W SS Series
Wide rail type
(End seal)
This product is available in different preload and accuracy classes (see more in Technical Information). Lead times below intend Rollco standard versions.
Preload
V0: clearance
VS: standard (Rollco standard)
V1: light preload
Accuracy
N: Normal (Rollco standard)
H: High
P: Precision
Dimensions in mm.
Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
Lead times in the table below are only indications. Choice of preload, accuracy class and other options will affect lead time. Please contact us for exact delivery time for your request.
(End seal)
This product is available in different preload and accuracy classes (see more in Technical Information). Lead times below intend Rollco standard versions.
Preload
V0: clearance
VS: standard (Rollco standard)
V1: light preload
Accuracy
N: Normal (Rollco standard)
H: High
P: Precision
Dimensions in mm.
Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
Lead times in the table below are only indications. Choice of preload, accuracy class and other options will affect lead time. Please contact us for exact delivery time for your request.
Ladda ner PDF
Generating PDF
+
Lägg till i PDF-katalog
Product Information
| Designation | Select all | Lead Time * | Dynamic Load Capacity C (N) | Static Load Capacity C0 (N) | Static Moment Mr0 (Nm) | Static Moment Mp0 (Nm) | Static Moment My0 (Nm) | Weight Block (g) | ||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 310 | 625 | 1.6 | 1.2 | 1.2 | 3 |
|
||
|
|
2 | 280 | 530 | 1.6 | 0.9 | 0.9 | 3.4 |
|
||
|
|
2 | 370 | 800 | 2.5 | 1.9 | 1.9 | 3.4 |
|
||
|
|
1 | 475 | 900 | 4.6 | 2.2 | 2.2 | 6 |
|
||
|
|
1 | 615 | 1315 | 6.8 | 4.1 | 4.1 | 8 |
|
||
|
|
1 | 1180 | 2095 | 15 | 7.3 | 7.3 | 19 |
|
||
|
|
1 | 1570 | 3140 | 22.65 | 14.9 | 14.9 | 27 |
|
||
|
|
1 | 2030 | 3605 | 33.2 | 13.7 | 13.7 | 37 |
|
||
|
|
1 | 2550 | 4990 | 45.9 | 26.7 | 26.7 | 51 |
|
||
|
|
1 | 3065 | 5200 | 63.7 | 26.3 | 26.3 | 65 |
|
||
|
|
1 | 4070 | 7800 | 95.6 | 56.4 | 56.4 | 93 |
|
||
|
|
1 | 5065 | 8385 | 171.1 | 45.7 | 45.7 | 137 |
|
||
|
|
1 | 6725 | 12580 | 257.6 | 257.6 | 93.1 | 200 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | System Height (H) | System Width (W) | Block Length (L) | W2 | ||
|---|---|---|---|---|---|---|---|
|
|
4 | 10 | 17 | 3 |
|
||
|
|
4.5 | 12 | 15 | 3 |
|
||
|
|
4.5 | 12 | 20.1 | 3 |
|
||
|
|
6.5 | 17 | 21.1 | 3.5 |
|
||
|
|
6.5 | 17 | 27.2 | 3.5 |
|
||
|
|
9 | 25 | 31.8 | 5.5 |
|
||
|
|
9 | 25 | 40.5 | 5.5 |
|
||
|
|
12 | 30 | 39.1 | 6 |
|
||
|
|
12 | 30 | 50.7 | 6 |
|
||
|
|
14 | 40 | 44.5 | 8 |
|
||
|
|
14 | 40 | 59.6 | 8 |
|
||
|
|
16 | 60 | 55.8 | 9 |
|
||
|
|
16 | 60 | 74.5 | 9 |
|
| Designation | Select all | P2 | P1 | S | Mxg2 | ||
|---|---|---|---|---|---|---|---|
|
|
- | 6.5 | - | M2x1.3 |
|
||
|
|
- | 4.5 | 0.8 | M2x1.4 |
|
||
|
|
- | 8 | 0.8 | M2x1.4 |
|
||
|
|
13 | 6.5 | 1.2 | M2.5x1.5 |
|
||
|
|
13 | 11 | 1.2 | M2.5x1.5 |
|
||
|
|
19 | 10 | 1.9 | M3x3 |
|
||
|
|
19 | 19 | 1.9 | M3x3 |
|
||
|
|
21 | 12 | 2.6 | M3x3 |
|
||
|
|
23 | 24 | 2.6 | M3x3 |
|
||
|
|
28 | 15 | 3.1 | M3x3.5 |
|
||
|
|
28 | 28 | 3.1 | M3x3.5 |
|
||
|
|
45 | 20 | 3.3 | M4x4.5 |
|
||
|
|
45 | 35 | 3.3 | M4x4.5 |
|
| Designation | Select all | W1 | H1 | D x d x g1 | Hole Pitch (P) | ||
|---|---|---|---|---|---|---|---|
|
|
4 | 2.6 | 2.8x1.8x1.0 | 10 |
|
||
|
|
6 | 2.7 | 4x2.4x1.5 | 15 |
|
||
|
|
6 | 2.7 | 4x2.4x1.5 | 15 |
|
||
|
|
10 | 4 | 5.5x3x1.6 | 20 |
|
||
|
|
10 | 4 | 5.5x3x1.6 | 20 |
|
||
|
|
14 | 5.2 | 6x3.5x3.5 | 30 |
|
||
|
|
14 | 5.2 | 6x3.5x3.5 | 30 |
|
||
|
|
18 | 7.3 | 6x3.5x4.5 | 30 |
|
||
|
|
18 | 7.3 | 6x3.5x4.5 | 30 |
|
||
|
|
24 | 8.5 | 8x4.5x4.5 | 40 |
|
||
|
|
24 | 8.5 | 8x4.5x4.5 | 40 |
|
||
|
|
42 | 9.5 | 8x4.5x4.5 | 40 |
|
||
|
|
42 | 9.5 | 8x4.5x4.5 | 40 |
|
| Designation | Select all | Block Length (L) | System Width (W) | L1 | h2 | W2 | Mxg2 | T | H1 | ø | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
17 | 10 | 11.9 | 3 | 3 | M2x1.3 | 1.3 | 2.6 | - |
|
||
|
|
15 | 12 | 10 | 3.5 | 3 | M2x1.4 | 1.8 | 2.7 | 0.3 |
|
||
|
|
20.1 | 12 | 15.1 | 3.5 | 3 | M2x1.4 | 1.8 | 2.7 | 0.3 |
|
||
|
|
21.1 | 17 | 15.1 | 5 | 3.5 | M2.5x1.5 | 2.3 | 4 | 0.9 |
|
||
|
|
27.2 | 17 | 21.2 | 5 | 3.5 | M2.5x1.5 | 2.3 | 4 | 0.9 |
|
||
|
|
31.8 | 25 | 21.2 | 7 | 5.5 | M3x3 | 3.2 | 5.2 | 1.1 |
|
||
|
|
40.5 | 25 | 30.1 | 7 | 5.5 | M3x3 | 3.2 | 5.2 | 1.1 |
|
||
|
|
39.1 | 30 | 27.9 | 8.6 | 6 | M3x3 | 4 | 7.3 | 1.3 |
|
||
|
|
50.7 | 30 | 39.4 | 8.6 | 6 | M3x3 | 4 | 7.3 | 1.3 |
|
||
|
|
44.5 | 40 | 31.1 | 10.1 | 8 | M3x3.5 | 4.5 | 8.5 | 1.4 |
|
||
|
|
59.6 | 40 | 46 | 10.1 | 8 | M3x3.5 | 4.5 | 8.5 | 1.4 |
|
||
|
|
55.8 | 60 | 38.5 | 12 | 9 | M4x4.5 | 4.5 | 9.5 | 1.9 |
|
||
|
|
74.5 | 60 | 57.6 | 12 | 9 | M4x4.5 | 4.5 | 9.5 | 1.9 |
|
-
-

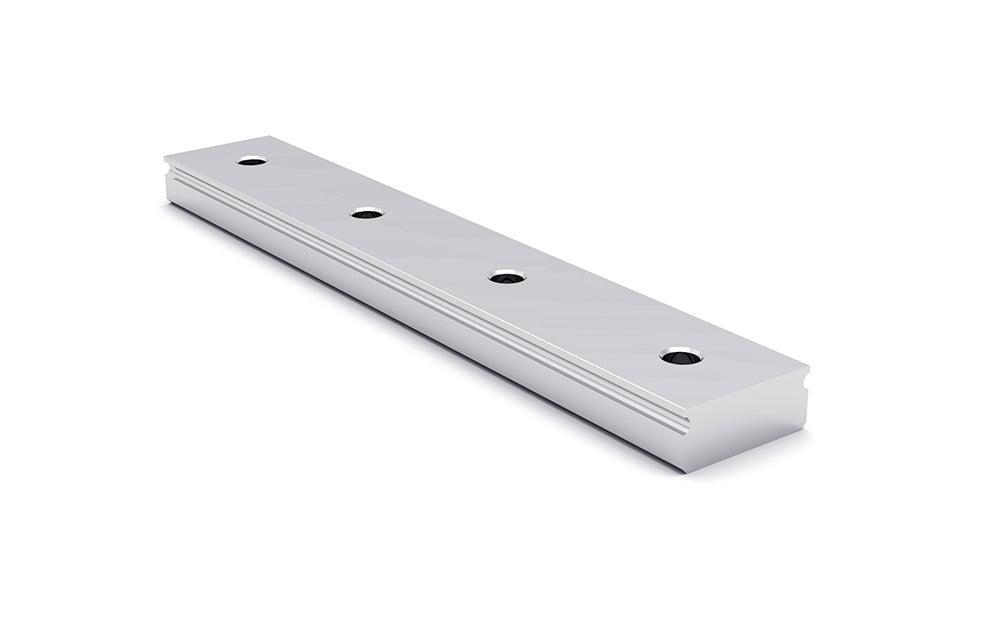

Wide MRU-W Rail
