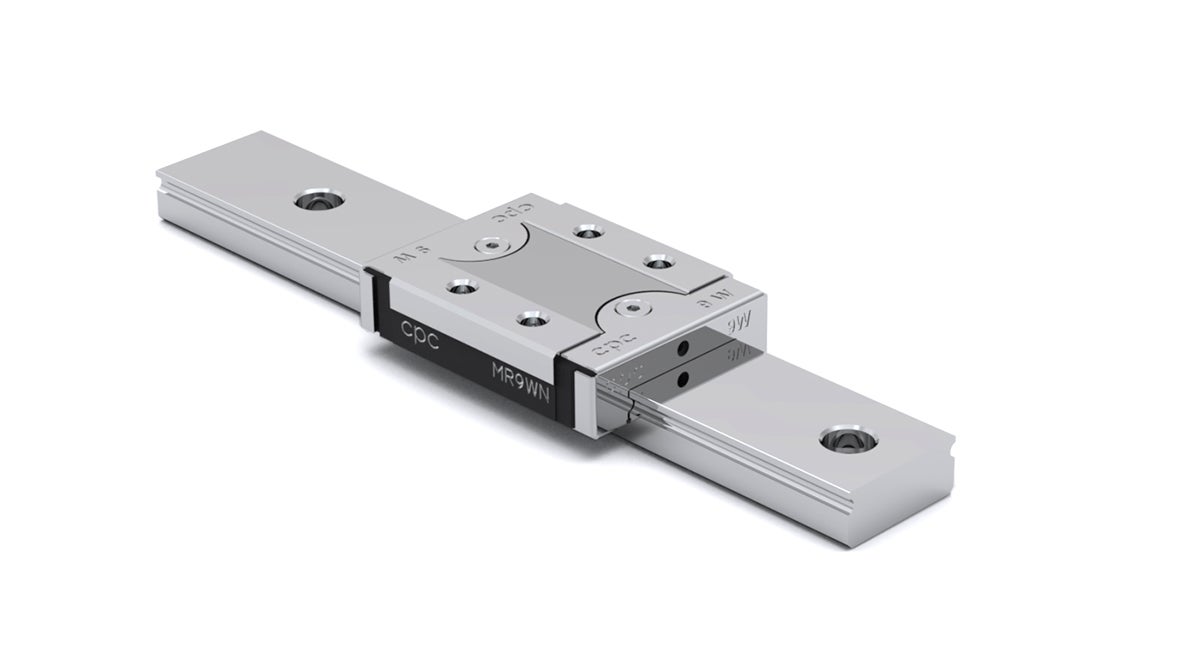

MR-W ZUE Series
Wide block with reinforcement plate and integrated lubrication

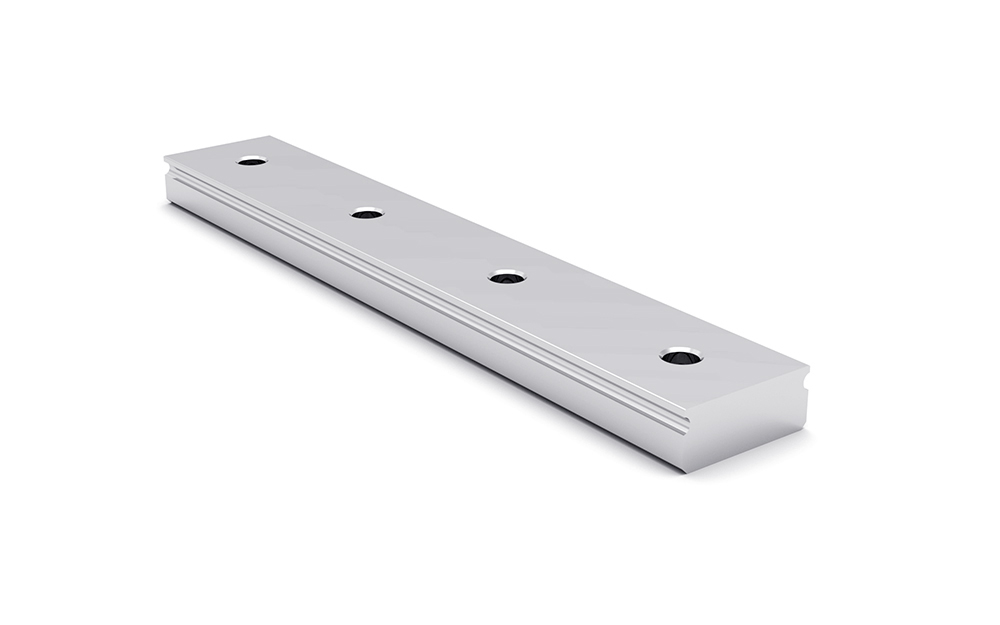

Wide MRU-W Rail
Tapped from bottom.
Dimensions in mm.
Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
Read more
Dimensions in mm.
Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Weight Rail (g/m) |
|---|---|---|---|---|---|
|
|
|
2 | 105 | ||
|
|
|
2 | 280 | ||
|
|
|
2 | 516 | ||
|
|
|
2 | 940 | ||
|
|
|
2 | 1472 | ||
|
|
|
1 | 2818 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | Compare | Get quote | H1 | W1 | Hole Pitch (P) | M1 |
|---|---|---|---|---|---|---|---|
|
|
|
2.7 | 6 | 15 | M3x0.5 | ||
|
|
|
4 | 10 | 20 | M3x0.5 | ||
|
|
|
5.2 | 14 | 30 | M4x0.7 | ||
|
|
|
7.3 | 18 | 30 | M4x0.7 | ||
|
|
|
8.5 | 24 | 40 | M5x0.8 | ||
|
|
|
9.5 | 42 | 40 | M5x0.8 |
-
-

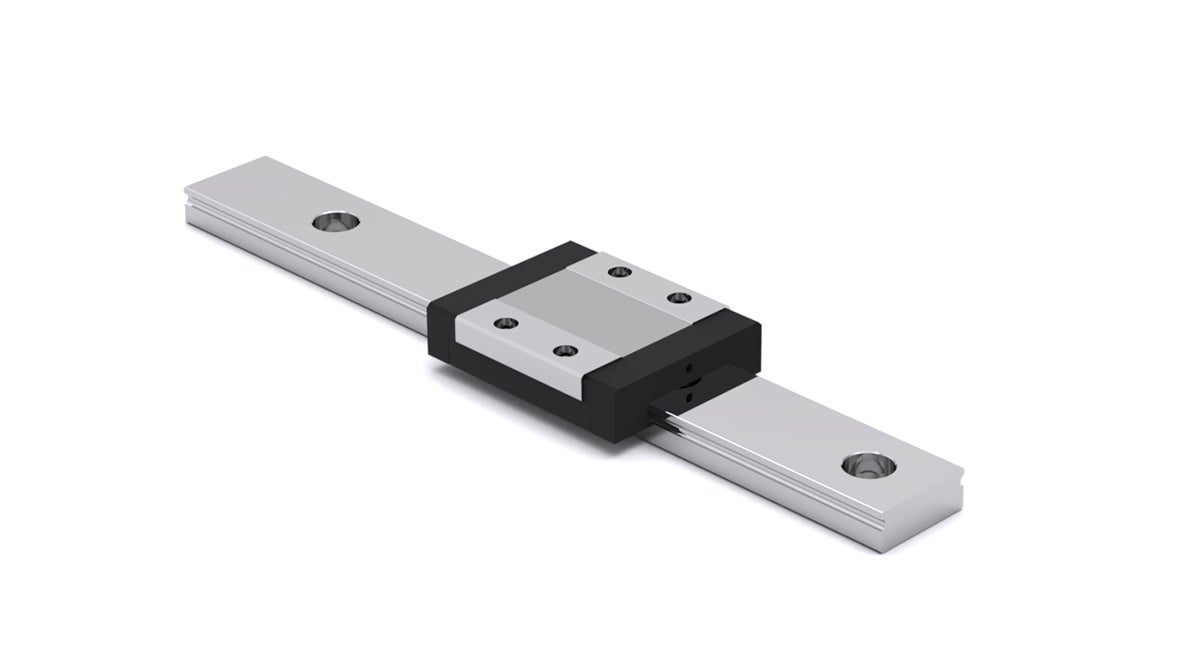

MR-W SS Series
Wide block with end seal
