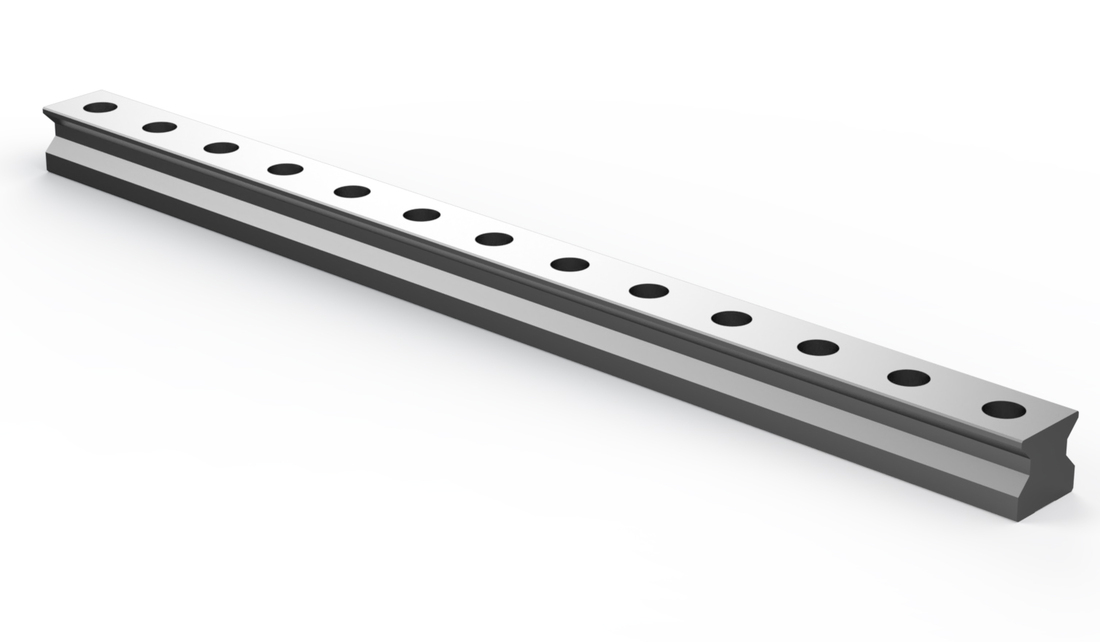

Rail RMG

STOCK ITEM
The Rollco Roller Guides are highly developed solutions for the high-tech industry. The optimized shape of the rails, the roller guides with logarithmic profiles and the integrated lubrication system multiplies the economical as well as the technical advantages.

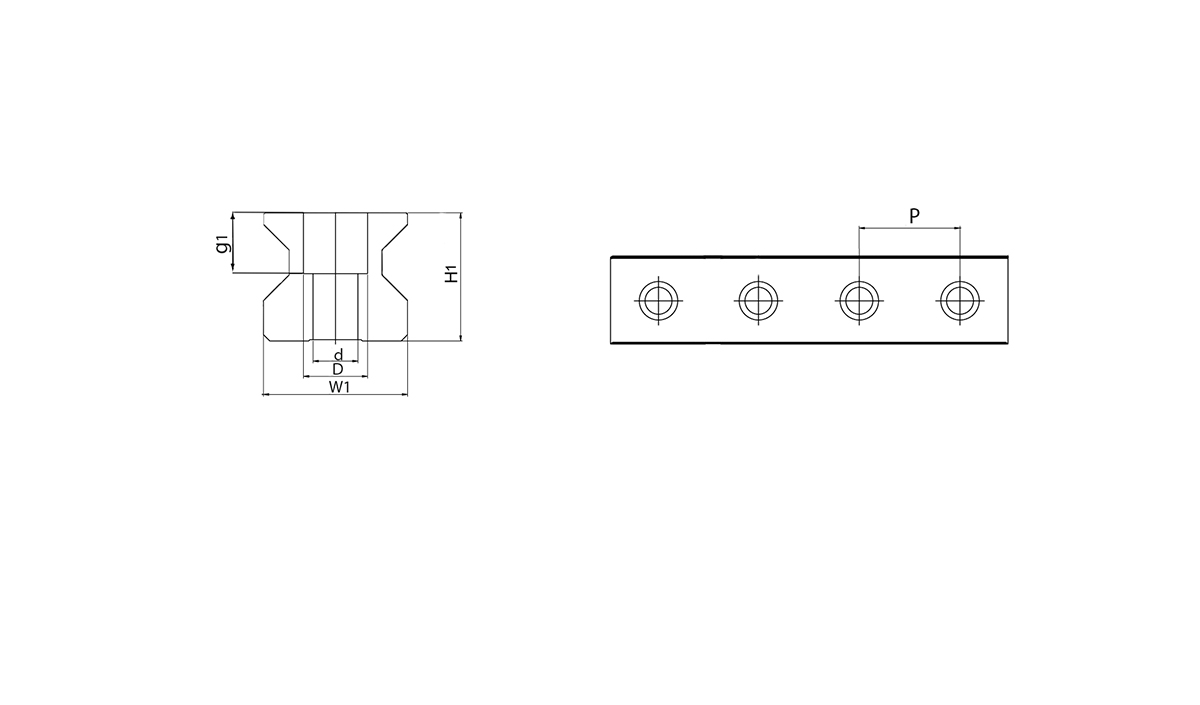

Dimensions in mm
Ladda ner PDF (all data) Generating PDF
+ Lägg till i PDF-katalog

Product Information

Linear_Roller_Guide_Technical_Information.pdf
Linear_Roller_Guide_Order_Codes.pdf
Designation Select all Lead Time * H1 W1 Hole Pitch (P) D x d x g1 Weight (kg/m) CAD Compare
/storage/61D4FC0E17D5966484B7F902F72DE071B9AF44BEBCBCCC3BEA0E9D632721924F/fcaf4895be484311b69c645c50f7e8bc/STEP/media/8cfa039237dd425fa3ed0c6d963b25ee/CAD_RMG25_RailRMG_Rollco.STEP 1 24.5 23 30 11 x 7 x 11.5 3.4
Get quote
/storage/CC60D22E294C435CAB17B05E4083CBF4D01152BA0F001BB46B3EE008013BC4F9/ae827d42a1864cad9d8bf0f16cce987e/STEP/media/6ea1400f0b7f4b68ab3230c131687774/CAD_RMG35_RailRMG_Rollco.STEP 1 32 34 40 15 x 9 x 17 6.5
Get quote
/storage/034A511BB91F39463F86C1A2A6775F03730410D0B86F80D11E6840C17D0207DD/955f4049b14f49978220722e9c1357c6/STEP/media/d2db71aed2a347eaae8db34734c7596a/CAD_RMG45_RailRMG_Rollco.STEP 1 40 45 52.5 20 x 14 x 19 10.7
Get quote
/storage/6197FC09657D78160BEE412DBD8C11BA3E5E30D42AB445DDC65B4A24C372C12E/48770df12eac4fbaad75ebdf5a37028c/STEP/media/e81c10c6c24d4678844c7661b29bc133/CAD_RMG55_RailRMG_Rollco.STEP 2 48 53 60 24 x 16 x 22 15.2
Get quote
/storage/1DF2C5276FAB2C7696179453B610ACBE08EF83D24F4BDAA724F6EA81DA08521C/8b23c43004884c5291bd6f52557523d2/STEP/media/102e7d7c580b4afb9c185bece395bcbe/CAD_RMG65_RailRMG_Rollco.STEP 2 55 63 75 26 x 18 x 26 22.5
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
