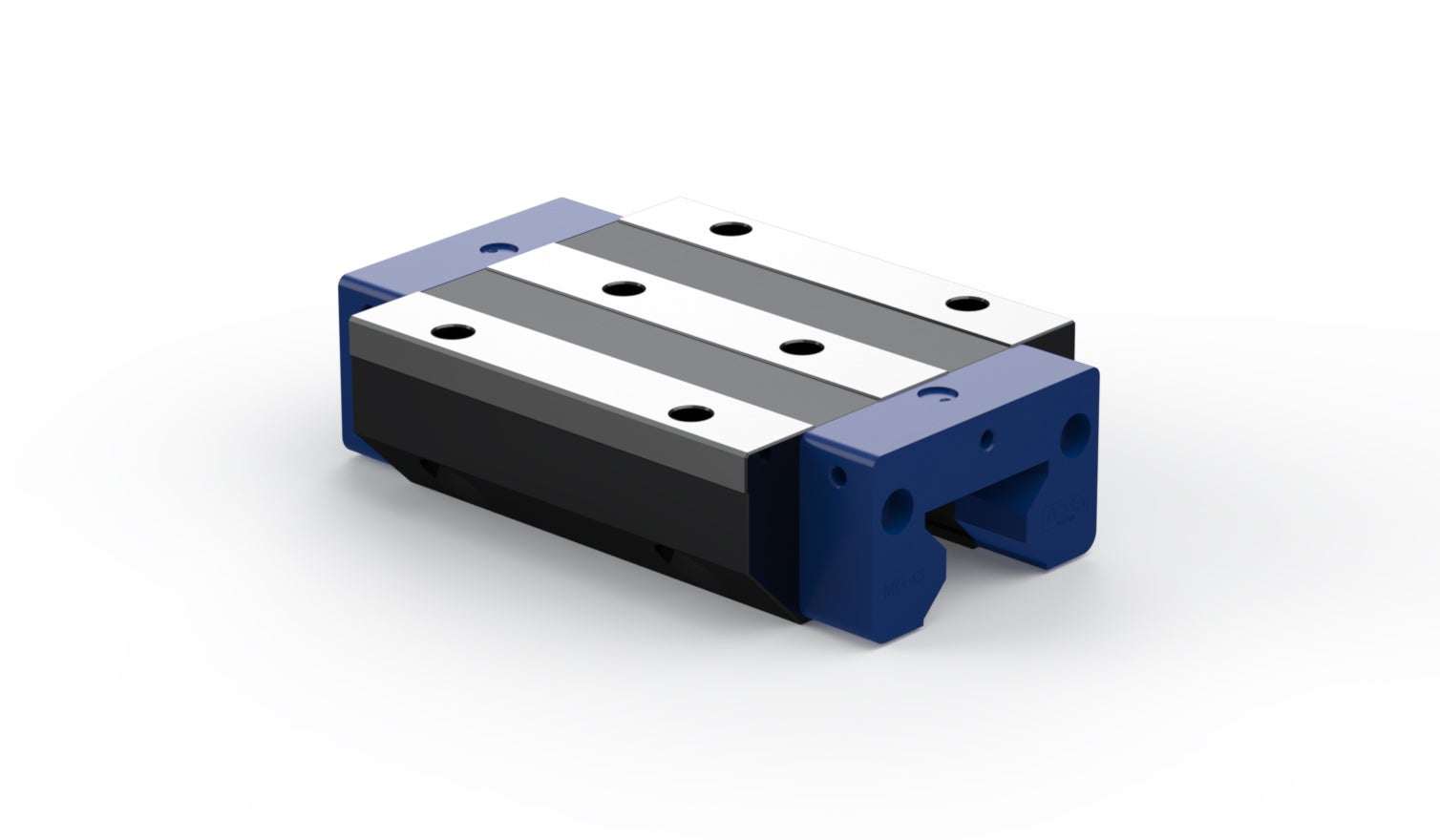

Wide Block Type LL

STOCK ITEM
The Rollco Roller Guides are highly developed solutions for the high-tech industry.

The optimized shape of the rails, the roller guides with logarithmic profiles and the integrated lubrication system multiplies the economical as well as the technical advantages.

Dimensions in mm.

Lead times in the table below are only indications. Choice of preload and accuracy class will affect lead time. Please contact us for exact delivery time for your request.
Ladda ner PDF (all data) Generating PDF
+ Lägg till i PDF-katalog

Product Information

Linear_Roller_Guide_Technical_Information.pdf
Linear_Roller_Guide_Order_Codes.pdf
Designation Select all Lead Time * Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Dynamic Moment Mr (Nm) Dynamic Moment Mp (Nm) Dynamic Moment My (Nm) CAD Compare
/storage/AFC155CF72D6C6DD30F291941029793D23C6B0EB0496F45EEA490A6F71EBF46E/eb730905b1e04f4d9cd5837ab26adb9d/stp/media/cb9cdcac4264431b95db14f149768697/CAD_RMG25LL_WideBlockTypeLL_Rollco.stp 1 38900 76800 1150 970 970 583 491 491
Get quote
/storage/8FD526DF970762B2DCEA575C47BA65297E4BBEE7EDE58C7DFB901A2E71910DFB/307ab4e109544a70af4426aa31228434/stp/media/b045ac94b99c4649b978b811d8fea2e8/CAD_RMG35LL_WideBlockTypeLL_Rollco.stp 2 72600 136000 3014 2243 2243 1595 1187 1187
Get quote
/storage/47E1566EA8AC8ABCEEB11E2AE41EF869DFA52F540D29AD128F0CDBD658476678/bfd39e89deac429ab130a214c8fa8f77/stp/media/3e7d8a6aa4a04a26b6320b815a4e2cb2/CAD_RMG45LL_WideBlockTypeLL_Rollco.stp 2 119500 242200 6672 4951 4951 3293 2444 2444
Get quote
/storage/3F69BCEFDEA28A15F6A5B41A72D14542D0E1E9AB87468E9BB6CC8CA70F7EB212/c24601dec8504ddfb5e17bab67c93f7b/stp/media/37a6d439ecd14519a7b8f16281efaa94/CAD_RMG55LL_WideBlockTypeLL_Rollco.stp 2 176000 351000 11915 8910 8910 5977 4470 4470
Get quote
/storage/469F505A40239B2484EA5577733507430E6F49310B6102DEB9CB4042D0017DA5/51104618076341c1b8600e9dc7e4a15d/stp/media/76b73ce9900840d09715bcd67de79b5b/CAD_RMG65LL_WideBlockTypeLL_Rollco.stp 2 276000 579000 22100 11840 11840 10530 8980 8980
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all System Height (H) System Width (W) Block Length (L) W2 CAD Compare
/storage/AFC155CF72D6C6DD30F291941029793D23C6B0EB0496F45EEA490A6F71EBF46E/eb730905b1e04f4d9cd5837ab26adb9d/stp/media/cb9cdcac4264431b95db14f149768697/CAD_RMG25LL_WideBlockTypeLL_Rollco.stp 36 70 109.7 23.5
Get quote
/storage/8FD526DF970762B2DCEA575C47BA65297E4BBEE7EDE58C7DFB901A2E71910DFB/307ab4e109544a70af4426aa31228434/stp/media/b045ac94b99c4649b978b811d8fea2e8/CAD_RMG35LL_WideBlockTypeLL_Rollco.stp 48 100 142.3 33
Get quote
/storage/47E1566EA8AC8ABCEEB11E2AE41EF869DFA52F540D29AD128F0CDBD658476678/bfd39e89deac429ab130a214c8fa8f77/stp/media/3e7d8a6aa4a04a26b6320b815a4e2cb2/CAD_RMG45LL_WideBlockTypeLL_Rollco.stp 60 120 179.8 37.5
Get quote
/storage/3F69BCEFDEA28A15F6A5B41A72D14542D0E1E9AB87468E9BB6CC8CA70F7EB212/c24601dec8504ddfb5e17bab67c93f7b/stp/media/37a6d439ecd14519a7b8f16281efaa94/CAD_RMG55LL_WideBlockTypeLL_Rollco.stp 70 140 215 43.5
Get quote
/storage/469F505A40239B2484EA5577733507430E6F49310B6102DEB9CB4042D0017DA5/51104618076341c1b8600e9dc7e4a15d/stp/media/76b73ce9900840d09715bcd67de79b5b/CAD_RMG65LL_WideBlockTypeLL_Rollco.stp 90 170 272.3 53.5
Get quote
Designation Select all P2 P1 S CAD Compare
/storage/AFC155CF72D6C6DD30F291941029793D23C6B0EB0496F45EEA490A6F71EBF46E/eb730905b1e04f4d9cd5837ab26adb9d/stp/media/cb9cdcac4264431b95db14f149768697/CAD_RMG25LL_WideBlockTypeLL_Rollco.stp 57 45 M6
Get quote
/storage/8FD526DF970762B2DCEA575C47BA65297E4BBEE7EDE58C7DFB901A2E71910DFB/307ab4e109544a70af4426aa31228434/stp/media/b045ac94b99c4649b978b811d8fea2e8/CAD_RMG35LL_WideBlockTypeLL_Rollco.stp 82 62 M8
Get quote
/storage/47E1566EA8AC8ABCEEB11E2AE41EF869DFA52F540D29AD128F0CDBD658476678/bfd39e89deac429ab130a214c8fa8f77/stp/media/3e7d8a6aa4a04a26b6320b815a4e2cb2/CAD_RMG45LL_WideBlockTypeLL_Rollco.stp 100 80 M10
Get quote
/storage/3F69BCEFDEA28A15F6A5B41A72D14542D0E1E9AB87468E9BB6CC8CA70F7EB212/c24601dec8504ddfb5e17bab67c93f7b/stp/media/37a6d439ecd14519a7b8f16281efaa94/CAD_RMG55LL_WideBlockTypeLL_Rollco.stp 116 95 M12
Get quote
/storage/469F505A40239B2484EA5577733507430E6F49310B6102DEB9CB4042D0017DA5/51104618076341c1b8600e9dc7e4a15d/stp/media/76b73ce9900840d09715bcd67de79b5b/CAD_RMG65LL_WideBlockTypeLL_Rollco.stp 142 110 M14
Get quote

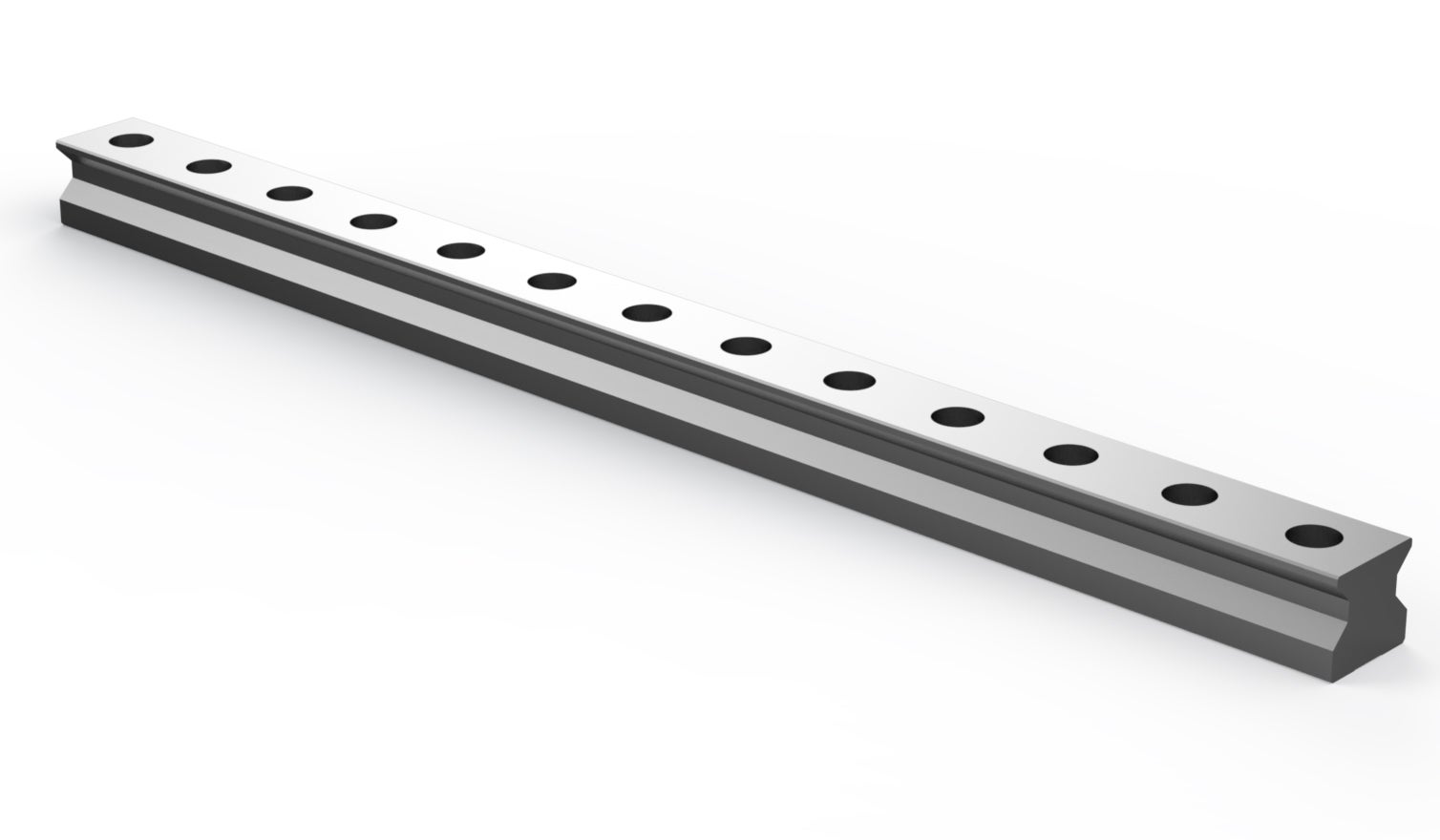

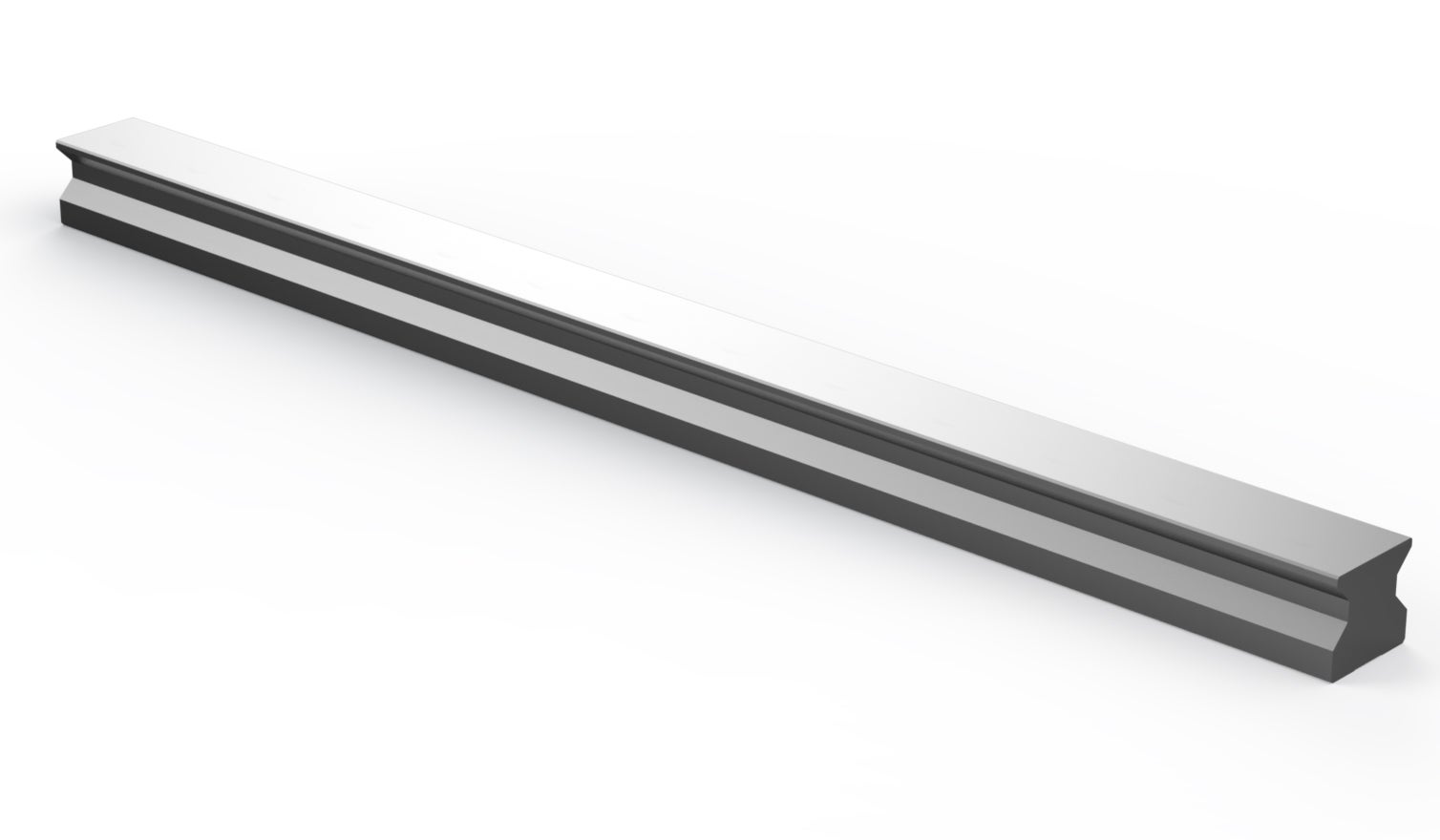

Designation Select all W1 H1 P D x d x g1 Hole Pitch (P) CAD Compare
/storage/AFC155CF72D6C6DD30F291941029793D23C6B0EB0496F45EEA490A6F71EBF46E/eb730905b1e04f4d9cd5837ab26adb9d/stp/media/cb9cdcac4264431b95db14f149768697/CAD_RMG25LL_WideBlockTypeLL_Rollco.stp 23 24.5 - 11 x 7 x 11.5 30
Get quote
/storage/8FD526DF970762B2DCEA575C47BA65297E4BBEE7EDE58C7DFB901A2E71910DFB/307ab4e109544a70af4426aa31228434/stp/media/b045ac94b99c4649b978b811d8fea2e8/CAD_RMG35LL_WideBlockTypeLL_Rollco.stp 34 32 40 15 x 9 x 17 -
Get quote
/storage/47E1566EA8AC8ABCEEB11E2AE41EF869DFA52F540D29AD128F0CDBD658476678/bfd39e89deac429ab130a214c8fa8f77/stp/media/3e7d8a6aa4a04a26b6320b815a4e2cb2/CAD_RMG45LL_WideBlockTypeLL_Rollco.stp 45 40 52.5 20 x 14 x 19 -
Get quote
/storage/3F69BCEFDEA28A15F6A5B41A72D14542D0E1E9AB87468E9BB6CC8CA70F7EB212/c24601dec8504ddfb5e17bab67c93f7b/stp/media/37a6d439ecd14519a7b8f16281efaa94/CAD_RMG55LL_WideBlockTypeLL_Rollco.stp 53 48 60 24 x 16 x 22 -
Get quote
/storage/469F505A40239B2484EA5577733507430E6F49310B6102DEB9CB4042D0017DA5/51104618076341c1b8600e9dc7e4a15d/stp/media/76b73ce9900840d09715bcd67de79b5b/CAD_RMG65LL_WideBlockTypeLL_Rollco.stp 63 55 75 26 x 18 x 26 -
Get quote
Designation Select all Block Length (L) System Width (W) L1 h2 W2 S1 S4 T G1 H1 L3 Q CAD Compare
/storage/AFC155CF72D6C6DD30F291941029793D23C6B0EB0496F45EEA490A6F71EBF46E/eb730905b1e04f4d9cd5837ab26adb9d/stp/media/cb9cdcac4264431b95db14f149768697/CAD_RMG25LL_WideBlockTypeLL_Rollco.stp 109.7 70 81.5 29.5 23.5 M8 23.7 9 6.5 24.5 40 5.5
Get quote
/storage/8FD526DF970762B2DCEA575C47BA65297E4BBEE7EDE58C7DFB901A2E71910DFB/307ab4e109544a70af4426aa31228434/stp/media/b045ac94b99c4649b978b811d8fea2e8/CAD_RMG35LL_WideBlockTypeLL_Rollco.stp 142.3 100 103 41 33 M10 27 12 10 32 52 7.9
Get quote
/storage/47E1566EA8AC8ABCEEB11E2AE41EF869DFA52F540D29AD128F0CDBD658476678/bfd39e89deac429ab130a214c8fa8f77/stp/media/3e7d8a6aa4a04a26b6320b815a4e2cb2/CAD_RMG45LL_WideBlockTypeLL_Rollco.stp 179.8 120 133.8 50 37.5 M12 33.9 15 12 40 60 8
Get quote
/storage/3F69BCEFDEA28A15F6A5B41A72D14542D0E1E9AB87468E9BB6CC8CA70F7EB212/c24601dec8504ddfb5e17bab67c93f7b/stp/media/37a6d439ecd14519a7b8f16281efaa94/CAD_RMG55LL_WideBlockTypeLL_Rollco.stp 215 140 162 57 43.5 M14 42 18 13.5 48 70 9
Get quote
/storage/469F505A40239B2484EA5577733507430E6F49310B6102DEB9CB4042D0017DA5/51104618076341c1b8600e9dc7e4a15d/stp/media/76b73ce9900840d09715bcd67de79b5b/CAD_RMG65LL_WideBlockTypeLL_Rollco.stp 272.3 170 210.3 78 53.5 M16 54.3 22 19.5 55 82 15
Get quote
