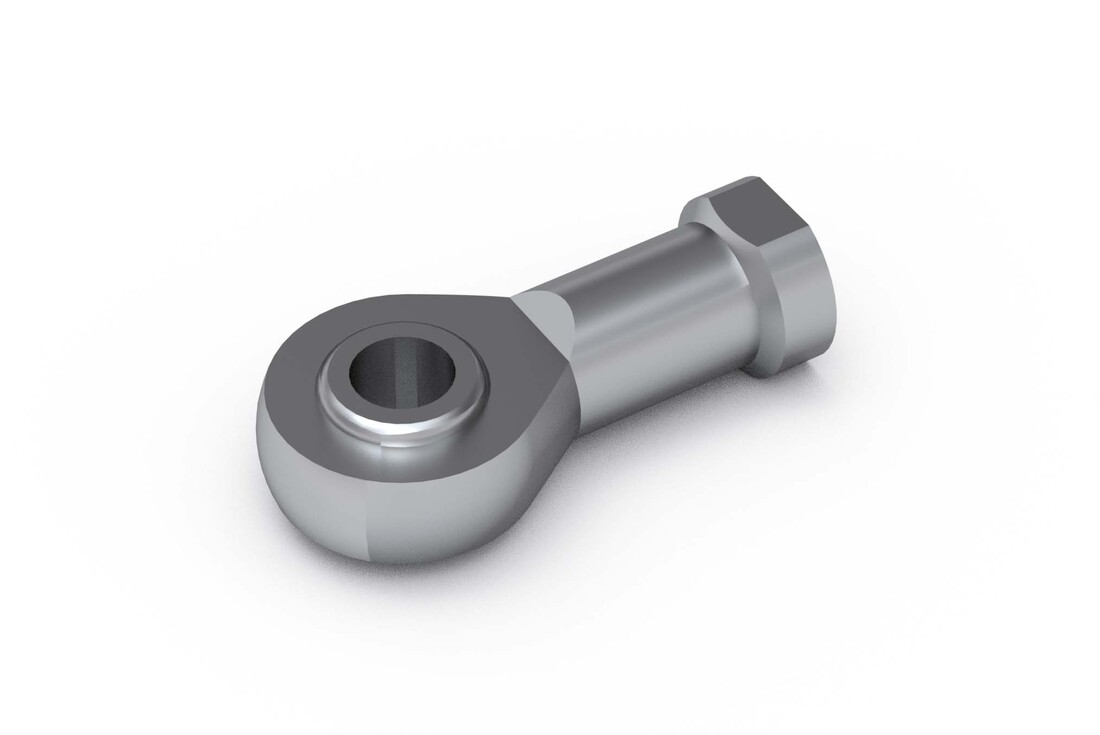

Rod eye SGS

Dimensions in mm.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Material: Galvanized steel
Designation Select all Lead Time * Compatible with Description Material Fmax (N) Mass (kg) CAD Compare
2 MCE 25 SGS 25 Galvanized steel F MCE 0.03
Get quote
/storage/66423C90E9F54662C1829D380380083DFC5E6289726C1E5BE0D5D148514413F2/ccf226143521442fa25caa6d7454c819/stp/media/9f951995882c4f728859cb15a66aa0ac/CAD_SGS32-9216_RodEyeSGS_Rollco.stp 2 MCE 32 SGS 32 Galvanized steel F MCE 0.05
Get quote
/storage/ED9629561F4454958DBCECB568F44E7963805FA12C1B1781BA9666E54FC4713A/3a8b7d577d3b496994a65f93150bce62/stp/media/5b9b2376e0f046d2a78123ee558ede20/CAD_SGS45-9206_RodEyeSGS_Rollco.stp 2 MCE 45 SGS 45 Galvanized steel F MCE 0.08
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all M L1 L2 L3 L4 L5 D1 D2 R CH Z CAD Compare
M6 40 30 9 6.75 12 6 (H7) 13 10 11 13°
Get quote
/storage/66423C90E9F54662C1829D380380083DFC5E6289726C1E5BE0D5D148514413F2/ccf226143521442fa25caa6d7454c819/stp/media/9f951995882c4f728859cb15a66aa0ac/CAD_SGS32-9216_RodEyeSGS_Rollco.stp M8 48 36 12 9 16 8 (H7) 16 12 14 14°
Get quote
/storage/ED9629561F4454958DBCECB568F44E7963805FA12C1B1781BA9666E54FC4713A/3a8b7d577d3b496994a65f93150bce62/stp/media/5b9b2376e0f046d2a78123ee558ede20/CAD_SGS45-9206_RodEyeSGS_Rollco.stp M10x1.25 57 43 14 10.5 20 10 (H7) 19 14 17 13°
Get quote
