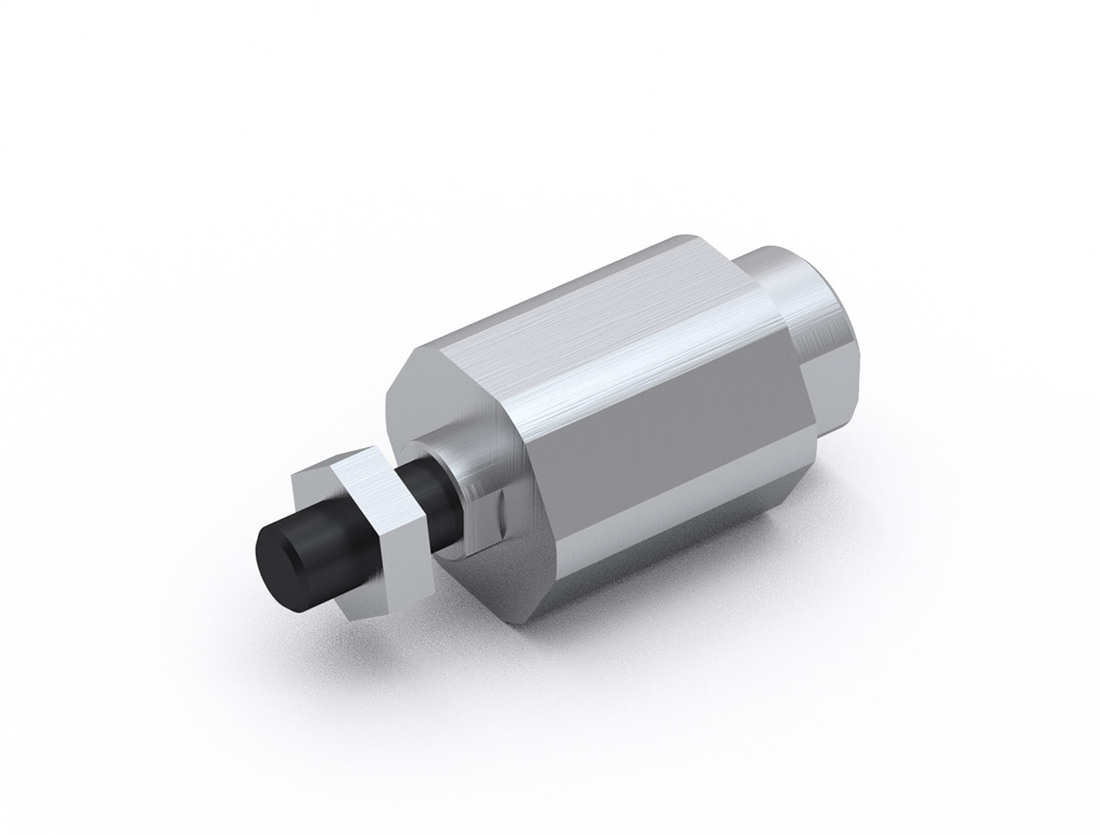

Self-aligning joint FK

Dimensions in mm.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Material: Galvanized steel
Designation Select all Compatible with Description Material Fmax (N) Mass (kg/m)
MCE 25 FK 25 Galvanized steel F MCE 0,03 kg
Get quote
MCE 32 FK 32 Galvanized steel F MCE 0,06 kg
Get quote
/storage/BE477F2BE619BC19A162CF31D3113F0B7B80437EDAC5DACB973ABF57AE04EE72/cd5de4cee06a42b7b606a49b430cb04c/stp/media/06d7d3e54e814a01b1fe00feacb8deb7/CAD_FK45-5466_SelfAligningJointFK_Rollco.stp MCE 45 FK 45 Galvanized steel F MCE 0,22 kg
Get quote
Designation Select all M L1 L2 L3 L4 L5 L6 A D E CH1 CH2 CH3 CH4 B
M6 35 17,50 11 4 12,50 14,50 4 8,50 1 13 7 10 5 6
Get quote
M8 57 26 21 5 16 19 5 12,50 2 17 11 13 7 8
Get quote
/storage/BE477F2BE619BC19A162CF31D3113F0B7B80437EDAC5DACB973ABF57AE04EE72/cd5de4cee06a42b7b606a49b430cb04c/stp/media/06d7d3e54e814a01b1fe00feacb8deb7/CAD_FK45-5466_SelfAligningJointFK_Rollco.stp M10x1,25 71,50 35 20 9 22 32 6 22 2 30 19 17 12 8
Get quote
