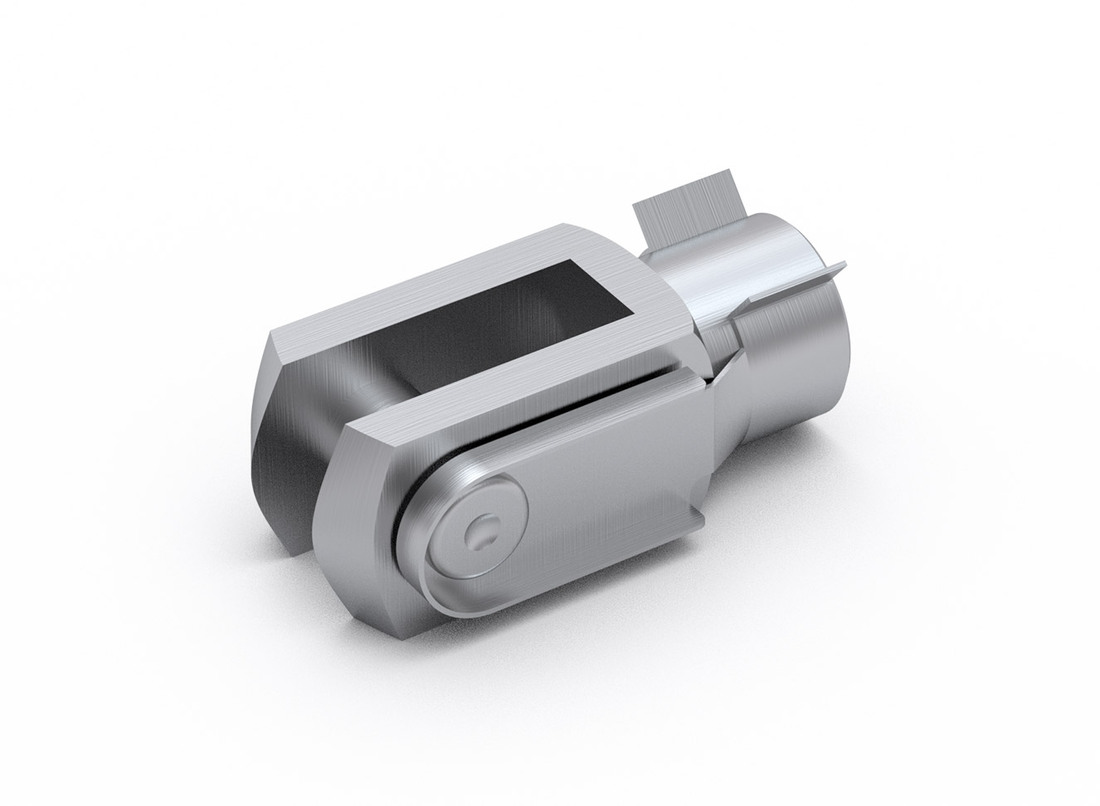

Rod clevis SG

Dimensions in mm.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Material: Galvanized steel
Designation Select all Compatible with Description Material Fmax (N) Mass (kg/m)
MCE 25 SG 25 Galvanized steel F MCE 0,02 kg
Get quote
MCE 32 SG 32 Galvanized steel F MCE 0,05 kg
Get quote
/storage/006175372956015434F9CCA658AEF613EDEA117934E8B12E937319B777C91C24/a3aea6662c914f4892fc5ab4254ffe3c/stp/media/283b7a1187e64c15b244aeed8dde66af/CAD_SG45-9186_RodClevisSG_Rollco.stp MCE 45 SG 45 Galvanized steel F MCE 0,09 kg
Get quote
Designation Select all M L1 L2 L3 L4 L5 L6 D1 D2
M6 31 (±0,5) 16 6 (B13) 12 (±0,5) 24 12 (h11) 6 (H9) 10
Get quote
M8 42 (±0,5) 22 8 (B13) 16 (±0,5) 32 16 (h11) 8 (H9) 14
Get quote
/storage/006175372956015434F9CCA658AEF613EDEA117934E8B12E937319B777C91C24/a3aea6662c914f4892fc5ab4254ffe3c/stp/media/283b7a1187e64c15b244aeed8dde66af/CAD_SG45-9186_RodClevisSG_Rollco.stp M10x1,25 52 (±0,5) 26 10 (B13) 20 (±0,5) 40 20 (h11) 10 (H9) 18
Get quote
