BKN
Support unit for end of ball screw machined accordingly

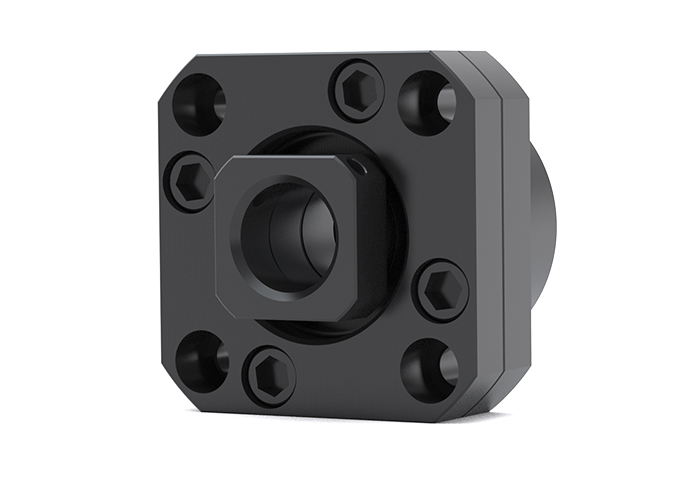

FKN
All dimensions in mm.
Using standard shaft nut type RN.
* The Maximal tightening torque of the nut should not be exceeded. It is not required, neither recommended to tighten the nut to its limits. What is mandatory is to always tighten the set screws to prescribed values, after the nut have been tighten to a distinct stop.
Read more
Using standard shaft nut type RN.
* The Maximal tightening torque of the nut should not be exceeded. It is not required, neither recommended to tighten the nut to its limits. What is mandatory is to always tighten the set screws to prescribed values, after the nut have been tighten to a distinct stop.
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | Bearing | Dynamic Permissible Axial Load (N) | Static Permissible Axial Load (N) | Max. Tightening Torque Nut (Nm)* | Tightening Torque Set Screws (Nm) | Axial Dynamic Load Capacity Ca (N) | Axial Static Load Capacity C0a (N) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | Screw dim. 0801 / 082,5 / 1002 | 706 A | 720 | 960 | 2 | 0.6 | 2670 | 2410 | ||||
|
|
|
1 | Screw dim. 1202 / 1204 | 708 A | 1020 | 1760 | 3 | 0.6 | 4410 | 4390 | ||||
|
|
|
1 | Screw dim. 1402 | 7000 A | 2000 | 3150 | 3 | 0.6 | 7040 | 7880 | ||||
|
|
|
1 | Screw dim. 1605 / 1610 / 1616 / 1632 | 7001 A | 2400 | 3600 | 7 | 1.5 | 7600 | 9000 | ||||
|
|
|
1 | Screw dim. 2005 / 2020 / 2040 | 7002 A | 2900 | 4200 | 8 | 1.5 | 8000 | 10500 | ||||
|
|
|
1 | Screw dim. 2510 | 7203 A | 4100 | 7300 | 10 | 1.5 | 14200 | 18200 | ||||
|
|
|
1 | Screw dim. 2505 / 2525 / 2550 | 7204 B | 8300 | 11800 | 17 | 1.5 | 23300 | 29400 | ||||
|
|
|
1 | Screw dim. 3205 / 3210 / 3220 / 3232 | 7205 B | 9700 | 14500 | 21 | 5.0 | 26000 | 36200 | ||||
|
|
|
1 | Screw dim. 4005 / 4010 / 4020 / 4040 | 7208 B | 14200 | 20800 | 32 | 5.0 | 36000 | 51900 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | H | K | L | S | T | Z | d1 | d2 | D3 | L1 | L2 | L4 | X | W | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
7 | 34 | 20 | 22 | 12 | 3 | 6 | 3.4 | 6.5 | 22 | 27 | 1.5 | 28 | 36 | ||||
|
|
|
9 | 35 | 23 | 28 | 14 | 5 | 8 | 3.4 | 6.5 | 25 | 31.5 | 1.5 | 35 | 43 | ||||
|
|
|
10 | 42 | 27 | 34 | 16 | 6 | 10 | 4.5 | 8 | 27 | 35 | 0.5 | 42 | 52 | ||||
|
|
|
10 | 44 | 27 | 36 | 19 | 6 | 12 | 4.5 | 8 | 27 | 35 | 0.5 | 44 | 54 | ||||
|
|
|
15 | 52 | 32 | 40 | 22 | 9 | 15 | 5.5 | 9.5 | 38 | 46 | 4 | 50 | 63 | ||||
|
|
|
22 | 61 | 45 | 50 | 24 | 12 | 17 | 6.6 | 11 | 44 | 56 | 1 | 62 | 77 | ||||
|
|
|
22 | 68 | 52 | 57 | 30 | 12 | 20 | 6.6 | 11 | 50 | 61 | 1 | 70 | 85 | ||||
|
|
|
27 | 79 | 57 | 63 | 35 | 14 | 25 | 9 | 14 | 58 | 73 | 4 | 80 | 98 | ||||
|
|
|
30 | 93 | 62 | 75 | 40 | 15 | 30 | 11 | 17.5 | 50 | 70 | -3 | 95 | 117 |
-
-
