BKN

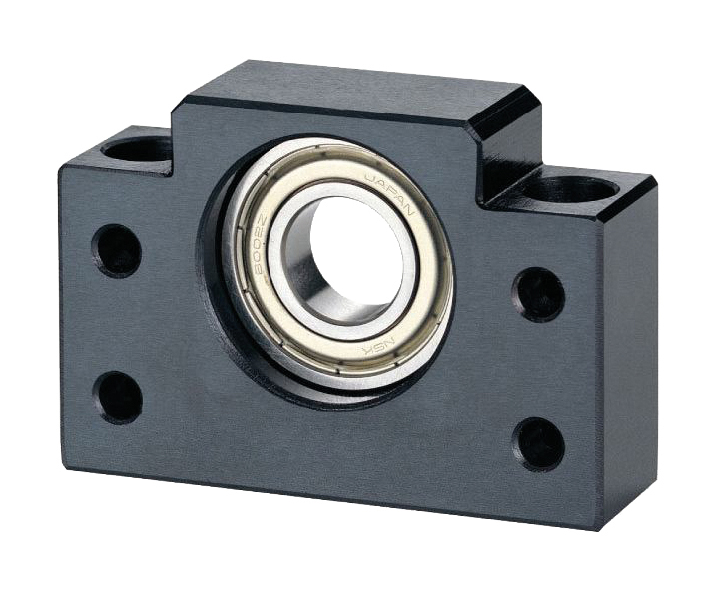

Support unit for end of ball screw machined accordingly
BFN
All dimensions in mm.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
| Designation | Select all | Lead Time * | Compatible with | d1 | d2 | L | H | E | F | K | P | Z | H1 | H2 | L2 | D3 | D4 | Bearing | W | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/4D6A3B9F754E5CC6BCAF2E0D0F531D207D4B94A48FE3CF18653C2921E650FD2E/ea93244ba72d4e859e031e5180843122/step/media/fe2d03a0989f4327a020902f38d13b99/CAD_BFN08_Support-Unit_Rollco.step | 1 | Screw dim. 1202 / 1204 | 6 | 6.6 | 14 | 32 | - | 38 | 25 | 26 | 14 | 17 | 26 | 6 | 11 | - | 606-2Z | 52 |
|
||
|
|
/storage/57833CF4711C0C3E2A1A30B236B823C590061E65EF22EBC6859644D0D176367F/eaded269aa3d46c4bbe1a547022eac5f/step/media/8e2417ab06f14675ad6cb5dc97352d58/CAD_BFN10_Support-Unit_Rollco.step | 1 | Screw dim. 1402 | 8 | 6.6 | 20 | 39 | 15 | 46 | 34 | 30 | 27.5 | 22 | 32.5 | 7 | 10.8 | 5.5 | 608-2Z | 60 |
|
||
|
|
/storage/7B5DD3F5092DB431CB7B113ED0F2C46C668CACD60C9380943A1B5A2B67EF290B/917a21f684684802a700835c7e8e40c0/step/media/e866fffa458a4705a51ea30f418e91db/CAD_BFN12_Support-Unit_Rollco.step | 1 | Screw dim. 1605 / 1610 / 1616 / 1632 | 10 | 6.6 | 20 | 43 | 18 | 46 | 34 | 30 | 31 | 25 | 32.5 | 8 | 10.8 | 5.5 | 6000-2Z | 60 |
|
||
|
|
/storage/9BCE976971ABCACBA90AE8CE94C64C90C04ABF84439B5ADE8ED472BD5D5E944A/f460d8c9ecba4f06874dd5974f99d94f/step/media/33350aa85d1c490da0c8417517185ad7/CAD_BFN15_Support-Unit_Rollco.step | 1 | Screw dim. 2005 / 2020 / 2040 | 15 | 6.6 | 20 | 48 | 18 | 54 | 40 | 35 | 31.5 | 28 | 38 | 9 | 11 | 5.5 | 6002-2Z | 70 |
|
||
|
|
/storage/E10DBD1922B90650B982F3A1F6F358069B4A56E951D041C3AFB3390EECA1AFC0/626fdaea7e744f47adff624ad881416a/step/media/b1b0d5ea2a8046a281a296a31b3641c1/CAD_BFN17_Support-Unit_Rollco.step | 1 | Screw dim. 2510 | 17 | 9 | 23 | 64 | 28 | 68 | 50 | 43 | 46.5 | 39 | 55 | 12 | 14 | 6.6 | 6203-2Z | 86 |
|
||
|
|
/storage/BFA3445ABC502D8B42168A5EEC91C11E7BD22C926B5D595F9F4DEFD740ED9189/89acff5f2f2e454ca661643aca13f4ec/step/media/6dd726116b224dc38f13faa3e777c0b0/CAD_BFN20_Support-Unit_Rollco.step | 1 | Screw dim. 2505 / 2525 / 2550 | 20 | 9 | 26 | 60 | 22 | 70 | 52 | 44 | 41.5 | 34 | 50 | 12 | 14 | 6.6 | 6004-2Z | 88 |
|
||
|
|
/storage/F54FDA32A943292BA2404F1AB17F4D73C3BDA727B7BCDEC85472DC42FF9586C1/1949a710ffb24dccab3d3d717214507a/step/media/423231169efd4904b6ef8edebad1aaa6/CAD_BFN25_Support-Unit_Rollco.step | 1 | Screw dim. 3205 / 3210 / 3220 / 3232 | 25 | 11 | 30 | 80 | 33 | 85 | 64 | 53 | 59 | 48 | 70 | 15 | 17 | 9 | 6205-2Z | 106 |
|
||
|
|
/storage/5E38F7C5327FB2C0FE90B657E0C7516A152D6D0444AC4CEAA20A66CBE8C10777/2f6840a8d52f4c24b6611d32e59a861b/step/media/29fd3622a43143569b831ff45f4301ad/CAD_BFN30_Support-Unit_Rollco.step | 1 | Screw dim. 4005 / 4010 / 4020 / 4040 | 30 | 14 | 32 | 89 | 33 | 102 | 76 | 64 | 65 | 51 | 78 | 16 | 20 | 11 | 6206-2Z | 128 |
|
||
|
|
/storage/6F5EA7425AAD63568BEA1156AE86579AD8ED2C50079B52F2EA7DC636AF8F717C/63364aacec2b49c397ec9caad9e58099/step/media/a031b0fc1eff4de0a436425928db8bd2/CAD_BFN40_Support-Unit_Rollco.step | 1 | Screw dim. 5010 / 5050 | 40 | 18 | 37 | 110 | 37 | 130 | 100 | 80 | 72.5 | 60 | 90 | 18 | 26 | 14 | 6208-2Z | 160 |
|
