Closed Type LME

Dimensions in mm.
Other types available on request.

Product Information

Designation Lead Time * Number Of Ball Rows Dynamic Load Capacity Static Load Capacity
1 4 210 N 270 N
1 4 270 N 410 N
1 4 520 N 790 N
1 5 590 N 910 N
1 5 880 N 1400 N
1 6 1000 N 1600 N
1 6 1600 N 2800 N
1 6 2200 N 4000 N
1 6 3900 N 8100 N
2 6 4800 N 10200 N

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

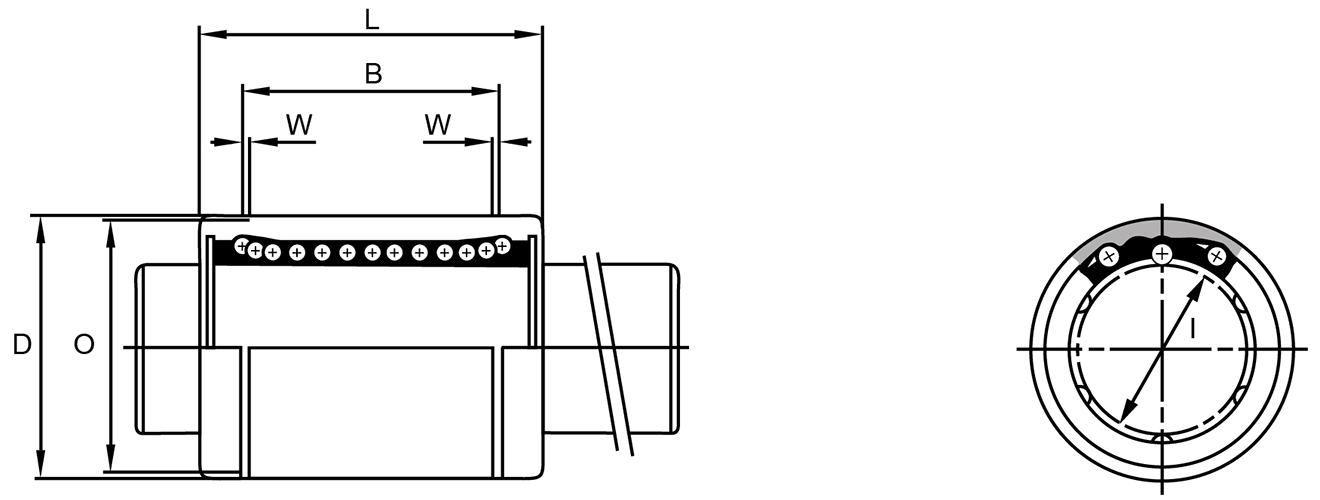

Technical Drawing
Designation B D I L O W
14,50 12 5 22 11,50 1,10
16,50 16 8 25 15,20 1,10
22,90 22 12 32 21 1,30
24,90 26 16 36 24,90 1,30
31,50 32 20 45 30,30 1,60
44,10 40 25 58 37,50 1,85
52,10 47 30 68 44,50 1,85
60,60 62 40 80 59 2,15
77,60 75 50 100 72 2,65
101,70 90 60 125 86,50 3,15
