W
Hardened precision steel shaft, Ø 5-80 mm.

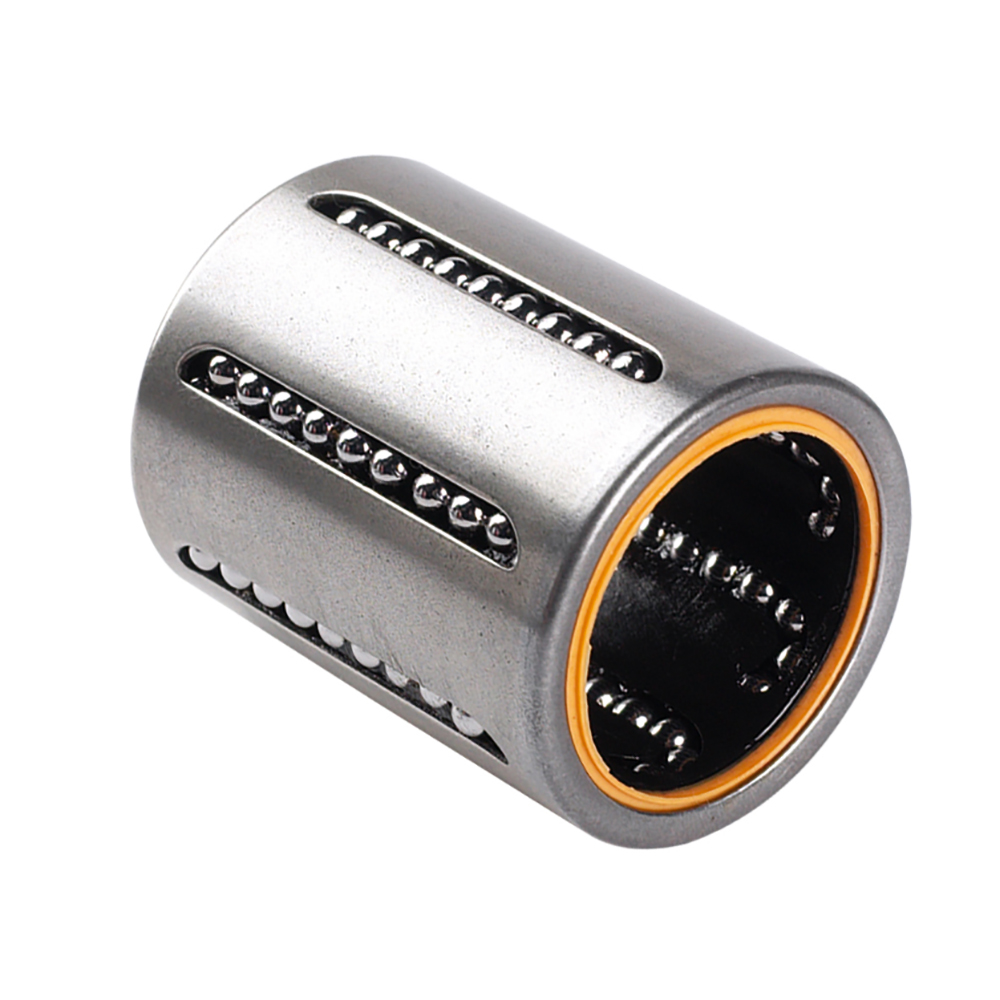

KH
Dimensions in mm.
Other types available on request.
Read more
Other types available on request.
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Dynamic Load Capacity (N) | Static Load Capacity (N) | |
|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 400 | 239 | ||||
|
|
|
1 | 435 | 280 | ||||
|
|
|
1 | 500 | 370 | ||||
|
|
|
1 | 620 | 510 | ||||
|
|
|
1 | 620 | 520 | ||||
|
|
|
1 | 800 | 620 | ||||
|
|
|
1 | 950 | 790 | ||||
|
|
|
1 | 1990 | 1670 | ||||
|
|
|
1 | 2800 | 2700 | ||||
|
|
|
1 | 4400 | 4450 | ||||
|
|
|
1 | 5500 | 6300 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | I | D | L | External Seals | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
6 | 12 | 22 | - | ||||
|
|
|
8 | 15 | 24 | - | ||||
|
|
|
10 | 17 | 26 | - | ||||
|
|
|
12 | 19 | 28 | G 12 x 19 x 3 | ||||
|
|
|
14 | 21 | 28 | G 14 x 21 x 3 | ||||
|
|
|
16 | 24 | 30 | G 16 x 24 x 3 | ||||
|
|
|
20 | 28 | 30 | G 20 x 28 x 4 | ||||
|
|
|
25 | 35 | 40 | G 25 x 35 x 4 | ||||
|
|
|
30 | 40 | 50 | G 30 x 40 x 4 | ||||
|
|
|
40 | 52 | 60 | G 40 x 52 x 5 | ||||
|
|
|
50 | 62 | 70 | - |
