Hardened precision steel shaft, Ø 5-80 mm.
LME….UUOP

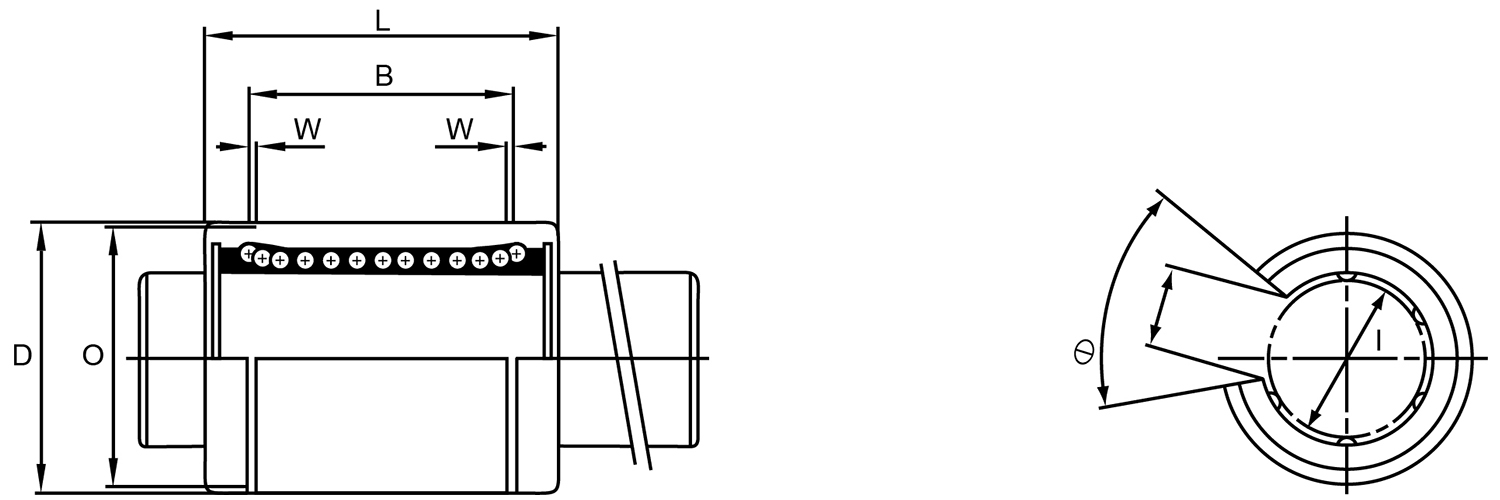

Dimensions in mm.
Other types available on request.
Read more
Other types available on request.
Product Information
Material: 100Cr6
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Dynamic Load Capacity (N) | Static Load Capacity (N) | Number Of Ball Rows | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 520 | 790 | 3 | ||||
|
|
|
1 | 590 | 910 | 4 | ||||
|
|
|
1 | 880 | 1400 | 4 | ||||
|
|
|
1 | 1000 | 1600 | 5 | ||||
|
|
|
1 | 1600 | 2800 | 5 | ||||
|
|
|
1 | 2200 | 4000 | 5 | ||||
|
|
|
1 | 3900 | 8100 | 5 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | I | D | L | W | B | O | θ | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
12 | 22 | 32 | 1.3 | 22.9 | 21 | 78° | ||||
|
|
|
16 | 26 | 36 | 1.3 | 24.9 | 24.9 | 78° | ||||
|
|
|
20 | 32 | 45 | 1.6 | 31.5 | 30.3 | 60° | ||||
|
|
|
25 | 40 | 58 | 1.85 | 44.1 | 37.5 | 60° | ||||
|
|
|
30 | 47 | 68 | 1.85 | 52.1 | 44.5 | 60° | ||||
|
|
|
40 | 62 | 80 | 2.15 | 60.6 | 59 | 60° | ||||
|
|
|
50 | 75 | 100 | 2.65 | 77.6 | 72 | 60° |
