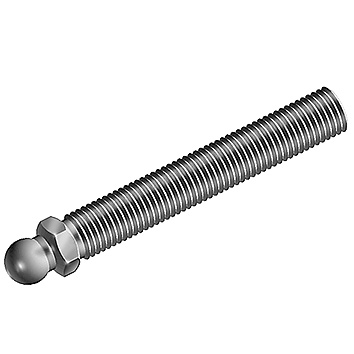

Threaded Rod for Steady Knuckle Feet for Levelling
Material: Galvanised / stainless steel
Pivoting range: ± 4°
The lock nut is contained in the package.
Pivoting range: ± 4°
The lock nut is contained in the package.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
| Designation | Select all | Lead Time * | Description | Material | MxL | H | AF | Carrying Capacity (kg) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | Threaded rod | Galvanised steel | M12 × 66 | 16 | 22 | 770 |
|
|||
|
|
2 | Threaded rod | Stainless steel | M12 × 66 | 16 | 22 | 770 |
|
|||
|
|
2 | Threaded rod | Galvanised steel | M12 × 100 | 16 | 22 | 770 |
|
|||
|
|
2 | Threaded rod | Stainless steel | M12 × 100 | 16 | 22 | 770 |
|
|||
|
|
2 | Threaded rod | Galvanised steel | M12 × 125 | 16 | 22 | 770 |
|
|||
|
|
2 | Threaded rod | Stainless steel | M12 × 125 | 16 | 22 | 770 |
|
|||
|
|
2 | Threaded rod | Galvanised steel | M12 × 150 | 16 | 22 | 770 |
|
|||
|
|
2 | Threaded rod | Stainless steel | M12 × 150 | 16 | 22 | 770 |
|
|||
|
|
/storage/7407190D44882092AC602D2EF4BB9A95125811AE2EF18CDC5FE3A17FF6E3C673/8f79642f4ef04ecb9940b0e38926fddb/STEP/media/5c65f4718a1143e984ca487643912efb/CAD_PZ5203_ThreadedRodSteadyKnuckleFeet_Rollco.STEP | 2 | Threaded rod | Galvanised steel | M16 × 66 | 16 | 22 | 1450 |
|
||
|
|
/storage/7976E5213080F0FF842175E60EDA26A73AC6264B2345A23B36BB3D629B8EFB93/eadb05576aab4a928415a35c5ff76a5d/STEP/media/aa0d9302f101411a9d3d57aec7a830ba/CAD_PZ5204_ThreadedRodSteadyKnuckleFeet_Rollco.STEP | 2 | Threaded rod | Stainless steel | M16 × 66 | 16 | 22 | 1450 |
|
||
|
|
/storage/68B3727606963C8EE31C62426744BA2A3BD8DB94ACBCF4F3E78795F8630A27A5/15acf773cd4b4c6fae61cc7ba28ecd45/STEP/media/c7942799201140ba9032b7f358ea5d73/CAD_PZ5205_ThreadedRodSteadyKnuckleFeet_Rollco.STEP | 2 | Threaded rod | Galvanised steel | M16 × 100 | 16 | 22 | 1450 |
|
||
|
|
/storage/A177EEF8271690290A6A6A19AF7506DE53415AF6104CFBD567B98ABDD195A1FD/d073e4a3edd54f1ca726006dbf11fd1c/STEP/media/6fad41a32f0845ad8a5dd5104de9dcf8/CAD_PZ5206_ThreadedRodSteadyKnuckleFeet_Rollco.STEP | 2 | Threaded rod | Stainless steel | M16 × 100 | 16 | 22 | 1450 |
|
||
|
|
2 | Threaded rod | Galvanised steel | M16 × 125 | 16 | 22 | 1450 |
|
|||
|
|
/storage/B970D40ACD02A4BC59C7BC894614B57220B48F20BBCF7D064D2C58D2AC923F04/c062350432a04a42b3f9bb77d4c4160d/STEP/media/9afde4c215b74eb7981c79c2c380cafb/CAD_PZ5208_ThreadedRodSteadyKnuckleFeet_Rollco.STEP | 2 | Threaded rod | Stainless steel | M16 × 125 | 16 | 22 | 1450 |
|
||
|
|
/storage/F649C5A17FFCE178A08CB80264BF0D9136A3F7B2115DE6C6889770C83774A5D9/8c9bf818af8e43b482bc11e706ab41c9/STEP/media/24aa8ace03b6499281a19d95f13786d6/CAD_PZ5209_ThreadedRodSteadyKnuckleFeet_Rollco.STEP | 2 | Threaded rod | Galvanised steel | M16 × 150 | 16 | 22 | 1450 |
|
||
|
|
/storage/F189461E395A0C7886BC8B23078259E14F6140EC846FAF33E4D806C2A0F3E28B/454f3fe467d44a0f9a2c474f90a38df4/STEP/media/bca2bef659484b9d855047dc6fdb64eb/CAD_PZ5210_ThreadedRodSteadyKnuckleFeet_Rollco.STEP | 2 | Threaded rod | Stainless steel | M16 × 150 | 16 | 22 | 1450 |
|
||
|
|
/storage/EF4E4F3F3D62593DC12CE0A4D85A639B0BA819C69D7B6196B5AAA2E46CDF0E6A/0209fa6ca4f54a6ea39a41e9db17da0d/STEP/media/ecf2bdec81064c0ba0d33f28aea3ba84/CAD_PZ5211_ThreadedRodSteadyKnuckleFeet_Rollco.STEP | 2 | Threaded rod | Galvanised steel | M16 × 200 | 16 | 22 | 1450 |
|
||
|
|
/storage/A0069C3DB62AB88B6E1FEF2E6D85F9B3FBE5C55205ACC2F89471ABD55ED1BF65/d0b4ec7ea7a84d20ad748fb594149c8a/STEP/media/26e65343058e4fb1abde080d70d84c5a/CAD_PZ5212_ThreadedRodSteadyKnuckleFeet_Rollco.STEP | 2 | Threaded rod | Stainless steel | M16 × 200 | 16 | 22 | 1450 |
|
||
|
|
2 | Threaded rod | Galvanised steel | M16 × 250 | 16 | 22 | 1450 |
|
|||
|
|
/storage/B0A195AF1362AC0FA44BF6CDF33FD89689E2E39B74494E79DF1CCCF86D7D5122/9ee418e1dbe44d1f94d5da355135539f/STEP/media/b58757ca1d6a42c09a1a379af894f621/CAD_PZ5214_ThreadedRodSteadyKnuckleFeet_Rollco.STEP | 2 | Threaded rod | Stainless steel | M16 × 250 | 16 | 22 | 1450 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
