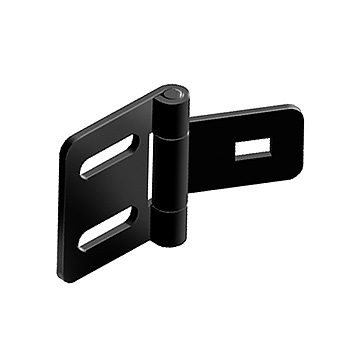

Light-Duty Metal Hinge – No Unhinging
For surface elements and aluminium profiles.
Optional adjustment by the oblong holes make this hinge fit for slot rows 5–8.
Once mounted, the surface element pivots by 180°.
Mounting material included:
3 M5 × 8 screws (ISO 7380),
1 M5 × 16 screw (DIN 903),
1 M5 nut (DIN 934),
1 5.3 washer (DIN 125) - black galvanised (RoHS-compliant)
Optional adjustment by the oblong holes make this hinge fit for slot rows 5–8.
Once mounted, the surface element pivots by 180°.
Mounting material included:
3 M5 × 8 screws (ISO 7380),
1 M5 × 16 screw (DIN 903),
1 M5 nut (DIN 934),
1 5.3 washer (DIN 125) - black galvanised (RoHS-compliant)
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
System: 30 - Slot 6; 20 - Slot 5
| Designation | Select all | Lead Time * | Material | FAmax (N) | FRmax (N) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
/storage/BE423C5D8517AFFE47B5BFC6FB0FDFCC3784C94BD4191F47BD052892DD3EDE8E/7376f9a987744a9d9db8c5fc4b5d548a/STEP/media/b47764d19d2e41439119b16ad657de57/CAD_PZ1555_LightDutyMetalHinge_Rollco.STEP | 2 | Black powder coated steel | 250 | 75 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
