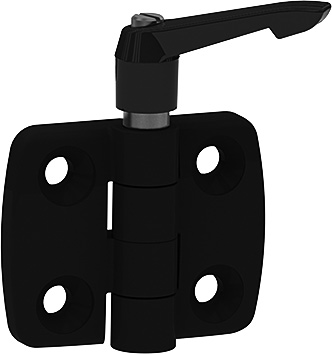

Plastic Hinge with Clamping Lever

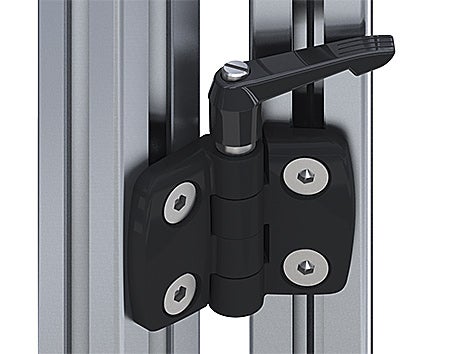

For surface elements and aluminium profiles; can be locked at any point.
Material: Hinge & clamping lever: Plastic (PA), fibreglass-reinforced
Mechanism: Galvanised steel (RoHS-compliant)
Colour: Hinge: black powder coated
On-site mount: by M6 countersunk screw at the front
Material: Hinge & clamping lever: Plastic (PA), fibreglass-reinforced
Mechanism: Galvanised steel (RoHS-compliant)
Colour: Hinge: black powder coated
On-site mount: by M6 countersunk screw at the front
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
| Designation | Select all | Lead Time * | Description | System | FAmax (N) | FRmax (N) | A1/A2 | B1/B2 | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | Hinge 30 × 30 | 30 - Slot 6 | 400 | 700 | 17.5/17.5 | 29.5/29.5 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
