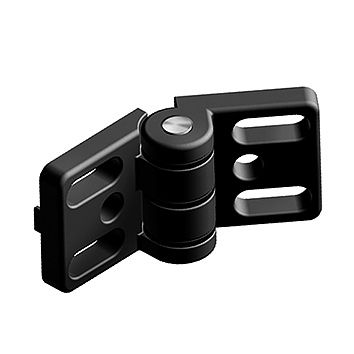

Die-Cast Zinc Hinge with Oblong Holes, No Unhinging

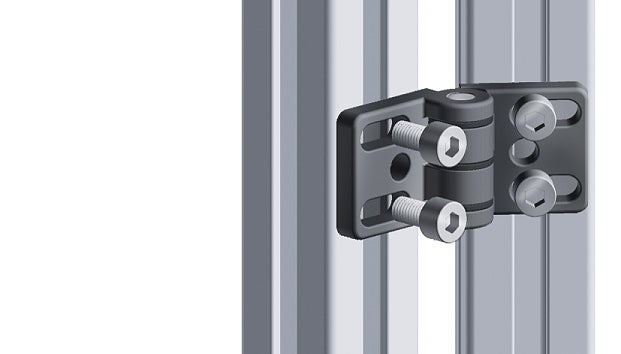

Directly links to frameless surface elements and, by creating an articulated link between two profiles,
allows surfaces with frames to connect to the base frame. No unhinging.
Material: Wing: Die-cast zinc with a black powder coat; Pin: Stainless steel
On-site mount

Note: Use a notched slot nut to ensure that the connection is ESD-ready.
Read more

Product Information

System: 30 - Slot 6
Type: Hinges
Designation Select all CAD Compare Get quote Lead Time * Description System FAmax (N) FRmax (N)
Get quote 1 Hinge 30 30 - Slot 6 250 1000
Get quote 2 Hinge 30 30 - Slot 6 350 1000

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
