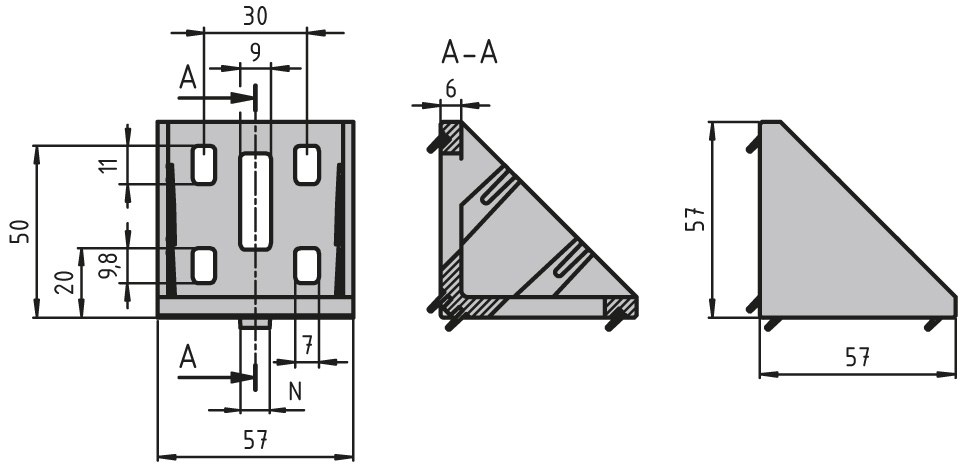

Bracket 60 × 60
Material: Bracket: Uncoated die-cast zinc
Cap: Black plastic (PA)
Slot 6 mounting material:
8× M6 slot 6 slot nuts with step
8× M6 × 14 screw (DIN 7380)
Slot 12 mounting material:
8× M8 slot 12 slot nuts with step
8× washer (DIN 125)
8× M8×28 screw (DIN7380 )
Cap: Black plastic (PA)
Slot 6 mounting material:
8× M6 slot 6 slot nuts with step
8× M6 × 14 screw (DIN 7380)
Slot 12 mounting material:
8× M8 slot 12 slot nuts with step
8× washer (DIN 125)
8× M8×28 screw (DIN7380 )
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
| Designation | Select all | Lead Time * | Description | System | ESD | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
/storage/207F1C4113DBEBCC03350579DE6B04F19136B90A1036034514A49AEC264F821A/887395fa49004a87814c720303ce9205/STEP/media/2b1eb3d896ea4ac78ec385000c6c0426/CAD_PZ5010_Bracket60x60_Rollco.STEP | 2 | Bracket 60 × 60 | 30 - Slot 6 | - |
|
||
|
|
/storage/FA5C7749B29D1390D97063973AE6F1806F4A6E79C075E1234D9611BF88F28AD0/f525d6effecd4f7a8ff9df0a5138e5f7/STEP/media/671f5fecccf94dc794e3e4c064a1f4a7/CAD_PZ5011_Bracket60x60_Rollco.STEP | 2 | Bracket 60 × 60 with mounting material and ABDK | 30 - Slot 6 | Yes |
|
||
|
|
/storage/3E6BB68C13AD908C5FAC946678C7DD84C34DF00FF73EDF422CFD288010C50844/63b413ba427c45ba95b700607ecb8c67/STEP/media/54e51f10812b402885aec9647170b520/CAD_PZ5012_Bracket60x60_Rollco.STEP | 2 | Bracket 60 × 60 silver powder coated with mounting material and ABDK | 30 - Slot 6 | - |
|
||
|
|
2 | Cap 60 × 60 | 30 - Slot 6 | - |
|
|||
|
|
2 | Bracket 60 × 60 with mounting material and ABDK | 30 - Slot 6 | Yes |
|
|||
|
|
/storage/8CA915069EAD3620E43AD87920A7C34F1168FBB1B5DB646384FC43FECF0814AF/cc3203afe1e5483d9afa8ca470125fbb/stp/media/28c589f99914406684818c954141e54d/CAD_SZ0967N_Bracket60x60_Rollco.stp | 2 | Corner Bracket Zn 30 x 30 | 30 - Slot 6 | - |
|
||
|
|
/storage/E69FBDE287ABB32C403CA9F2EF4E7A50984990924C2AAD1BE5C4302BB2C9B0AD/c046918aad6d43809ec3a8a16d0fa4d6/stp/media/70286795b06543e9aefe3a118e1d7522/CAD_SZ0965N_Bracket60x60_Rollco.stp | 2 | Corner Bracket Zn 20 x 20 | 30 - Slot 6 | - |
|
||
|
|
/storage/02A54C83A4694200F336F56ACB0EBBCF9AB877E7A353ECDB5E51E1A3EB36ADF2/d0def40540ab43329279d8afbfab751f/stp/media/f224cc472797453eac20dd93bb41e56a/CAD_SZ0964N_Bracket60x60_Rollco.stp | 2 | SZ0964N Corner bracket ZN 20x20 Set | 30 - Slot 6 | - |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
