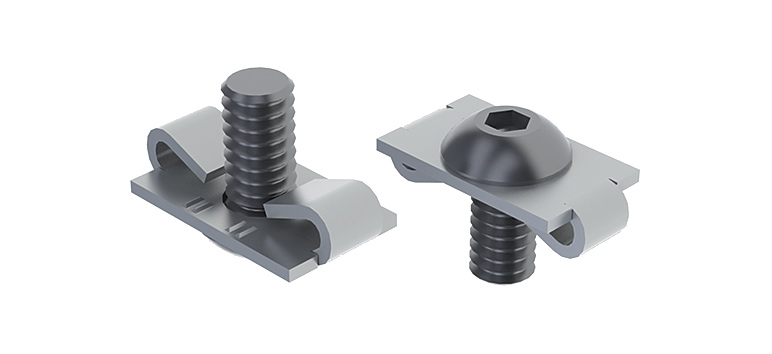

Standard Fastener

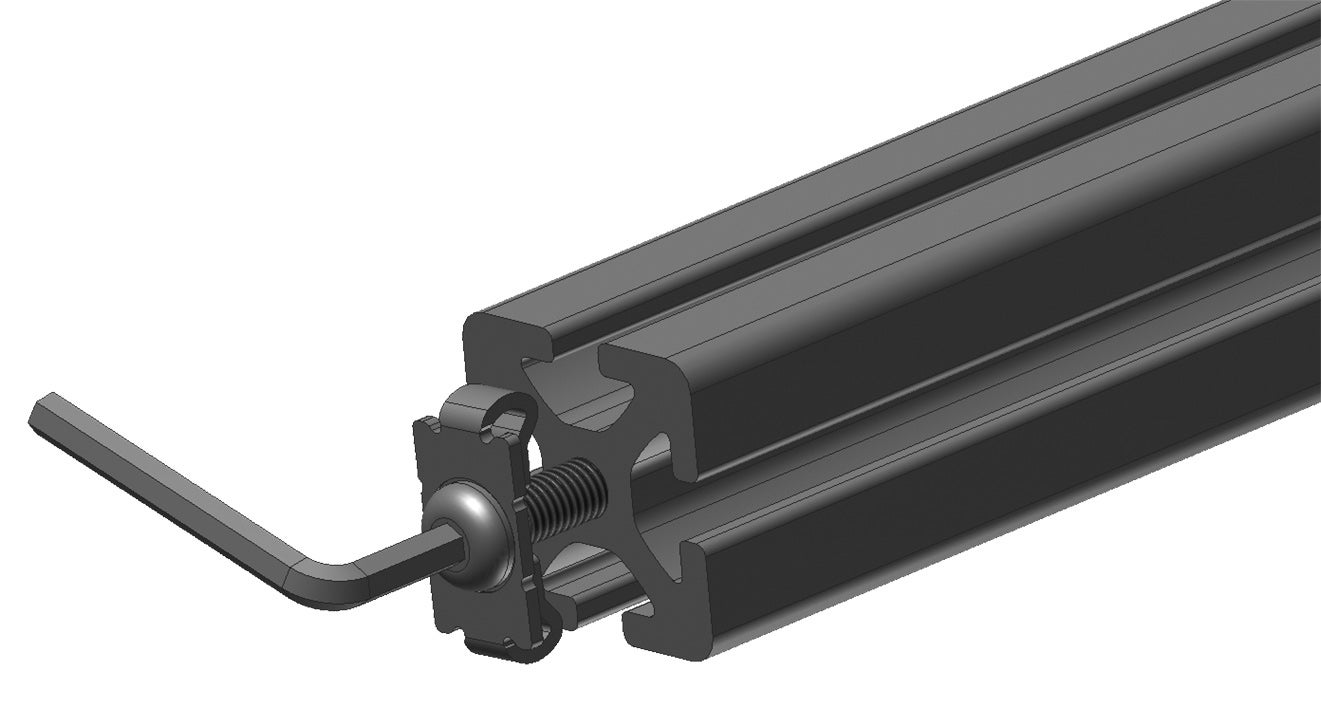

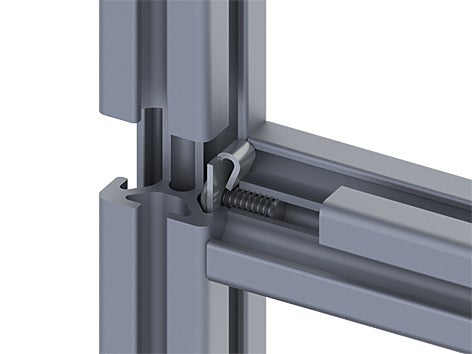

Connect two aluminium profiles. Teeth crack the anodised coating and create a reliable and conductive link.
Material Connector: Galvanised or stainless steel
Material Dummy plug: PVC, black

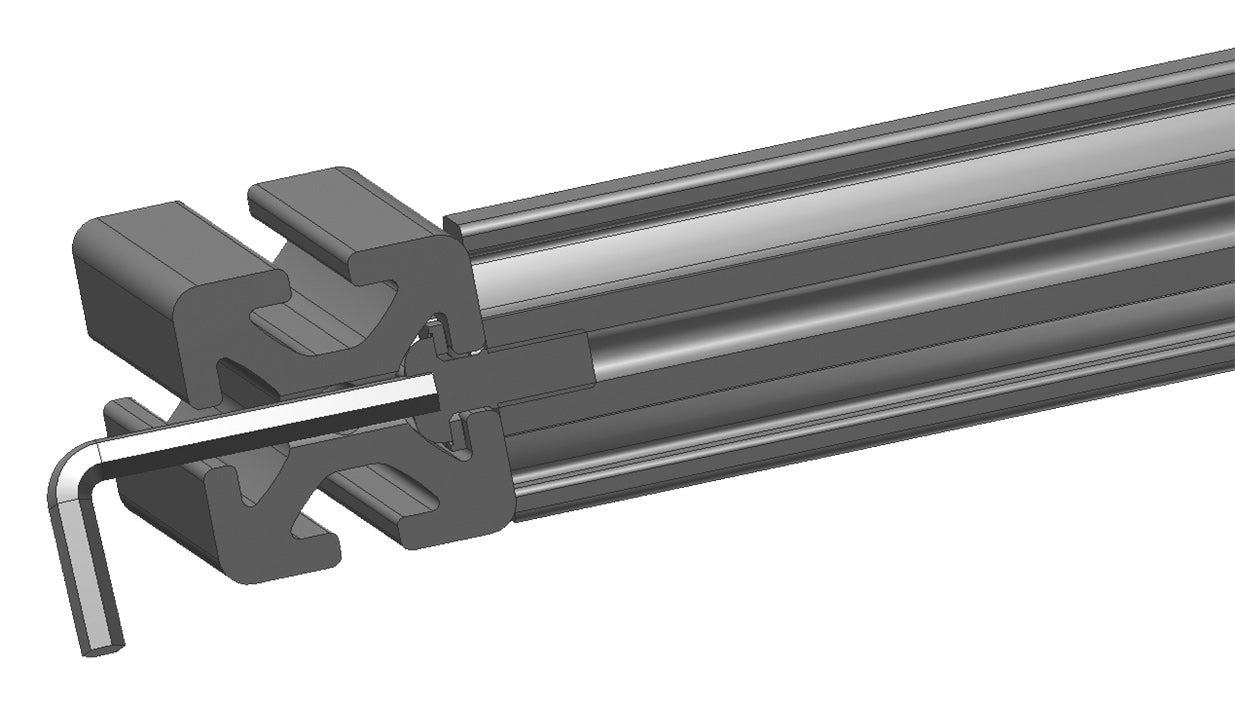

Note: Use the dummy plugs to close the drill hole in closed slots
Material Connector: Galvanised or stainless steel
Material Dummy plug: PVC, black
Note: Use the dummy plugs to close the drill hole in closed slots
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog

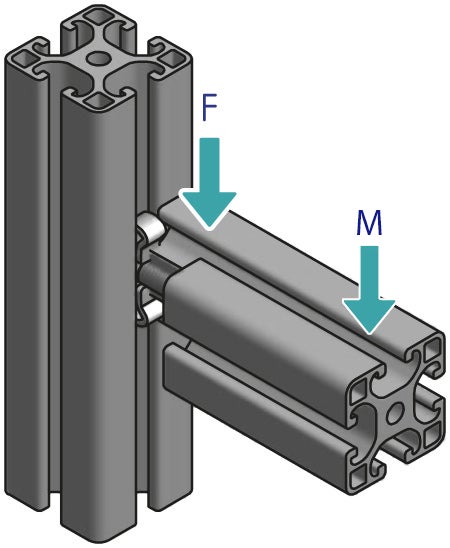

| Designation | Select all | Lead Time * | Description | System | H | M (Nm) | ESD | A x B | F (N) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | Galvanised screw connector | 20 - Slot 5 | 7.3 | 7 | Yes | 19 x 10 | 450 |
|
|||
|
|
/storage/39CB829E752B3BD55140199AF43459E9818A5DFF27594CD7A1D208DCCC126D92/912cdfcfa3044c469cdc829c50d98f94/stp/media/ddc1796eeb38401aa304756ee13b6fb9/CAD_PV4025_StandardFastener_Rollco.stp | 1 | Galvanised screw connector including ISO 7380 M5 × 12 screw | 20 - Slot 5 | 7.3 | 7 | Yes | 19 x 10 | 450 |
|
||
|
|
/storage/7324480D7DD4758ED80EDDEA3F3EEF227AC80A5B924C534E7141ADF8BBE122F3/49ca27c8ac1642f488e01a16b28e744c/STEP/media/fa93e5624f4e4f72916a43c5eabf093c/CAD_PV3025_StandardFastener_Rollco.STEP | 1 | Galvanised screw connector including ISO 7380 M6 × 14 screw | 30 - Slot 6 | 7.3 | 30 | Yes | 27.5 x 13 | 600 |
|
||
|
|
2 | Galvanised screw connector | 30 - Slot 6 | 7.3 | 30 | Yes | 27.5 x 13 | 600 |
|
|||
|
|
2 | Dummy plug for D5.5 Black | - | - | - | - | - | - |
|
|||
|
|
2 | Dummy plug for D5.5 Grey | - | - | - | - | - | - |
|
|||
|
|
2 | Dummy plug for D4.3, Grey | - | - | - | - | - | - |
|
|||
|
|
2 | Dummy plug for D4.3, Black | - | - | - | - | - | - |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
