Clamping Bracket
Simple and reliable link between intersecting profiles.
Bracket with clamping lever for variable use.
Sets to any angle.
Material: Aluminium coloured die-cast zinc

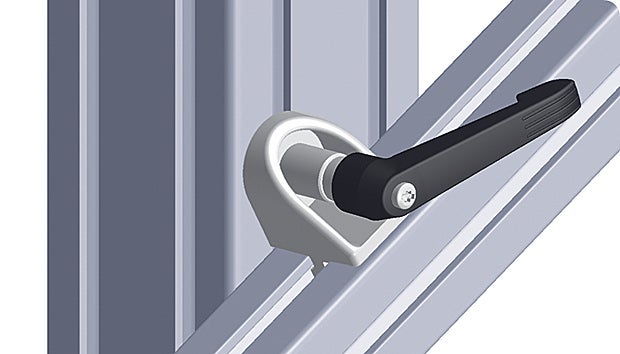

Bracket with clamping lever for variable use.
Sets to any angle.
Material: Aluminium coloured die-cast zinc
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
System: 30 - Slot 6

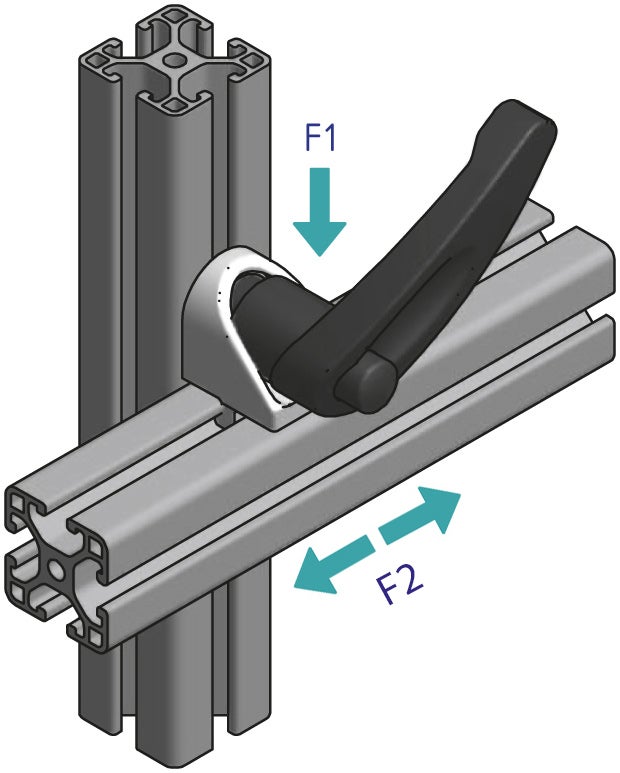

| Designation | Select all | Lead Time * | Description | System | F1 (N) | F2 (N) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/806546BC13D2D1161196242127F0688F491C52A58D2F65378E43B55BAE4ADEDE/8cd32529ef934e63998ea746ca9654d2/stp/media/77b9c0d9d71a4d9f9b1b3f560dd09d11/CAD_PZ3090_ClampingBracket_Rollco.stp | 2 | Clamping bracket 30 | 30 - Slot 6 | 800 | 200 |
|
||
|
|
/storage/D20E4BD87EDF56DCA6DA267F31A3540F4A3A043FDFC9B73424A7FA44174335B7/0bfc88fb4de74bdb83e45abfc6511c04/STEP/media/6c65e65b051b4fa99d78b75426789eb8/CAD_PZ3095_ClampingBracket_Rollco.STEP | 2 | Clamping bracket 30 with clamping lever | 30 - Slot 6 | 600 | 100 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
