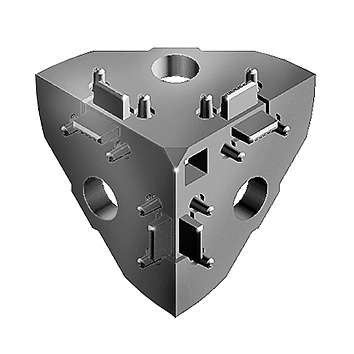

Corner Angle 30

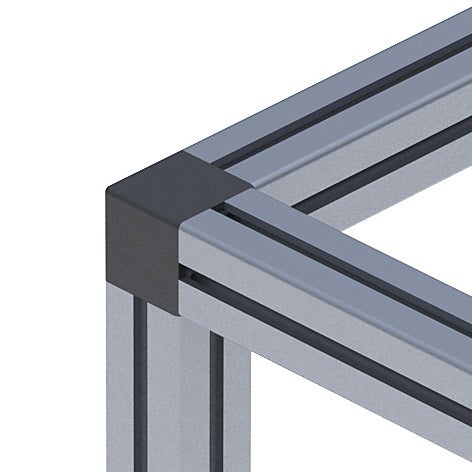

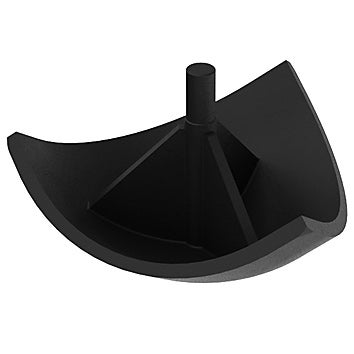

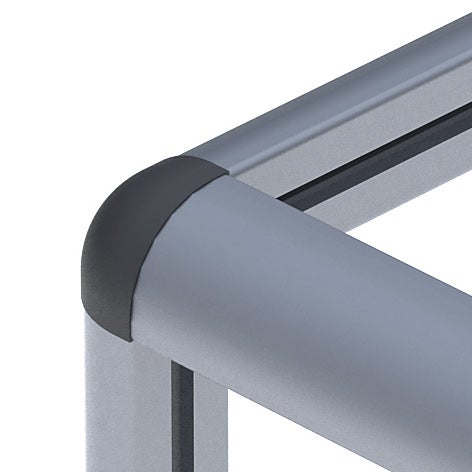

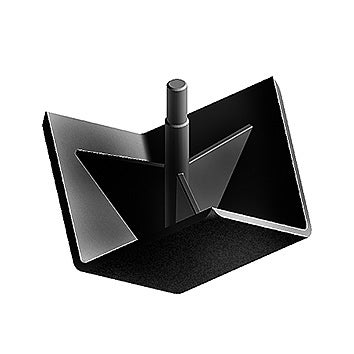

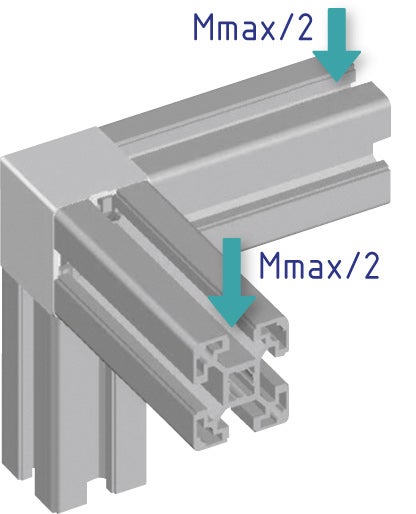

Right-angled links between up to three square or semi-circular profiles of the same cross section.Square or round caps for protection against injury and dirt.

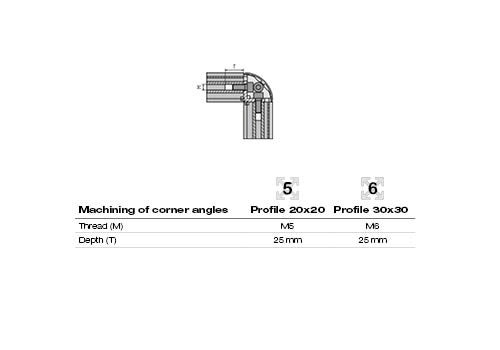

Material: Corner angle: Uncoated die-cast zinc
Caps: plastic (PA).
Note: The caps in the sets are not ESD-ready.
Material: Corner angle: Uncoated die-cast zinc
Caps: plastic (PA).
Note: The caps in the sets are not ESD-ready.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
| Designation | Select all | Lead Time * | Description | System | F (Nm) | ESD | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/6FDB2036BE4E4674D8DF107B1F749F15F49A27DD28B6CDF173B07CB4482F0DCE/06f64d761e4e4162878c30c19540821d/stp/media/3a555951f0044bb8ad35b3d5fd65b539/CAD_PZ5017_CornerAngle30_Rollco.stp | 2 | Corner angle 30 including 3 M6 × 16 screws (ISO 7380) | 30 - Slot 6 | 40 | Yes |
|
||
|
|
/storage/F7D38D99749647E45502E216632F32148F6E463022094E93BE59E55942F14546/bb1a92a11ba94bf5965b5dd086193b8b/stp/media/18f05bc66afb4caea0186f73d8245270/CAD_PV1076_CornerAngle30_Rollco.stp | 2 | Corner angle 30 including 3 M6 × 16 screws (ISO 7380) and square black cap | 30 - Slot 6 | 40 | Yes |
|
||
|
|
2 | Corner angle 30 including 3 M6 × 16 screws (ISO 7380) and square grey cap (RAL7004) | 30 - Slot 6 | 40 | Yes |
|
|||
|
|
2 | Corner angle 30 including 3 M6 × 16 screws (ISO 7380) and round black cap | 30 - Slot 6 | 40 | Yes |
|
|||
|
|
/storage/BB0BBDDE69B7BA35AD426C33C3A381BCEA4A3B1D838AD97F50C06F16A44D42FC/54baec688bbf47158e4689ed3034709f/STEP/media/52f9167511354064a6d62e56ab980d60/CAD_PA1208_CornerAngle30_Rollco.STEP | 2 | Round black cap | 30 - Slot 6 | - | - |
|
||
|
|
2 | Square black cap | 30 - Slot 6 | - | - |
|
|||
|
|
2 | Square grey cap (RAL7004) | 30 - Slot 6 | - | - |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
