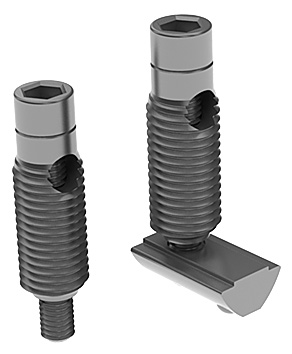

Automatic Connectors

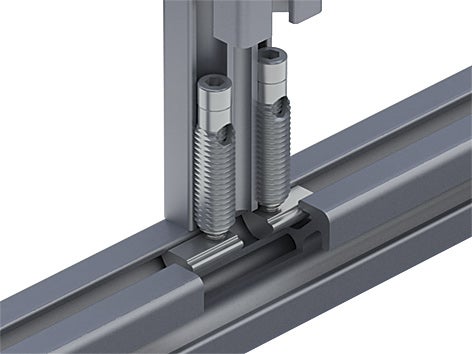

The set of automatic connectors mount quickly and easily because there is no need for modifying the
profiles. Universal force-fit link for all profiles from the same series plus the option of moving them afterwards because the connectors are fitted in a single profile only. There is no restriction on installing them in existing constructions later.
Note: We recommend that you install them in pairs – this is also what the stress data refers to.
profiles. Universal force-fit link for all profiles from the same series plus the option of moving them afterwards because the connectors are fitted in a single profile only. There is no restriction on installing them in existing constructions later.
Note: We recommend that you install them in pairs – this is also what the stress data refers to.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
| Designation | Select all | Lead Time * | Description | System | Material | M (Nm) | F (N) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/62B41CE61A930F97EFF34D5BFA5632DC37E57032D6737B8BC61A5D5703EFBDBA/dd4b74b4262a49a8b9d93042ef23510e/stp/media/12ddd5c409bd4ef4ab6d6329f9ca6a90/CAD_PV4035_AutomaticConnector_Rollco.stp | 1 | Automatic connector including slot nut with guide step | 20 - Slot 5 | Galvanised steel | 12.5 | 350 |
|
||
|
|
2 | Automatic connector including slot nut with guide step | 20 - Slot 5 | Stainless steel | 20 | 250 |
|
|||
|
|
/storage/D2051506F6DAB05EA7A4E723249CA987CB2B9427E8EDE61B86BAC7EBD3ED50F3/723c53aa664a4703aa47673edb632289/stp/media/724c612f0d294efea9ed088f8536c2f8/CAD_PV3045_AutomaticConnectors_Rollco.stp | 1 | Automatic connector including slot nut with guide step | 30 - Slot 6 | Galvanised steel | 40 | 600 |
|
||
|
|
2 | Automatic connector including slot nut with guide step | 30 - Slot 6 | Stainless steel | 30 | 400 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
