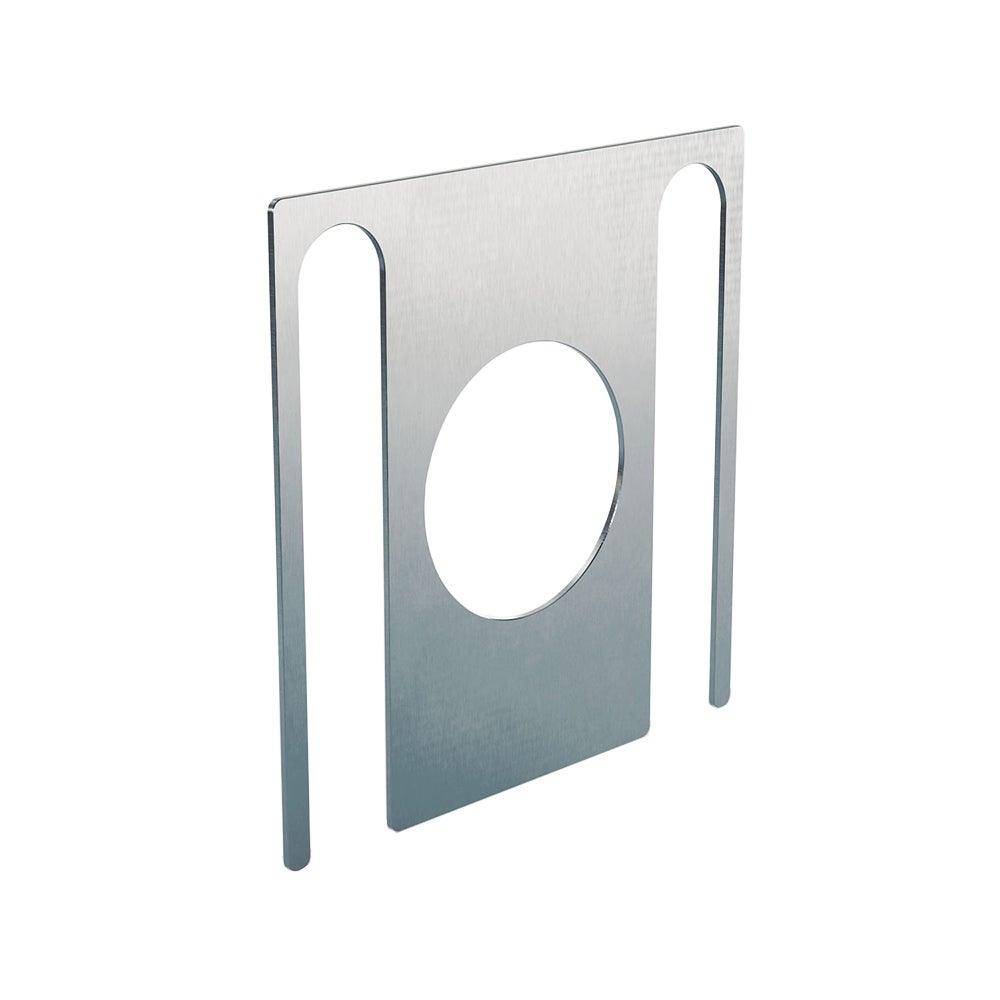

Distance Sheet BQ
Distance Sheet of steel or stainless steel
BQ---.4000

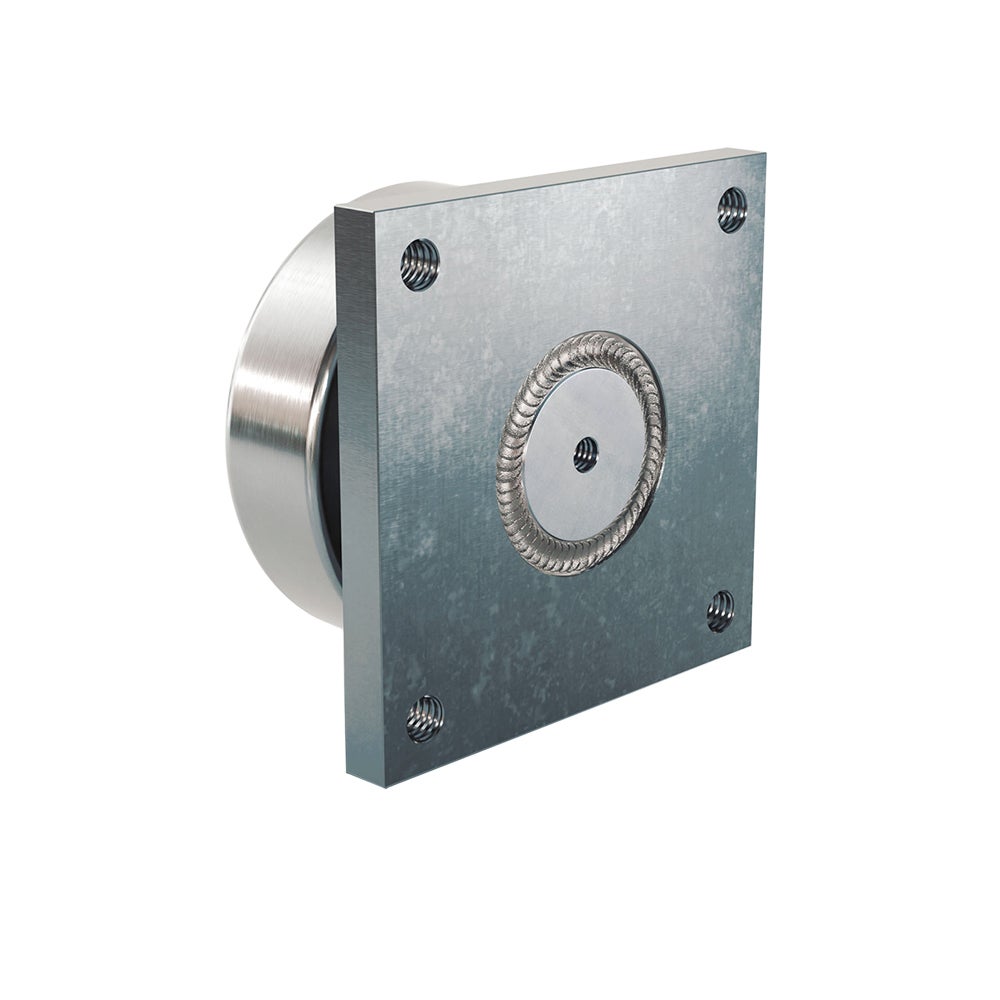

• The fixing element is welded with the respective combined roller
Order example: Roller + fixing element TR080.0390/BQ4000
Roller, adjustable, Ø 77,7 mm, INOX - welded to mounting plate 120 x 80 x 15 mm, INOX
Dimensions in mm.
Order example: Roller + fixing element TR080.0390/BQ4000
Roller, adjustable, Ø 77,7 mm, INOX - welded to mounting plate 120 x 80 x 15 mm, INOX
Dimensions in mm.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
| Designation | Select all | Lead Time * | B | H | D | C | T | E | Remark | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 60 | 28 | M8 | 40 | 10 | 52.5 | Roller: TR050.0390 |
|
||
|
|
2 | 80 | 40 | M12 | 60 | 15 | 70.1 | Roller: TR070.0390 |
|
||
|
|
2 | 80 | 39.5 | M12 | 60 | 15 | 77.7 | Roller: TR080.0390 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
TR---.0390
Stainless Roller combined, fixed with oilamide sliding block, for profile UP---.0780
