5040 - 140% Extension

All dimensions in mm.

Product Information

Download PDF

Offertförfrågan

Variant Data
Variant Measurements

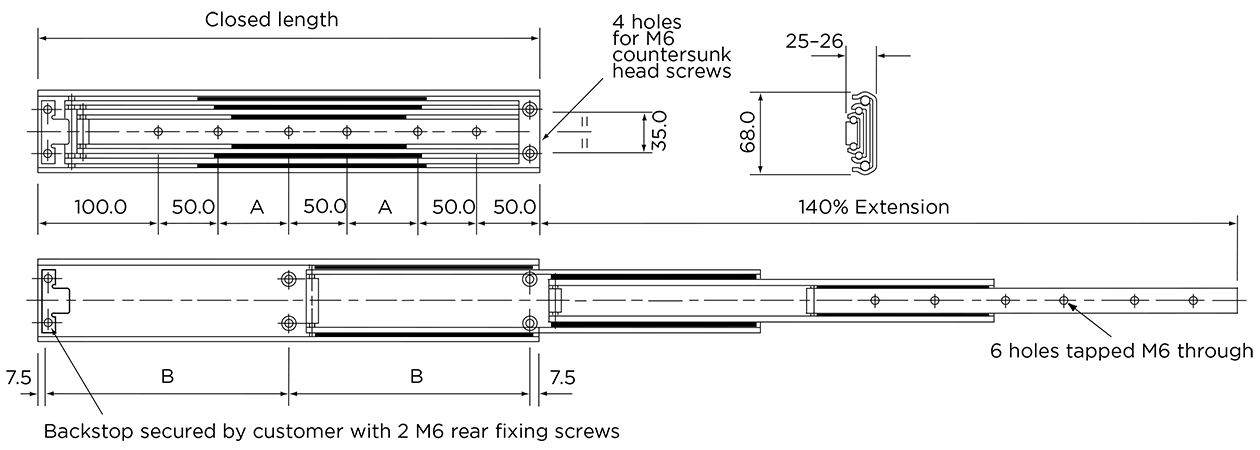

Technical Drawing

Designation	Lead Time *	Closed Length	Extension Length	Load / Pair	Number of Fixing Holes
5040-300 140%	1	300	420	1700 N	4
5040-350 140%	1	350	490	1700 N	6
5040-400 140%	1	400	560	1680 N	6
5040-450 140%	1	450	630	1630 N	6
5040-500 140%	1	500	700	1600 N	6
5040-550 140%	1	550	770	1580 N	6
5040-600 140%	1	600	840	1560 N	6
5040-650 140%	1	650	910	1400 N	6
5040-700 140%	1	700	980	1300 N	6
5040-750 140%	1	750	1 050	1200 N	6
5040-800 140%	1	800	1 120	1180 N	6
5040-850 140%	1	850	1 190	1100 N	6
5040-900 140%	1	900	1 260	1000 N	6
5040-950 140%	1	950	1 330	900 N	6
5040-1000 140%	1	1 000	1 400	800 N	6

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing

Designation	A	B
5040-300 140%	50	142,50
5040-350 140%	25	167,50
5040-400 140%	50	192,50
5040-450 140%	75	217,50
5040-500 140%	100	242,50
5040-550 140%	125	267,50
5040-600 140%	150	292,50
5040-650 140%	175	317,50
5040-700 140%	200	342,50
5040-750 140%	225	367,50
5040-800 140%	250	392,50
5040-850 140%	275	417,50
5040-900 140%	300	442,50
5040-950 140%	325	467,50
5040-1000 140%	350	492,50
