5040 - 100% Extension

All dimensions in mm.

Product Information

Technical Drawing
Designation Lead Time * Closed Length Extension Length Load / Pair Number of Fixing Holes
2 300 300 2600 N 4
2 350 350 2570 N 6
1 400 400 2450 N 6
1 450 450 2380 N 6
1 500 500 2300 N 6
1 550 550 2200 N 6
1 600 600 2100 N 6
1 650 650 2000 N 6
2 700 700 1950 N 6
2 750 750 1820 N 6
1 800 800 1780 N 6
2 850 850 1680 N 6
1 900 900 1600 N 6
2 950 950 1500 N 6
1 1 000 1 000 1400 N 6

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

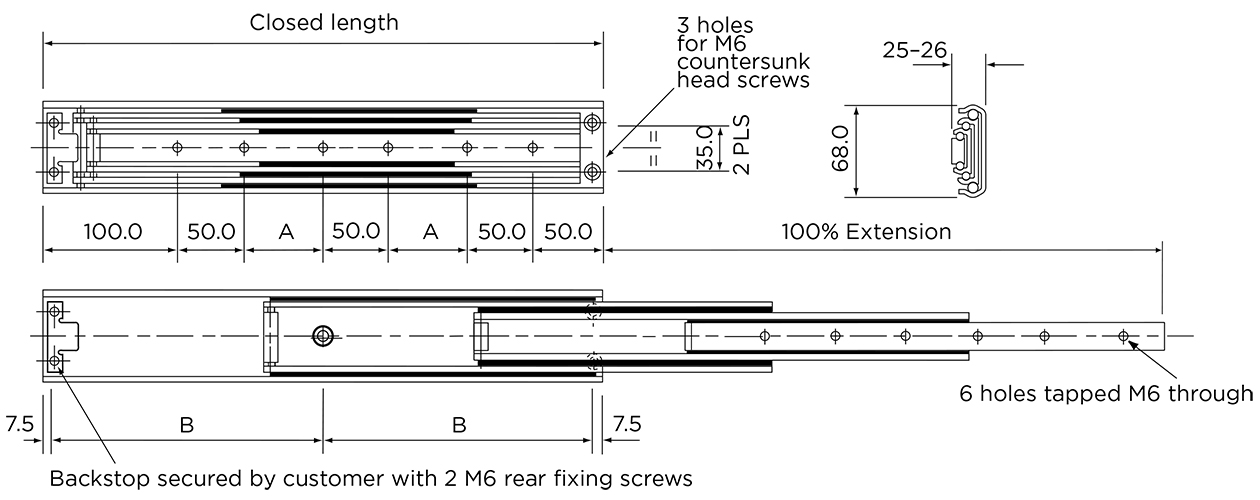

Technical Drawing
Designation A B
50 142,50
25 167,50
50 192,50
75 217,50
100 242,50
125 267,50
150 292,50
175 317,50
200 342,50
225 367,50
250 392,50
275 417,50
300 442,50
325 467,50
350 492,50
