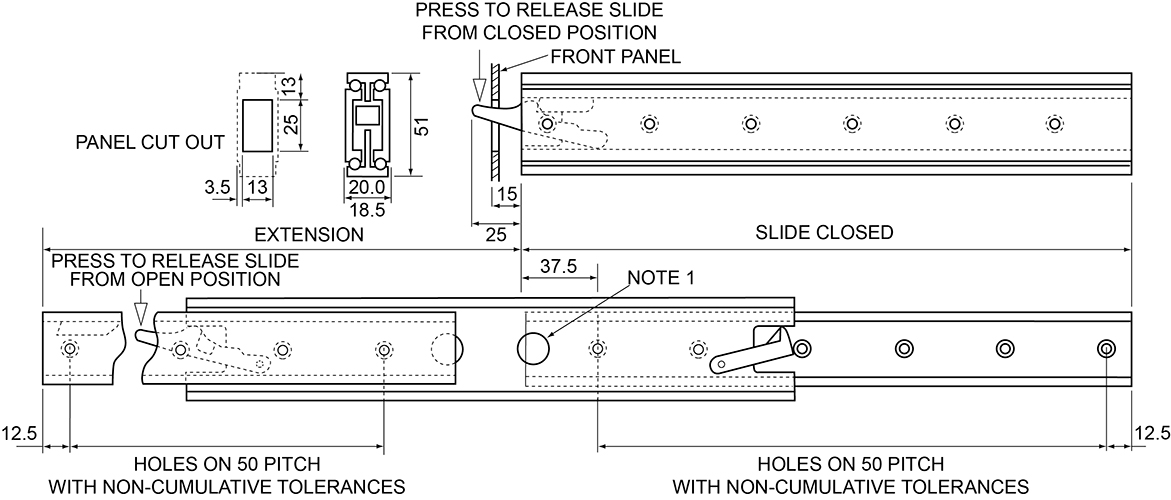

220 (Right) & 230 (Left) Lock in / Lock out - 100% Extension

Note 1: 15 mm dia. holes in centre allow easy access to fixing holes. M5 countersunk head screws to BS4183 are recommended for fixing.

Note 2: Elongated holes should be provided in either the framework or chassis to give adjustment if it is necessary for the panel to fit tight against the framework.

All dimensions in mm. Please contact us for CAD-files.

System Load Capacity value refers to a pair of rails.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Material: Aluminium 6063A TF. Anodized to ISO 7599 AA10.
Designation Select all Lead Time * Closed Length Extension Length System Load Capacity (N) Number of Fixing Holes Remark
/storage/940889F49AC305EA537DE2285D39D5B58FC24269E4E6D8B01D82E486F5D1CCD0/c33f7ceaeade4b10a665bbdd358f1056/zip/media/c5745c4c0c1744719d4b578024b2840b/CAD_220-300_TelescopicRailLight_Rollco.zip 1 300 330 550 6 Right
Get quote
/storage/36FB0BFD2199EF6F3A4B2E765F0983BEAE92116ADBFC5C84422C70B60BFD97DB/eda9138ba6f3431fa4f52ad0e0fb6fd7/zip/media/9d26f1634c6c456c9f84fbd43460d6e6/CAD_220-350_TelescopicRailLight_Rollco.zip 1 350 380 620 7 Right
Get quote
/storage/BEE66C08AF9693BAC5D734F96470F6A265C78A235A415FC07E9093C1D68B6C06/8cb1f04fc52a485caf309044424190f1/zip/media/777680555b4d4cefaab7e9a8b5629525/CAD_220-400_TelescopicRailLight_Rollco.zip 1 400 430 710 8 Right
Get quote
/storage/7BD8A6B5163B6FF70125FACC3D617F53C785CAAC6B5939A7928A456863F31D8F/cb3579f74a97495995d5cfad2e0fd48c/zip/media/368f1bad839a4bf28540b3ba12d8a512/CAD_220-450_TelescopicRailLight_Rollco.zip 1 450 480 780 9 Right
Get quote
/storage/0B0F1698910884054C42AF6A88B23BD2B396E32B7481E006CC03271E70F349BF/c83edbcea7c04675aeee520eb99fc1d1/zip/media/3c06d91219b94c1da078ffb16cb87c5d/CAD_220-500_TelescopicRailLight_Rollco.zip 1 500 530 840 10 Right
Get quote
/storage/8AB4EA01E34D161FB3E0D836EB5E4D72D115AA5F455FBCE1273DEBF3AF0E52F7/ee0d558deec44c2c97e916616e05cf45/zip/media/a211fdaa51044aacb68434a8575206dc/CAD_220-550_TelescopicRailLight_Rollco.zip 1 550 580 880 11 Right
Get quote
/storage/AC653DED0848A5797166CBF029D73655764FA39E7AC67902EB10974BE40F8070/ac2aacc6479c4bf3aec2d944c85ee3f2/zip/media/c178237b78754a8db9e5b4b98044d5cb/CAD_220-600_TelescopicRailLight_Rollco.zip 1 600 630 900 12 Right
Get quote
/storage/C98CCBBDEEA41DC00BDFBDFAD3F33D1541309788A5E7E41737EF002046155B62/85aa23e0670c45468cf76430db5ff31d/zip/media/4f37505e7c7242b090d9f978b24f7fdb/CAD_230-300_TelescopicRailLight_Rollco.zip 1 300 330 550 6 Left
Get quote
/storage/C24B74DFB23251DDF397227C046345F0EE5E8FCFD7977192AA8270032D2B7A19/393eea31488b4aaa95cec5a29c1fe153/zip/media/b9c3dc0f636a452ea376a2d260b4f480/CAD_230-350_TelescopicRailLight_Rollco.zip 2 350 380 620 7 Left
Get quote
/storage/A6E5C05415A01DE86DEB3C9AD01D346E95D070F38FE72E30B54CFDE7BEFC9562/f5b8376e084649bbba875265fddbfb6d/zip/media/ff28327234f540918346f64dab2b3144/CAD_230-400_TelescopicRailLight_Rollco.zip 1 400 430 710 8 Left
Get quote
/storage/ED965A2AA4EF3BB831627699F810EA77BE11F2DBFC3BD85DC2526F561B6EF481/8e76bcce72c24207847ba2ceb62c9e00/zip/media/4fc9f9f3cbd24791b0ee88b5982e66ac/CAD_230-450_TelescopicRailLight_Rollco.zip 1 450 480 780 9 Left
Get quote
/storage/032D64C09D941916F4F61410D5B74414C30304BE4DCF09A7A2B8C10419334212/4a0a5cedcc544badb7c30731dcbc0722/zip/media/0a98c231fb144ad78253f186fcab16ac/CAD_230-500_TelescopicRailLight_Rollco.zip 1 500 530 840 10 Left
Get quote
/storage/71FAA462727C4E15B33582EB08669B10D7938716B0B77587B68145E2DA4093B1/6ab037c26f1b4866b7b59b5c5869f5ef/zip/media/b50bd2b76a0647fc87a92770f58d7cd4/CAD_230-550_TelescopicRailLight_Rollco.zip 1 550 580 880 11 Left
Get quote
/storage/8F20C5A30FAFD7F6F56CF523C749453E53FE5751D8E1719B1FAEC235B7EB8E13/42f2503156bf456e9012cd89ae8a0bdc/zip/media/8f2f441a38ab486dababb7776a688665/CAD_230-600_TelescopicRailLight_Rollco.zip 1 600 630 900 12 Left
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
