DE..43

LOCALLY MANUFACTURED
Full extension consisting of two guide rails, combined as double-T profile, form the intermediate element, and two sliders, which as fixed and movable element form the connection to the adjacent construction. The square cross-section allows a compact size with high load capacities and low deflection, especially with radial loading. A custom design is available for extensions with double-sided strokes. The simultaneous movement of the intermediate element is implemented with a driving disc.

"There are three versions of fixing holes available for the DE series in sizes 22 to 43:"

• Version DEF with threaded holes.
• Version DEV with countersunk holes.
• Version DEM, both variants (mixed).
• Size 63 is always with threaded holes.

Custom Design DE Version D
The eccentrically located driving disc on both ends of the DE...D ensures that the intermediate element is carried along and does not remain standing at an undefined location during double-sided strokes. This custom design is available in sizes 22, 28, 35 and 43 with all three versions of the fixing holes. It is built on the standard design of the DE series, however deviates in the technical data based on the model. For CAD-files or more information please contact Rollco.

Special strokes are defined as deviations from standard stroke H. They are each available as multiples of the values in the table below. These values are dependent on the spacing of the ballcage. See Stroke modification in table.

Dimensions in mm.

System Load Capacity Radial and System Load Capacity Axial value refers to a pair of rails.
Download PDF

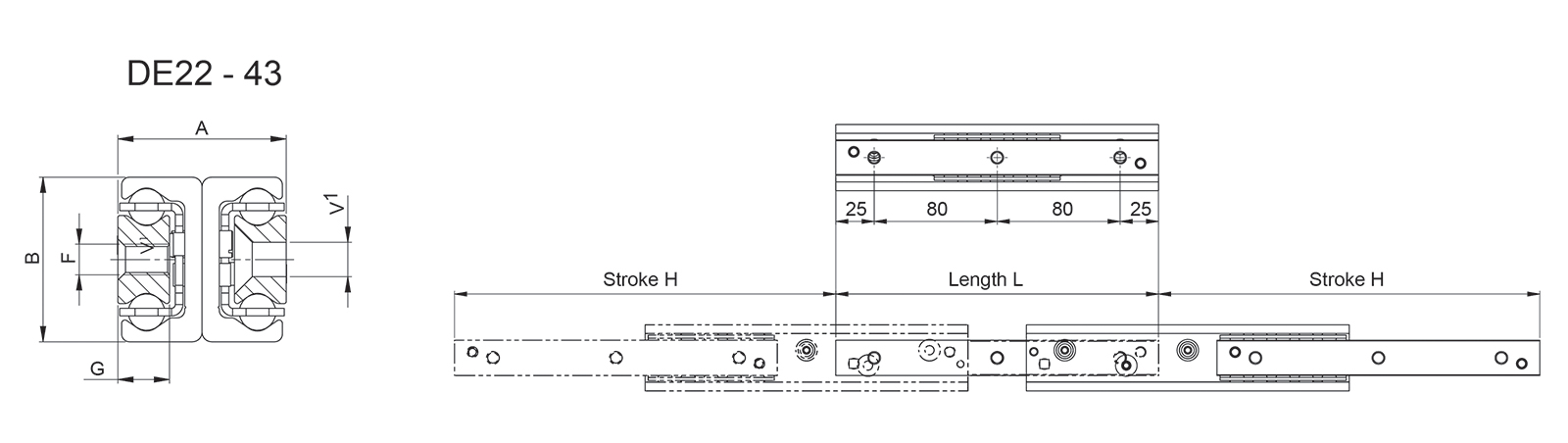

Technical Drawing
Designation Select all Lead Time * Length Stroke Number of Fixing Holes Stroke Modification Weight
2 210 246 3 30 10,5 kg/m
Compare
Get quote
2 290 316 4 30 10,5 kg/m
Compare
Get quote
2 370 416 5 30 10,5 kg/m
Compare
Get quote
2 450 486 6 30 10,5 kg/m
Compare
Get quote
2 530 556 7 30 10,5 kg/m
Compare
Get quote
2 610 626 8 30 10,5 kg/m
Compare
Get quote
2 690 726 9 30 10,5 kg/m
Compare
Get quote
2 770 796 10 30 10,5 kg/m
Compare
Get quote
2 850 866 11 30 10,5 kg/m
Compare
Get quote
2 930 966 12 30 10,5 kg/m
Compare
Get quote
2 1 010 1036 13 30 10,5 kg/m
Compare
Get quote
2 1 090 1106 14 30 10,5 kg/m
Compare
Get quote
2 1 170 1206 15 30 10,5 kg/m
Compare
Get quote
2 1 250 1276 16 30 10,5 kg/m
Compare
Get quote
2 1 330 1376 17 30 10,5 kg/m
Compare
Get quote
2 1 410 1446 18 30 10,5 kg/m
Compare
Get quote
2 1 490 1516 19 30 10,5 kg/m
Compare
Get quote
2 1 570 1586 20 30 10,5 kg/m
Compare
Get quote
2 1 650 1686 21 30 10,5 kg/m
Compare
Get quote
2 1 730 1756 22 30 10,5 kg/m
Compare
Get quote
2 1 810 1856 23 30 10,5 kg/m
Compare
Get quote
2 1 890 1936 24 30 10,5 kg/m
Compare
Get quote
2 1 970 2026 25 30 10,5 kg/m
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Additional Drawing 2
Designation Select all System Load Capacity Radial System Load Capacity Axial
1210 N 848 N
Compare
Get quote
2228 N 1560 N
Compare
Get quote
2600 N 1820 N
Compare
Get quote
3656 N 2558 N
Compare
Get quote
4750 N 2868 N
Compare
Get quote
5868 N 2600 N
Compare
Get quote
6182 N 2192 N
Compare
Get quote
6110 N 2032 N
Compare
Get quote
5694 N 1892 N
Compare
Get quote
5012 N 1666 N
Compare
Get quote
4728 N 1572 N
Compare
Get quote
4476 N 1488 N
Compare
Get quote
4044 N 1344 N
Compare
Get quote
3856 N 1282 N
Compare
Get quote
3532 N 1174 N
Compare
Get quote
3388 N 1126 N
Compare
Get quote
3256 N 1082 N
Compare
Get quote
3134 N 1042 N
Compare
Get quote
2916 N 970 N
Compare
Get quote
2818 N 936 N
Compare
Get quote
2640 N 878 N
Compare
Get quote
2560 N 850 N
Compare
Get quote
2412 N 802 N
Compare
Get quote
Technical Drawing
Designation Select all A B F G V
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
44 43 M8 13,50 M8
Compare
Get quote
