MC Clamping Element
Clamping elements are designed to be used when holding a position on the rail. Due to the height difference of the rail guide blocks, a distance plate is sometimes needed to ensure proper function of the hand clamp. Please see the selection guide for further information.
Temperature scope of application 0 - 70°C.
The basic application should be rigid enough.
Note!
The holding force value is achievable by light oily rail.
For measurement L2 the hand level is not snap in place.
Height compensation with distance plate (h) according level of runner block.
Compatible with Linear Rail HRC/ARC/ERC only.
Dimensions in mm.
Temperature scope of application 0 - 70°C.
The basic application should be rigid enough.
Note!
The holding force value is achievable by light oily rail.
For measurement L2 the hand level is not snap in place.
Height compensation with distance plate (h) according level of runner block.
Compatible with Linear Rail HRC/ARC/ERC only.
Dimensions in mm.
Ladda ner PDF
Generating PDF
+
Lägg till i PDF-katalog
Product Information
Temperature range (°C): 0 - 70
| Designation | Select all | Lead Time * | H1 | Size | Holding Force (N) | Tightening Torque (Nm) | Compatible with | Remark | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/1FEF0426B8CCE8CACE413C9573743FC32FCB3C29FA8AE3E0FE39F81546D66FAA/e365648062d2435c8ee897e447203363/zip/media/9e453f22e95f407594cb9f62e52224cc/Rollco-MC1501.zip | 1 | 19 | 15 | 1200 | 4 | HRC15, HRU15 | Use Distance Plate MP1501 HRC for HRC 15 MN |
|
||
|
|
/storage/B273DE4F3491875A1207810DE04326F53F245682BB608E80A62D52FAE14A3760/e5957da1062d4f979d762291e9c7fefd/zip/media/741b4336f8084ecebc5e6db2ac462503/Rollco-MC2001.zip | 1 | 23 | 20 | 1200 | 5 | HRC20, HRU20 | Use Distance Plate MP2001 HRC |
|
||
|
|
/storage/EA3F9CA174E3C0AEB6325B486DD6EB4414D5ECF3BAB145759A83C5E30D9570CE/575bb6201a0d463fb305cf352fe3a4e8/zip/media/6ad9b75322684949bed73fc0fab52c76/Rollco-MC2501.zip | 1 | 26 | 25 | 1200 | 7 | HRC25, HRU25 | Use Distance Plate MP2501 HRC |
|
||
|
|
/storage/B176B853325D987B69B4698A09424F8EE199AA811E342F1F998726829E05CCEE/73c2fb495abe486da08bb4545d9fed16/zip/media/175191a05e2148d39f84bdea623364b9/Rollco-MC3001.zip | 1 | 33 | 30 | 2000 | 12 | HRC30, HRU30 | Use Distance Plate MP3001 HRC for HRC 30 MN and HRC 30 ML |
|
||
|
|
/storage/5B3CF47EE816840468898146CC37EDFF82CA5C7BC8A5B3CFFA6368F722351BD1/46c374a6f19240f2815fb7beef8b479b/zip/media/48dd48e931594f1f814482e08cd0a291/Rollco-MC3501.zip | 1 | 39 | 35 | 2000 | 12 | HRC35, HRU35 | Use Distance Plate MP3501 HRC for HRC 35 MN and HRC 35 ML |
|
||
|
|
/storage/6817C43F21B383027265002D54A9FE16E49AD9FECEC7FBD3BB6E1D6B307B15A5/f99709286e804e9eb71009f1cff07242/zip/media/51c0f9c5f18344ccbb60295603fd976d/Rollco-MC4501.zip | 2 | 44 | 45 | 2000 | 15 | HRC45, HRU45 | Use Distance Plate MP4501 HRC for HRC 45 MN and HRC 45 ML |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

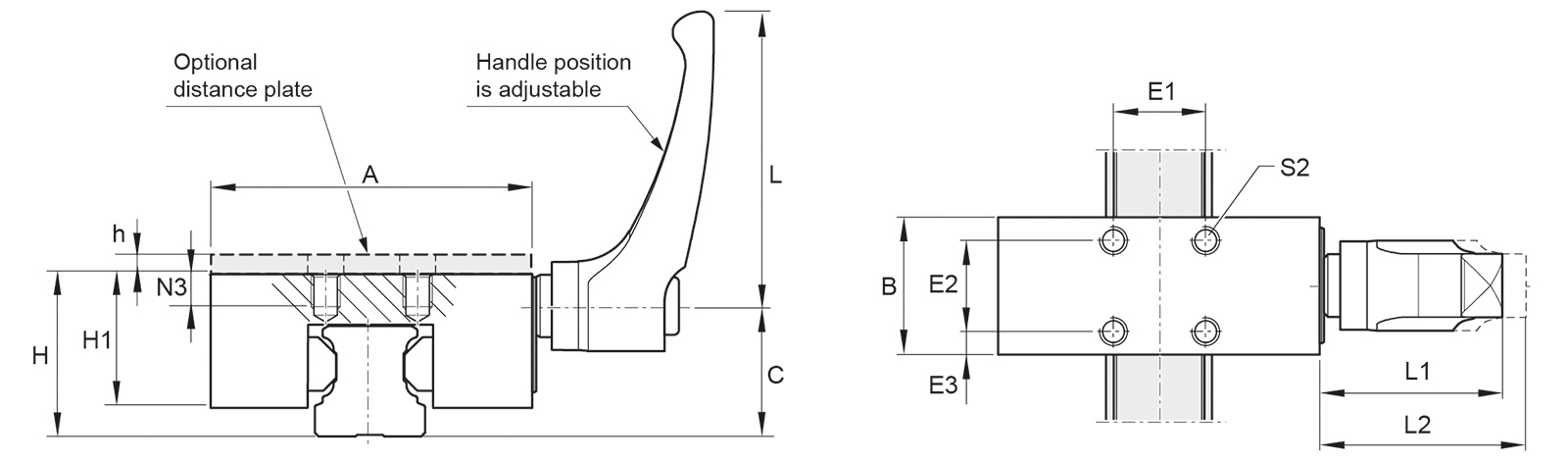

| Designation | Select all | A | B | C | E1 | E2 | E3 | H | H1 | h | L | L1 | L2 | N3 | S2 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/1FEF0426B8CCE8CACE413C9573743FC32FCB3C29FA8AE3E0FE39F81546D66FAA/e365648062d2435c8ee897e447203363/zip/media/9e453f22e95f407594cb9f62e52224cc/Rollco-MC1501.zip | 37 | 24 | 19.5 | 17.0 | 17.0 | 3.5 | 24 | 19 | 4 | 44 | 30.0 | 33.0 | 5 | M4 |
|
||
|
|
/storage/B273DE4F3491875A1207810DE04326F53F245682BB608E80A62D52FAE14A3760/e5957da1062d4f979d762291e9c7fefd/zip/media/741b4336f8084ecebc5e6db2ac462503/Rollco-MC2001.zip | 60 | 24 | 24.5 | 15.0 | 15.0 | 4.5 | 28 | 23 | 2 | 44 | 30.0 | 33.0 | 6 | M5 |
|
||
|
|
/storage/EA3F9CA174E3C0AEB6325B486DD6EB4414D5ECF3BAB145759A83C5E30D9570CE/575bb6201a0d463fb305cf352fe3a4e8/zip/media/6ad9b75322684949bed73fc0fab52c76/Rollco-MC2501.zip | 68 | 28 | 28.0 | 20.0 | 20.0 | 4.0 | 33 | 26 | 07-mar | 64 | 38.0 | 41 | 8 | M6 |
|
||
|
|
/storage/B176B853325D987B69B4698A09424F8EE199AA811E342F1F998726829E05CCEE/73c2fb495abe486da08bb4545d9fed16/zip/media/175191a05e2148d39f84bdea623364b9/Rollco-MC3001.zip | 70 | 39 | 34.0 | 22.0 | 22.0 | 8.5 | 42 | 33 | 3 | 64 | 38.0 | 41.5 | 8 | M6 |
|
||
|
|
/storage/5B3CF47EE816840468898146CC37EDFF82CA5C7BC8A5B3CFFA6368F722351BD1/46c374a6f19240f2815fb7beef8b479b/zip/media/48dd48e931594f1f814482e08cd0a291/Rollco-MC3501.zip | 96 | 39 | 38.0 | 24.0 | 24.0 | 7.5 | 48 | 39 | 7 | 78 | 46.5 | 50.5 | 10 | M8 |
|
||
|
|
/storage/6817C43F21B383027265002D54A9FE16E49AD9FECEC7FBD3BB6E1D6B307B15A5/f99709286e804e9eb71009f1cff07242/zip/media/51c0f9c5f18344ccbb60295603fd976d/Rollco-MC4501.zip | 92 | 44 | 47.0 | 26.0 | 26.0 | 9.0 | 60 | 44 | 10 | 78 | 46.5 | 50.5 | 14 | M10 |
|
| Designation | Select all | Weight (kg) | |||
|---|---|---|---|---|---|
|
|
/storage/1FEF0426B8CCE8CACE413C9573743FC32FCB3C29FA8AE3E0FE39F81546D66FAA/e365648062d2435c8ee897e447203363/zip/media/9e453f22e95f407594cb9f62e52224cc/Rollco-MC1501.zip | 0.1 |
|
||
|
|
/storage/B273DE4F3491875A1207810DE04326F53F245682BB608E80A62D52FAE14A3760/e5957da1062d4f979d762291e9c7fefd/zip/media/741b4336f8084ecebc5e6db2ac462503/Rollco-MC2001.zip | 0.2 |
|
||
|
|
/storage/EA3F9CA174E3C0AEB6325B486DD6EB4414D5ECF3BAB145759A83C5E30D9570CE/575bb6201a0d463fb305cf352fe3a4e8/zip/media/6ad9b75322684949bed73fc0fab52c76/Rollco-MC2501.zip | 0.28 |
|
||
|
|
/storage/B176B853325D987B69B4698A09424F8EE199AA811E342F1F998726829E05CCEE/73c2fb495abe486da08bb4545d9fed16/zip/media/175191a05e2148d39f84bdea623364b9/Rollco-MC3001.zip | 0.64 |
|
||
|
|
/storage/5B3CF47EE816840468898146CC37EDFF82CA5C7BC8A5B3CFFA6368F722351BD1/46c374a6f19240f2815fb7beef8b479b/zip/media/48dd48e931594f1f814482e08cd0a291/Rollco-MC3501.zip | 0.87 |
|
||
|
|
/storage/6817C43F21B383027265002D54A9FE16E49AD9FECEC7FBD3BB6E1D6B307B15A5/f99709286e804e9eb71009f1cff07242/zip/media/51c0f9c5f18344ccbb60295603fd976d/Rollco-MC4501.zip | 0.98 |
|
-
-
