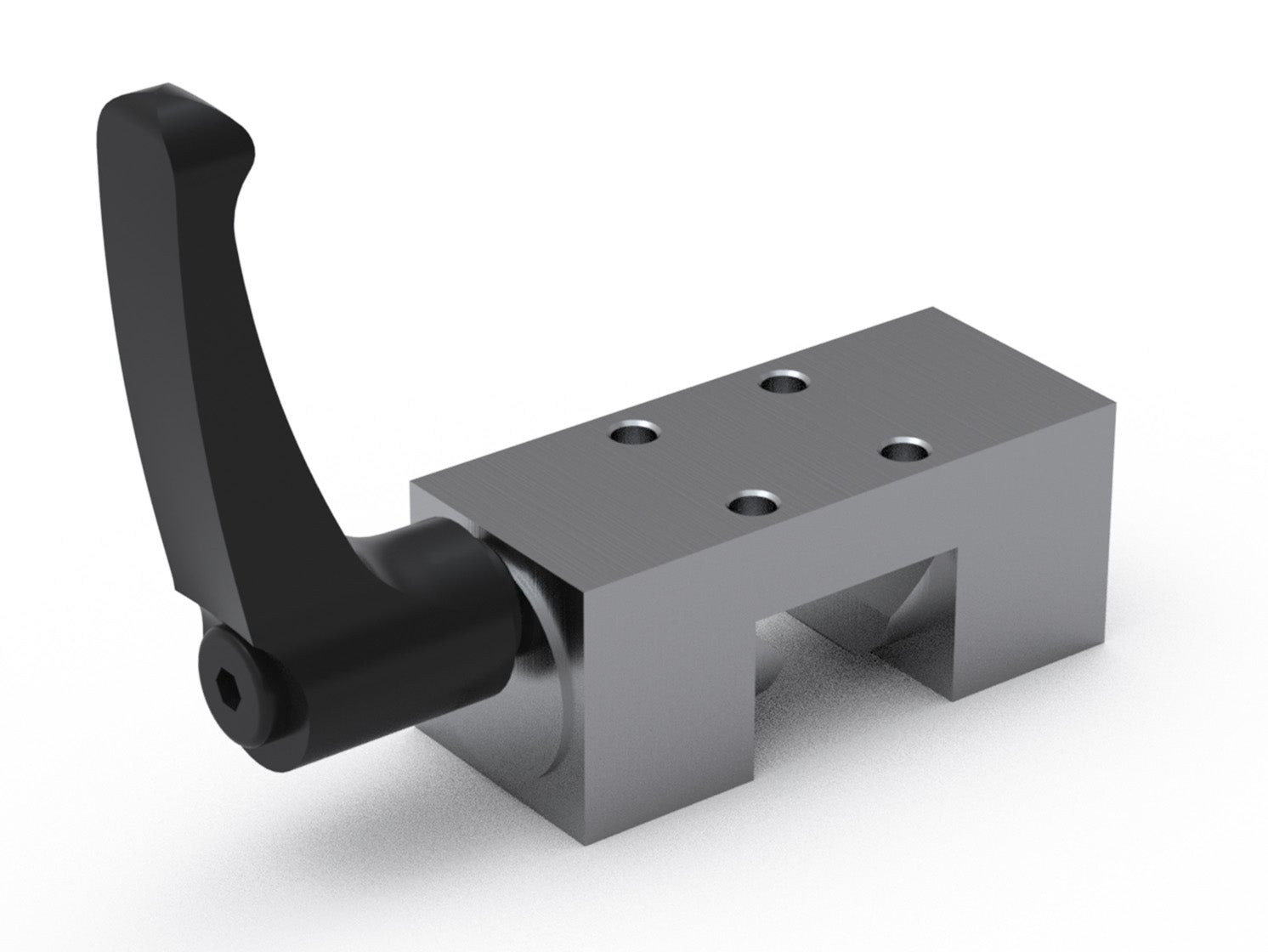

HK Clamping Element
Manually operated clamping element. Compatible with Linear Rail HRC/ARC/ERC.

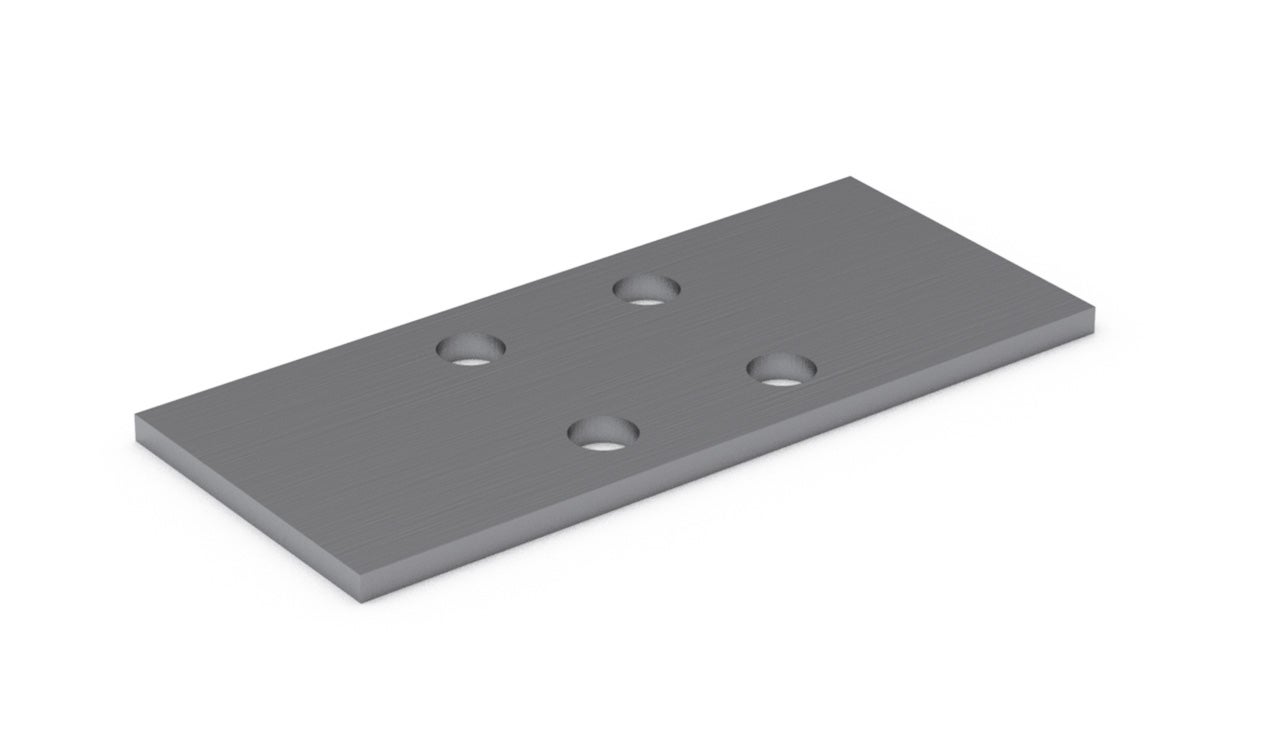

Adapter Plate for HK Clamping Element
Because of the height difference of different rail guide blocks and to ensure the proper function of the HK Clamping Elements, the use of adapter plates is sometimes needed. See document "Selection of Clamping Elements" for individual block types and whether an adapter plate is needed.
Dimensions in mm.
Read more
Dimensions in mm.
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Weight (kg) | |
|---|---|---|---|---|---|---|---|
|
|
|
1 | 0.033 | ||||
|
|
|
2 | 0.062 | ||||
|
|
|
2 | 0.08 | ||||
|
|
|
2 | 0.2 | ||||
|
|
|
2 | 0.39 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | A | B | S2 | E1 | E2 | E3 | h | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
47 | 24 | M4 | 17 | 17 | 3.5 | 4 | ||||
|
|
|
70 | 30 | M6 | 20 | 20 | 5 | 4 | ||||
|
|
|
90 | 39 | M6 | 22 | 22 | 8.5 | 3 | ||||
|
|
|
100 | 39 | M8 | 24 | 24 | 7.5 | 7 | ||||
|
|
|
120 | 44 | M10 | 26 | 26 | 9 | 10 |
