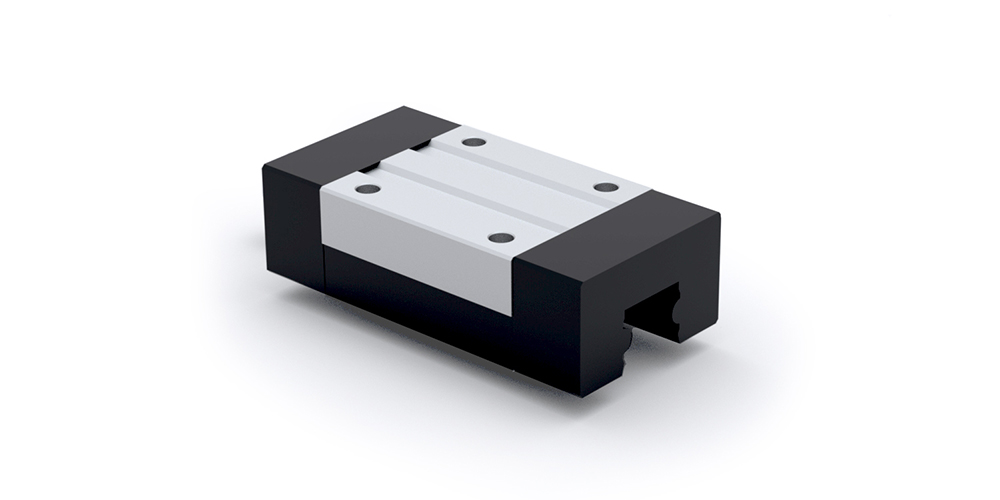

Narrow Block Type GNS

This light-weight narrow runner block corresponds to the structure of the flanged runner block from the
previous page. It’s only slimmer and designed for mounting from above.
The mounting dimensions are also identical to the steel guiding rails and in accordance to DIN 645-1.
In this way you can easily change the installed constructions.
Note!
Determination of the dynamic load capacities and torques is based on a travel life of 100.000 m.
Due to the mechanical operations of guide rails and runner block with their different materials, is not possible to clearly indicate a static load rating. In this case never exceed Max permissible load or Static moment Mr0. Otherwise malfunction or damage may occur.

Dimensions in mm.

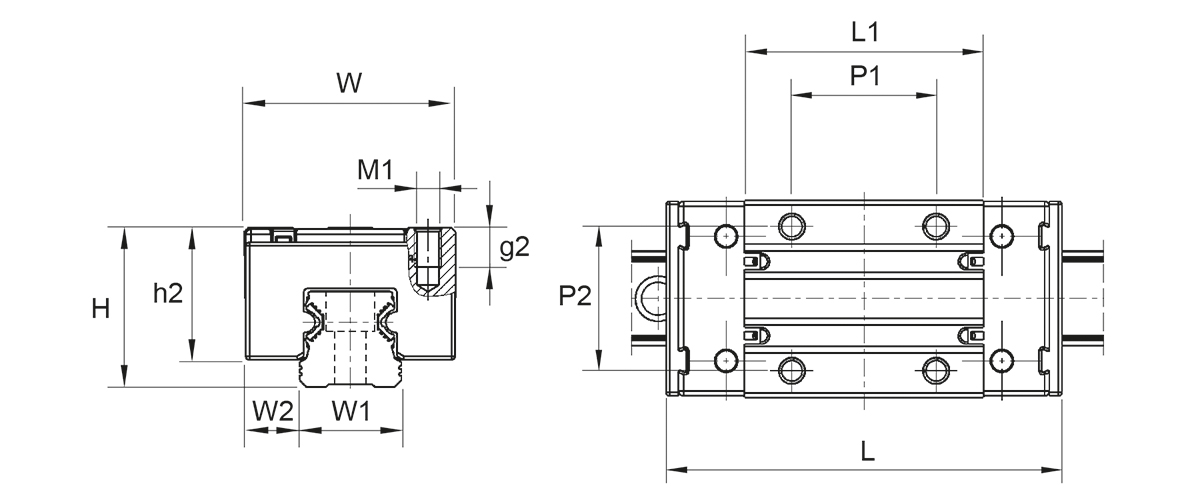

Technical Drawing
Designation System Height (H) System Width (W) Block Length (L) W1 M1 P1 P2 g2
24 34 64 15 M4 26 26 6
30 44 85,90 20 M5 36 32 -
36 48 96 23 M6 35 35 -
Technical Drawing
Designation h2 L1 M1 T W1 W2
19,80 37,80 M4 - 15 9,50
24,70 51,50 M5 7,50 20 12
29,90 58 M6 9 23 12,50
Additional Drawing 1

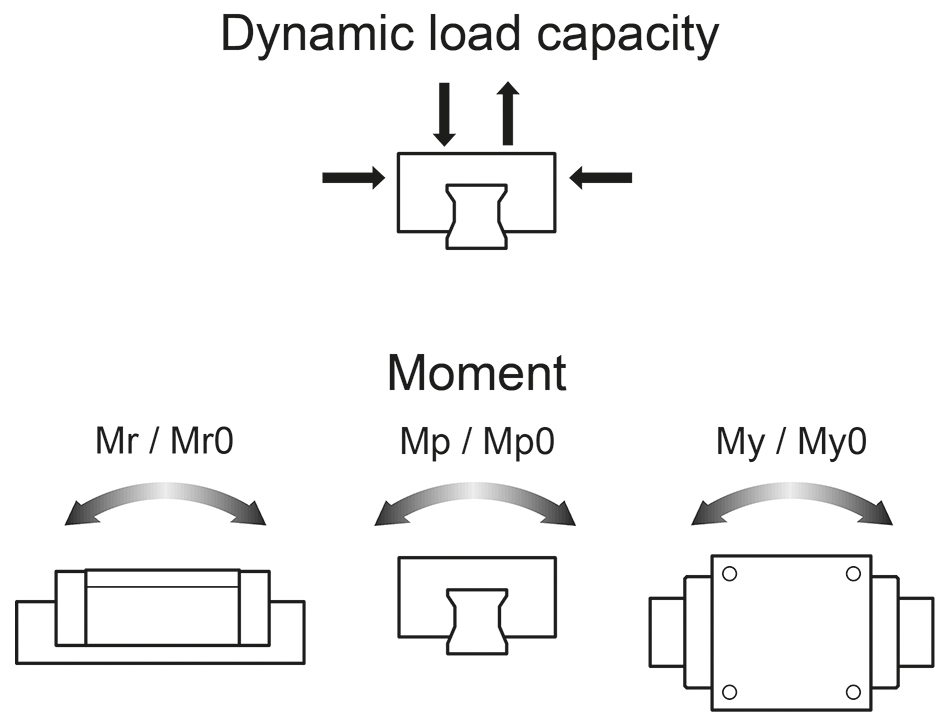

Designation Dynamic Load Capacity C Dynamic Moment Mr Dynamic Moment Mp Dynamic Moment My Static Moment Mr0 Static Moment Mp0 Static Moment My0 Max. Permissible Load Fmax Weight Block
5000 KN 36 Nm 29 Nm 29 Nm 14 Nm 12 Nm 12 Nm 2000 N 0,07 kg
11000 KN 101 Nm 89 Nm 89 Nm 40 Nm 35 Nm 35 Nm 4400 0,15 kg
16000 KN 165 Nm 147 Nm 147 Nm 66 Nm 59 Nm 59 Nm 6400 0,22 kg
