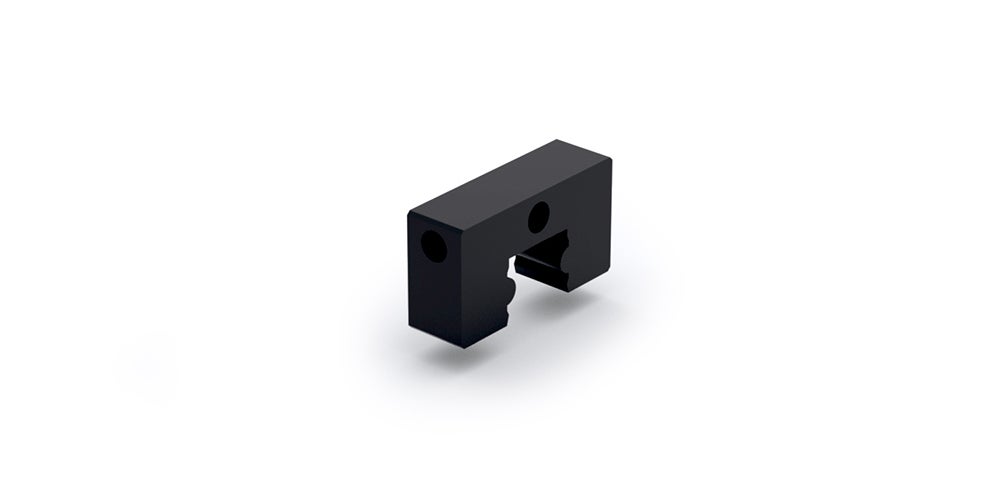

Lube Unit with Sealing Function
For continuous lubrication and front seal for dirty environments
Seal Unit
All runner blocks are delivered with greased seal units. The basic material is POM.
Instructions for the replacement:
• Pull exchanged seal unit up.
• Insert the new seal unit.
• Push the runner block back on the guide rail.
• Align the seal unit vertically to the guide rail.
Note! Assembly with mounted carriage is not possible.
Dimensions in mm.
Instructions for the replacement:
• Pull exchanged seal unit up.
• Insert the new seal unit.
• Push the runner block back on the guide rail.
• Align the seal unit vertically to the guide rail.
Note! Assembly with mounted carriage is not possible.
Dimensions in mm.
