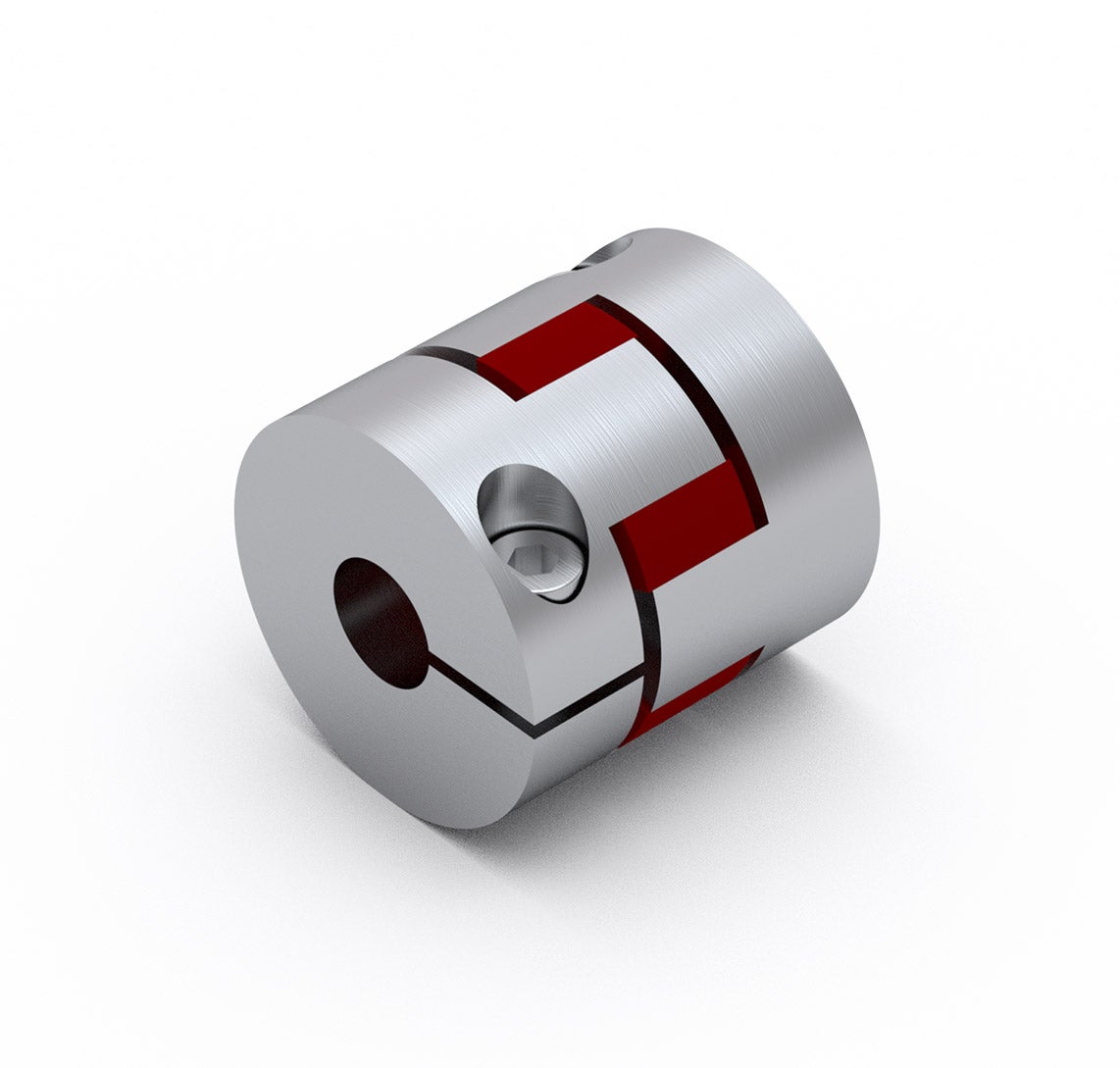

Couplings
For Mini Linear Units MGBS & MGTB
Motor adapter VK
For Mini Linear Units MGBS & MGTB.
The standard motor adapter VK is made out of one piece. It is important to note when ordering it, that the coupling is included.
Note! If you order a custom motor adapter VK for a non-standard motor the coupling is not included.
□ = Square cross section
Dimensions in mm.
The standard motor adapter VK is made out of one piece. It is important to note when ordering it, that the coupling is included.
Note! If you order a custom motor adapter VK for a non-standard motor the coupling is not included.
□ = Square cross section
Dimensions in mm.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
| Designation | Select all | Lead Time * | Compatible with | Motor Type | Motor Size (mm) | Motor Standard | Motor Shaft Length L1 Min. (mm) | Motor Shaft Length L1 Max. (mm) | Motor Shaft Diameter (mm) | Motor Mounting Holes ØO × H (mm) | Mass (kg) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/282AE8292FA9ED3F261B72F81FBFC59DF3D5A6A5A135EF97E7916555FBF34B4F/b663e5796f204cddb9748b58cf005fb7/STP/media/fab3fb328995447e909d7d72de48014a/CAD_VK32-T1-108257_MotorAdapterVK_Rollco.STP | 2 | MGBS/MGTB 32, Coupling EKL 2 | Stepper | 28 | NEMA 11 | 15 | 20 | 5.0 | M2.5 × 2.5 (min.) | 0.06 |
|
||
|
|
/storage/54F817EBBD5492AE8582283FA32B5A390BC99DA29191C4B4A39011553CBE2DCC/306fbad111954cb282d1f9d4aceed8c0/STP/media/12604b8e408f4799adcb7b8f6a881050/CAD_VK32-T2-108258_MotorAdapterVK_Rollco.STP | 2 | MGBS/MGTB 32, Coupling EKL 2 | Stepper | 42 | NEMA 17 | 20 | 25 | 5.0 | M3 × 4.5 (min.) | 0.09 |
|
||
|
|
/storage/2F0074BB93FCB33849B7E01125D96B0000F96EDA08347E72F2AE76C6B2CF8F69/75fc5f7457524db5b4d7e4c0cfbbd81f/STP/media/10406debcaa44f15950c993ec06f3c2b/CAD_VK45-T1-108259_MotorAdapterVK_Rollco.STP | 2 | MGBS/MGTB 45, Coupling EKL 5 | Stepper | 42 | NEMA 17 | 20 | 25 | 6.35 | M3 × 4.5 (min.) | 0.14 |
|
||
|
|
/storage/B98071ADC9327B3EC904F118B6AFD63FEEE1556258D32DAEF18A46518761B3AF/27e576b79a6847eebc16e55fef3fac5d/STP/media/72fe88ac91284a8db8f01879412e02fa/CAD_VK45-T2-108260_MotorAdapterVK_Rollco.STP | 2 | MGBS/MGTB 45, Coupling EKL 5 | Stepper | 56 | NEMA 23 | 20 | 25 | 6.35 | 5 × 9.0 (max.) | 0.18 |
|
||
|
|
2 | MGBS/MGTB 60, Coupling EKL 10 | Stepper | 56 | NEMA 23 | 20 | 25 | 6.35 | 5 × 9.0 (max.) | 0.36 |
|
|||
|
|
2 | MGBS/MGTB 60, Coupling EKL 10 | Stepper | 86 | NEMA 34 | 32 | 37 | 14 | 7 × 10.0 (max.) | 0.58 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
