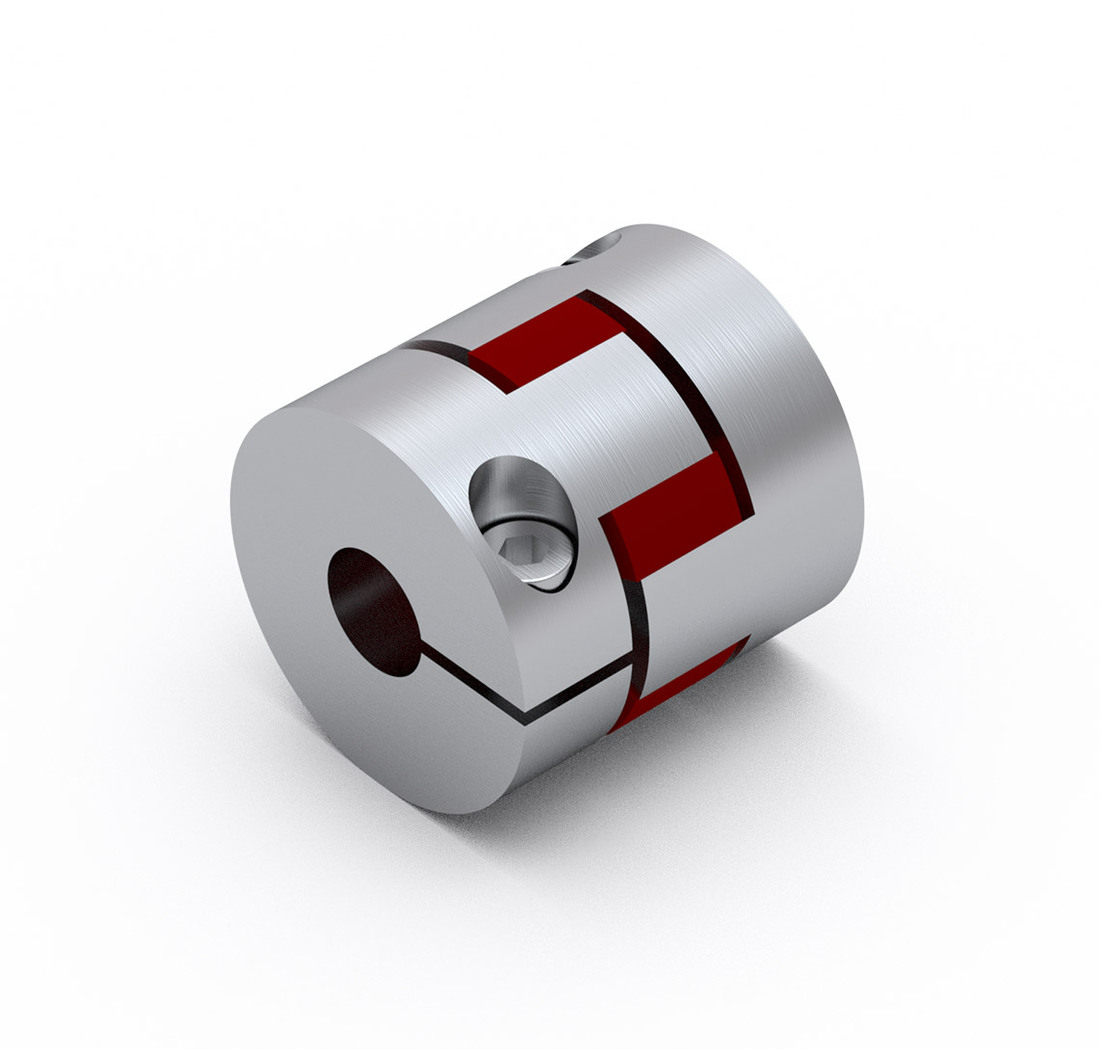

Couplings

Dimension in mm.

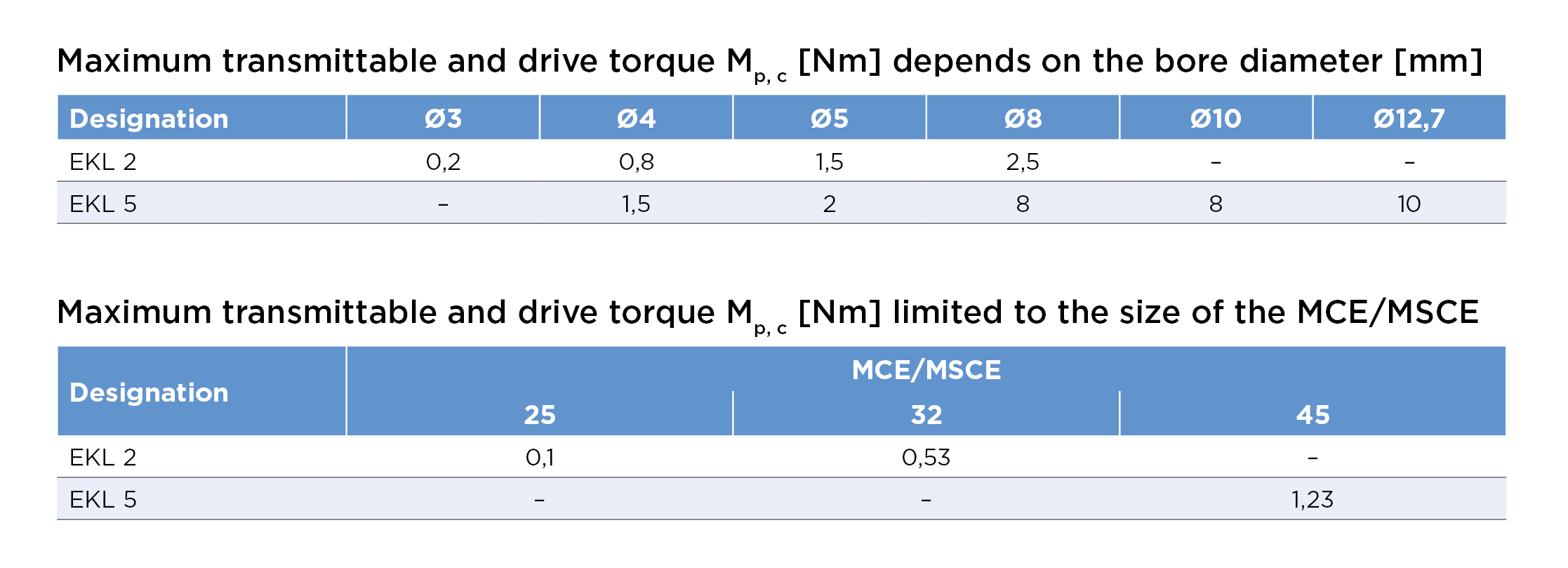

The maximum transmittable torque of the clamping hub depends on the bore diameter.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Designation Select all Lead Time * Rated Torque (Nm) Max. Torque (Nm) G A B H F C D1 D2 E Tightening Torque of the Clamping Screw (Nm) Compatible with Moment of inertia per hub (10⁻³ kg m²) Speed standard (min⁻¹) BS DE Weight (kg) Compare
2 2 4 3 20 16 12 5.5 6 3 8 M2 0.6 MCE/MSCE series 0.0003 15000 17 6.2 ≈ 0.008
Get quote
2 9 18 4 26 25 16.7 8 8 4 12.7 M3 2 MCE/MSCE 45 0.002 15000 25 10.2 ≈ 0.02
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
