Trunnion support MLZ
Mounting Attachment Accessory MLZ, galvanized steel and sinterized bronze

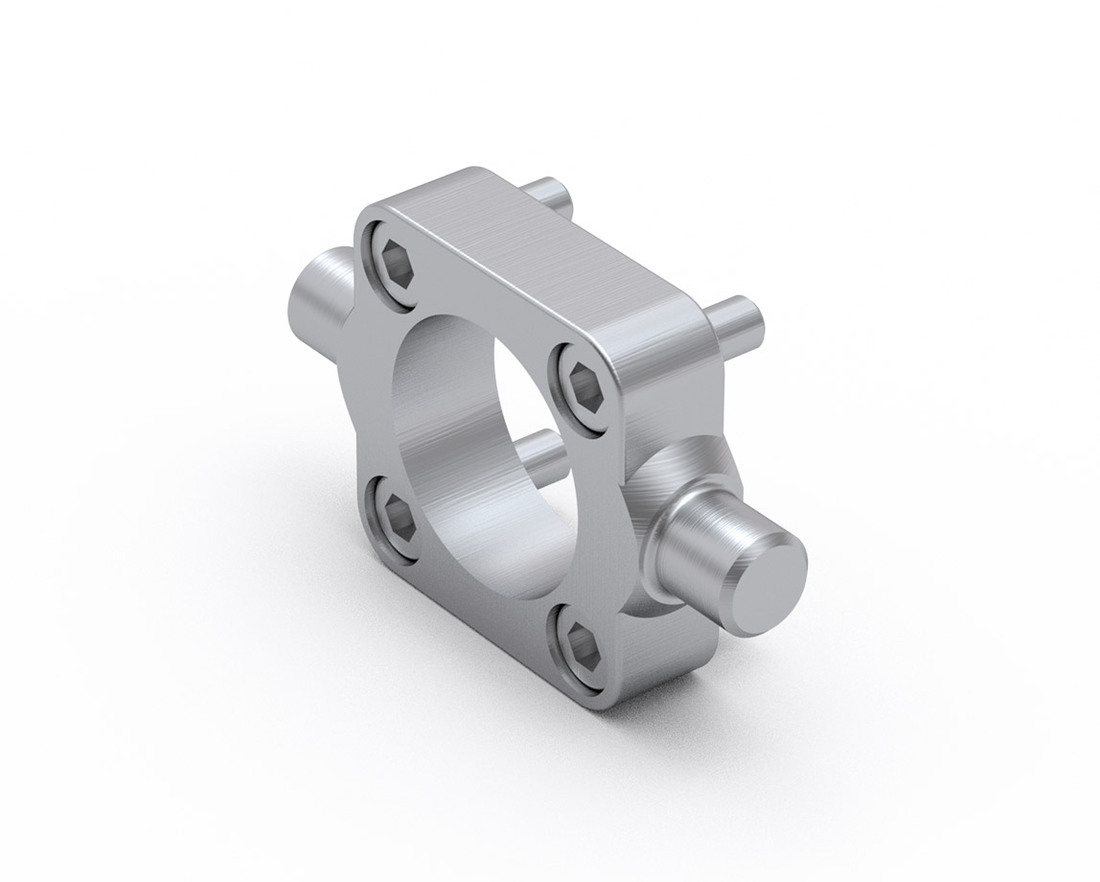

Trunnion mount MZK
Dimensions in mm.
Mounting screws are included.
Mounting screws are included.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
Material: Galvanized steel
| Designation | Select all | Lead Time * | Compatible with | Description | Material | Fmax (N) | Mass (kg) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/DD933A3A62FAC1E334F3F2FDF2D002BEC48139083238D6C8F8878C1855EFF8DF/a0c05dd5746342c4806e1430ad148f6b/STP/media/e598d547bd3a42969f31147ebf75d94b/CAD_MZK32-108230_TrunnionMountMZK_Rollco.STP | 2 | MCE 32 | MZK 32 | Galvanized steel | F MCE | 0.12 |
|
||
|
|
/storage/8538ADAED183BFCD6126210D8F330B9BA470FAC3A8D23754BF042A6373D72363/1c3df1fbf1654eac881ce45e94cebd5f/STP/media/138201981072463cb049835fa4de4a19/CAD_MZK45-108231_TrunnionMountMZK_Rollco.STP | 2 | MCE 45 | MZK 45 | Galvanized steel | F MCE | 0.17 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | L1 | L2 | L3 | L4 | L5 | L6 | L7 | D1 | D2 | D3 | D4 | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/DD933A3A62FAC1E334F3F2FDF2D002BEC48139083238D6C8F8878C1855EFF8DF/a0c05dd5746342c4806e1430ad148f6b/STP/media/e598d547bd3a42969f31147ebf75d94b/CAD_MZK32-108230_TrunnionMountMZK_Rollco.STP | 35 | 22 | 38 (h14) | 12 (h14) | 14 | 6.5 (+0.3/0) | 6 (±0.2) | 5.5 | 10 | 12 (e9) | 18 |
|
||
|
|
/storage/8538ADAED183BFCD6126210D8F330B9BA470FAC3A8D23754BF042A6373D72363/1c3df1fbf1654eac881ce45e94cebd5f/STP/media/138201981072463cb049835fa4de4a19/CAD_MZK45-108231_TrunnionMountMZK_Rollco.STP | 46 | 32 | 52 (h14) | 12 (h14) | 14 | 6.5 (+0.3/0) | 7 (±0.2) | 6.6 | 10.5 | 12 (e9) | 32 |
|
