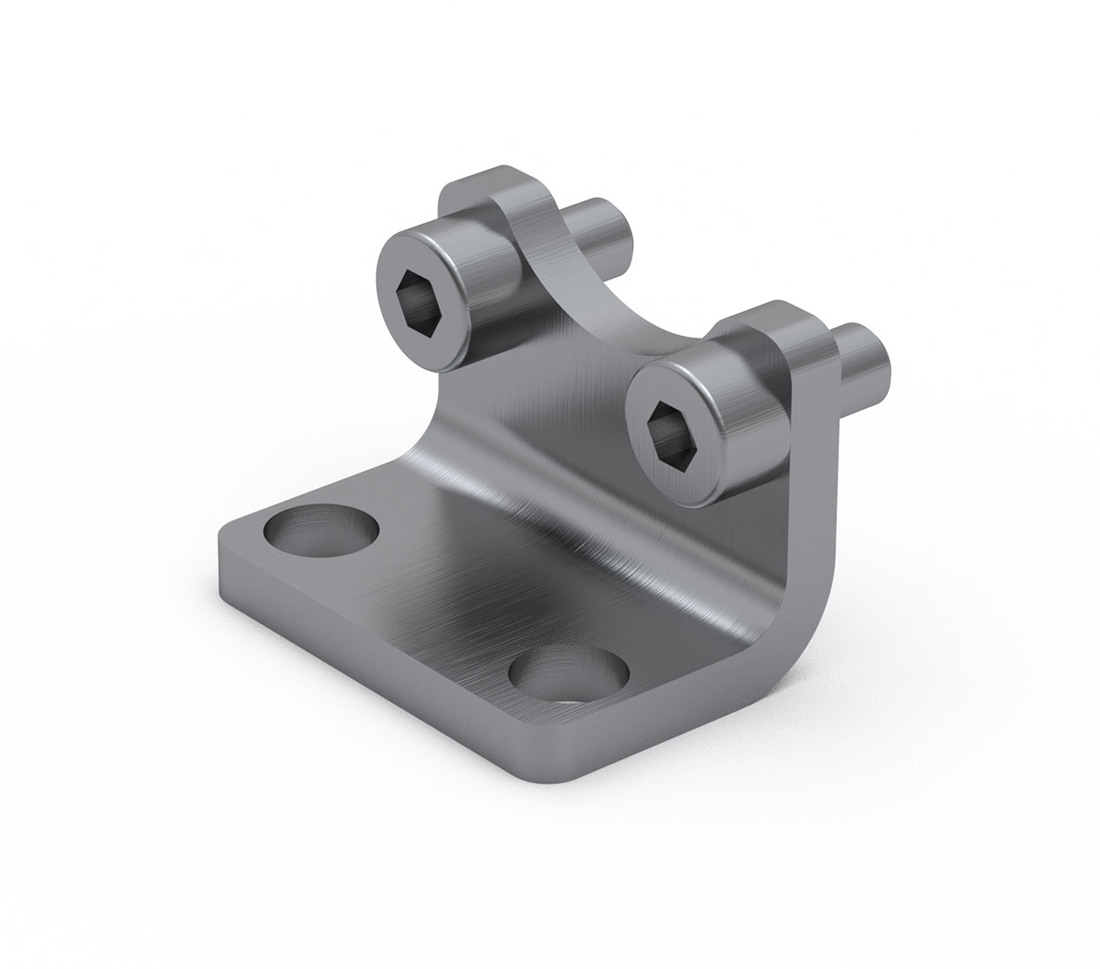

Foot mounting MAHP

Dimensions in mm.

Set contains 2 pcs (i.e. for both front and rear mounting). Mounting screws are included.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Material: Stainless steel
Designation Select all Compatible with Description Material Fmax (N) Mass (kg/m)
/storage/A56CB851A0FBFBA53944D0640AACE896B29A82BD3AE7FAF5BCECC31B56D9CA27/6ff70fc6cc794e1a91185884b731b187/zip/media/53153858b3a64b1fbf25a6e48dab3d53/CAD_MAHP25-108253_FootMountingMAHP_Rollco.zip MCE 25 MAHP 25 Stainless steel F MCE 0,04 kg
Get quote
/storage/3A966B4B06285CC2303B8E27D10FFD6B4A9A19A733D8C437E3CEE93BA85689C3/d4dc153a4b774eee8e07e39492608739/zip/media/3b208ba4941040ad93ff64ce568ca5f9/CAD_MAHP32-108254_FootMountingMAHP_Rollco.zip MCE 32 MAHP 32 Stainless steel F MCE 0,06 kg
Get quote
/storage/386686FBD18F793086F1D5B6B3DECC85EA2D25C0233ED64EF0C9B4EDDD35D4D2/792d6a0e3db24af1a80301179ed8a793/zip/media/7b62de81b891449eaa7000ee2bf21655/CAD_MAHP45-108255_FootMountingMAHP_Rollco.zip MCE 45 MAHP 45 Stainless steel F MCE 0,11 kg
Get quote
Designation Select all L1 L2 L3 L4 L6 L8 L9 D1 R L5 Front L5 Rear L7 Front L7 Rear ØD2 Front ØD2 Rear
/storage/A56CB851A0FBFBA53944D0640AACE896B29A82BD3AE7FAF5BCECC31B56D9CA27/6ff70fc6cc794e1a91185884b731b187/zip/media/53153858b3a64b1fbf25a6e48dab3d53/CAD_MAHP25-108253_FootMountingMAHP_Rollco.zip 25 18 17,50 13 3 17,50 22 5,50 9 11,50 13 21 18 2,80 4,50
Get quote
/storage/3A966B4B06285CC2303B8E27D10FFD6B4A9A19A733D8C437E3CEE93BA85689C3/d4dc153a4b774eee8e07e39492608739/zip/media/3b208ba4941040ad93ff64ce568ca5f9/CAD_MAHP32-108254_FootMountingMAHP_Rollco.zip 32 22 22 16 3 20 25,50 6,60 10 14,50 14,50 22 22 4,50 5,50
Get quote
/storage/386686FBD18F793086F1D5B6B3DECC85EA2D25C0233ED64EF0C9B4EDDD35D4D2/792d6a0e3db24af1a80301179ed8a793/zip/media/7b62de81b891449eaa7000ee2bf21655/CAD_MAHP45-108255_FootMountingMAHP_Rollco.zip 45 32 26,20 18 3 24 32 6,60 13 16 16 32 32 6,60 6,60
Get quote
