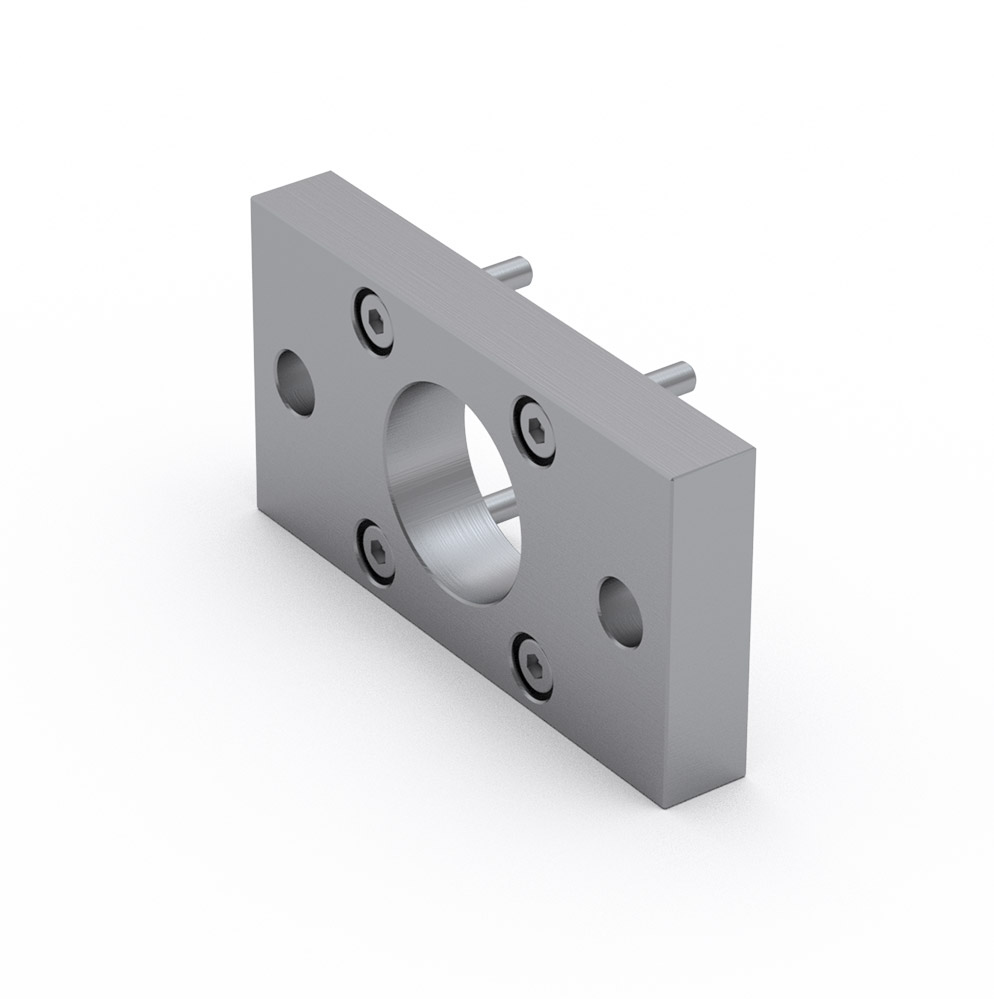

Flange mounting MAFL

Dimensions in mm.

Mounting screws are included.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Material: Anodized aluminium
Designation Select all Lead Time * Compatible with Description Material Fmax (N) Mass (kg) CAD Compare
/storage/0D498449D0423494303FE5BB0932F4626CC09BF848BABB243DD71D38DA932938/398183b71b794638b2192901b75d7bd9/STP/media/6247a1285de64a27bb8d824cd7b2238e/CAD_MAFL25-108624_FlangeMountingMAFL_Rollco.STP 2 MCE 25 MAFL 25 Anodized aluminium F MCE 0.03
Get quote
/storage/876C78A86AD47EF380FD7E2E1266A85E5EC602F2BA007733D7535489D2AA4E6D/b938f6bc89bf4b00b20d3a1aacf339bb/STP/media/388b0b05f9d74a5ab8cf4b237d1ad1fd/CAD_MAFL32-108625_FlangeMountingMAFL_Rollco.STP 2 MCE 32 MAFL 32 Anodized aluminium F MCE 0.06
Get quote
/storage/A90AB6D8E74F37FD234BCB05E8C99BF1028A564036DD0D57B9BCE2D8263D62F7/41c9d6a81c4e4fff984d910d83ff5fec/STP/media/202cc114fe124ec1bae0cdb5b9fbbeed/CAD_MAFL45-108626_FlangeMountingMAFL_Rollco.STP 2 MCE 45 MAFL 45 Anodized aluminium F MCE 0.11
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all L1 L2 L3 L4 L5 L6 L7 D1 D2 D3 D4 CAD Compare
/storage/0D498449D0423494303FE5BB0932F4626CC09BF848BABB243DD71D38DA932938/398183b71b794638b2192901b75d7bd9/STP/media/6247a1285de64a27bb8d824cd7b2238e/CAD_MAFL25-108624_FlangeMountingMAFL_Rollco.STP 55 29 8 43 - 21 5.1 18 2.9 5.5 5.5
Get quote
/storage/876C78A86AD47EF380FD7E2E1266A85E5EC602F2BA007733D7535489D2AA4E6D/b938f6bc89bf4b00b20d3a1aacf339bb/STP/media/388b0b05f9d74a5ab8cf4b237d1ad1fd/CAD_MAFL32-108625_FlangeMountingMAFL_Rollco.STP 70 36 10 55 - 22 5.5 20 4.5 6.5 8
Get quote
/storage/A90AB6D8E74F37FD234BCB05E8C99BF1028A564036DD0D57B9BCE2D8263D62F7/41c9d6a81c4e4fff984d910d83ff5fec/STP/media/202cc114fe124ec1bae0cdb5b9fbbeed/CAD_MAFL45-108626_FlangeMountingMAFL_Rollco.STP 80 50 10 65 32 32 3.5 26 6.6 7 11
Get quote
