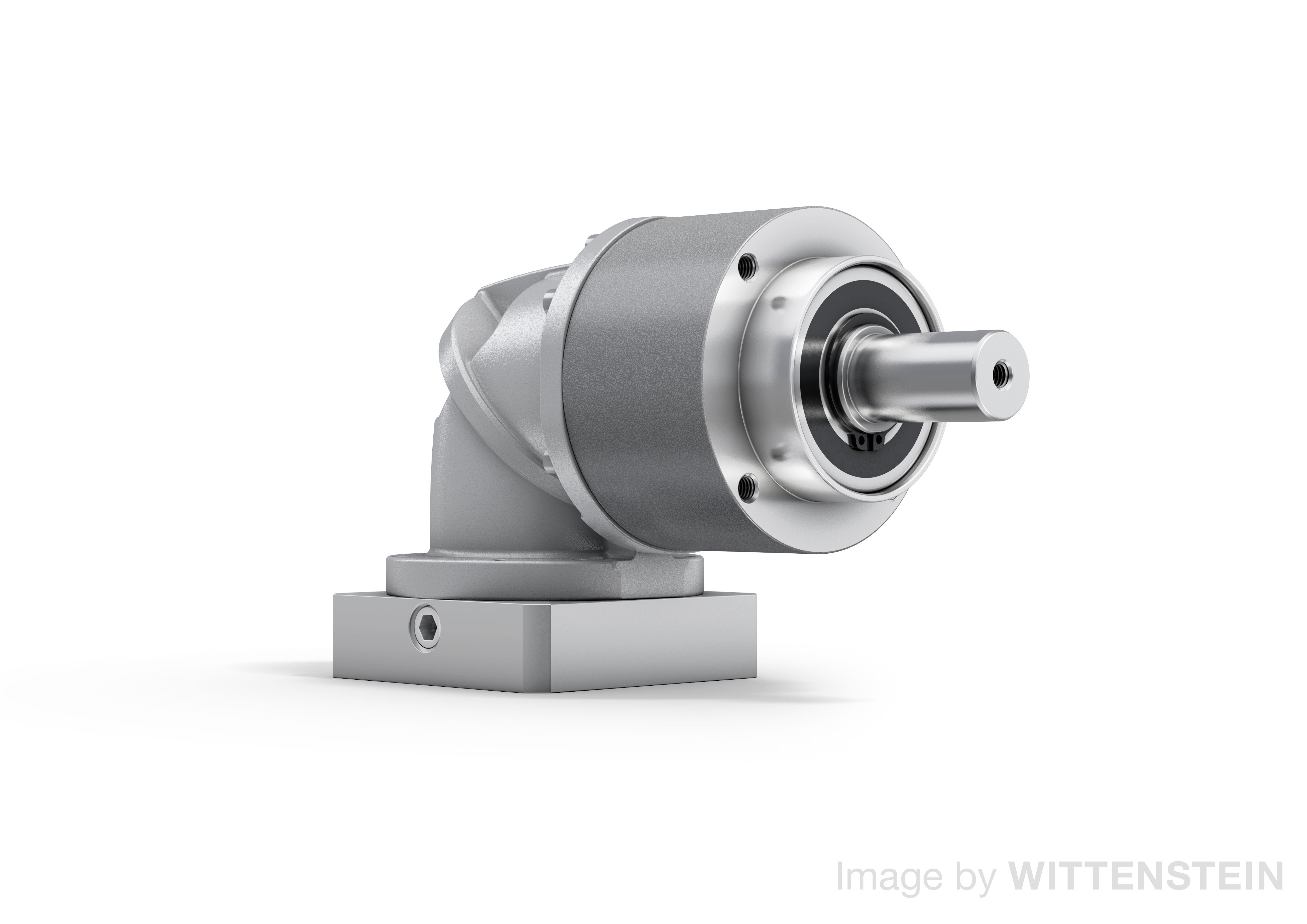

CPSK bevel gearbox
The right-angle gearboxes of the alpha Basic Line are specially designed for applications with medium requirements for positioning accuracy. The extremely compact bevel gear stage enables use in applications with space constraints.
Read more
Product Information
Ratio: 3-100
Max. Torque (Nm): 33-272
Other models: food-grade lubrication
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Ratio | Remark | Size |
|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100 | Compatible with Linear unit RHL80 + Adapter kit RHL80 | 015 | |||
|
|
|
2 | 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100 | - | 025 | |||
|
|
|
2 | 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100 | Compatible with Linear unit RHL110 + Adapter kit RHL100 | 035 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
Linear Unit RHL110
Complete linear unit with rail guide and toothed belt -

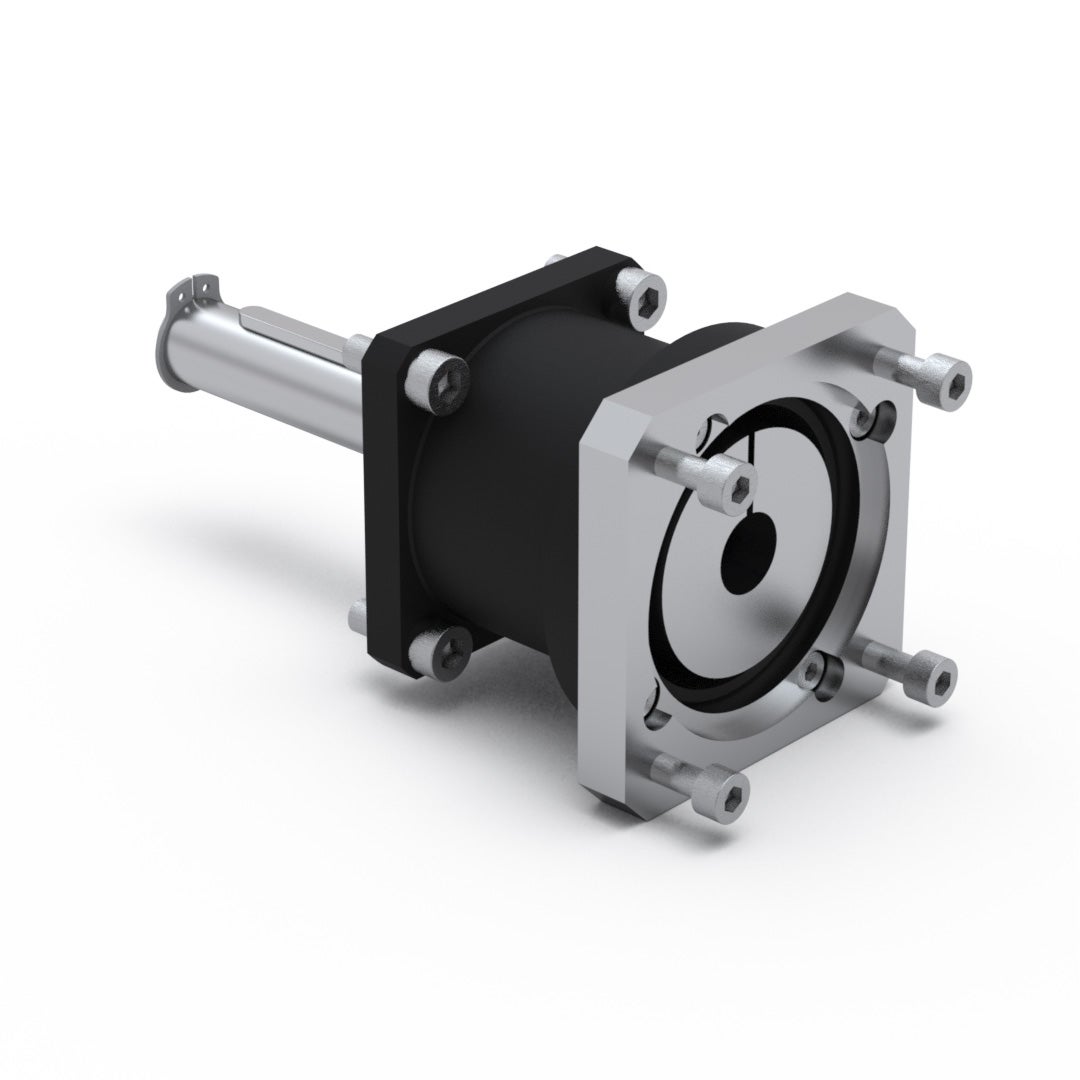

Adapter kit RHL
Connects linear unit RHL with a planetary gearbox.
-
NPS planetary gearbox
Ratio 3-100, Backlash: ≤ 8 -10 arcmin. For medium accuracy. -
NPL planetary gearbox
Ratio 3-100, Backlash: ≤ 8 -10 arcmin. For medium accuracy. -
CP planetary gearbox
Ratio 3-100, Backlash: ≤ 12 -18 arcmin. For medium to low accuracy. -

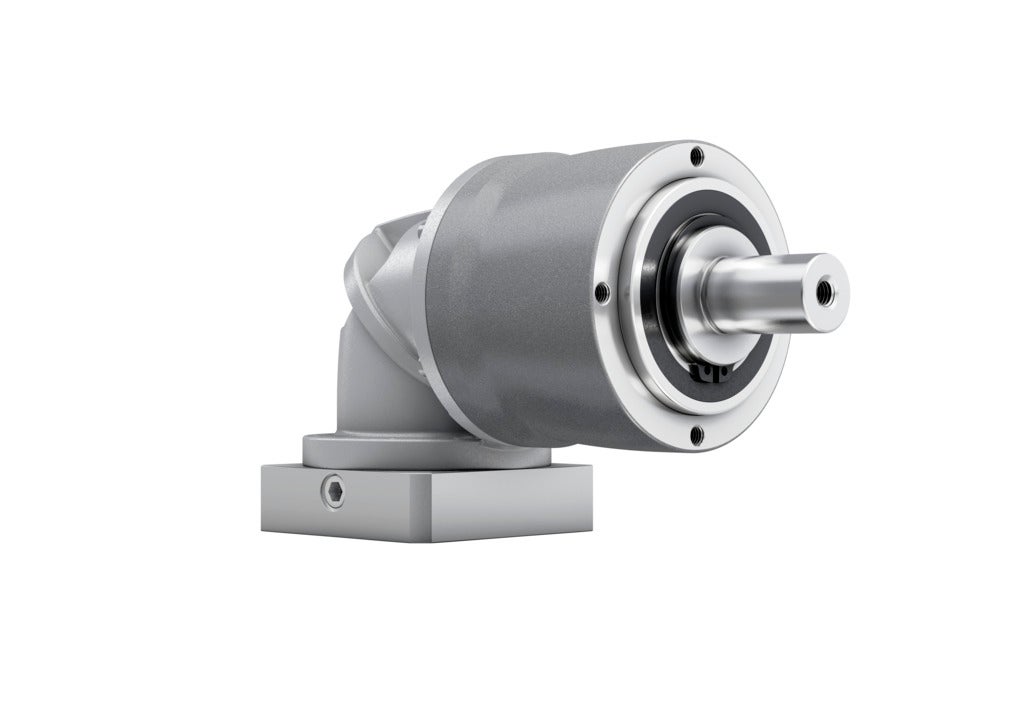

NPK bevel gearbox
Version of NP with a 90° bevel gear input stage. Backlash ≤ 11 - 15 arcmin. -

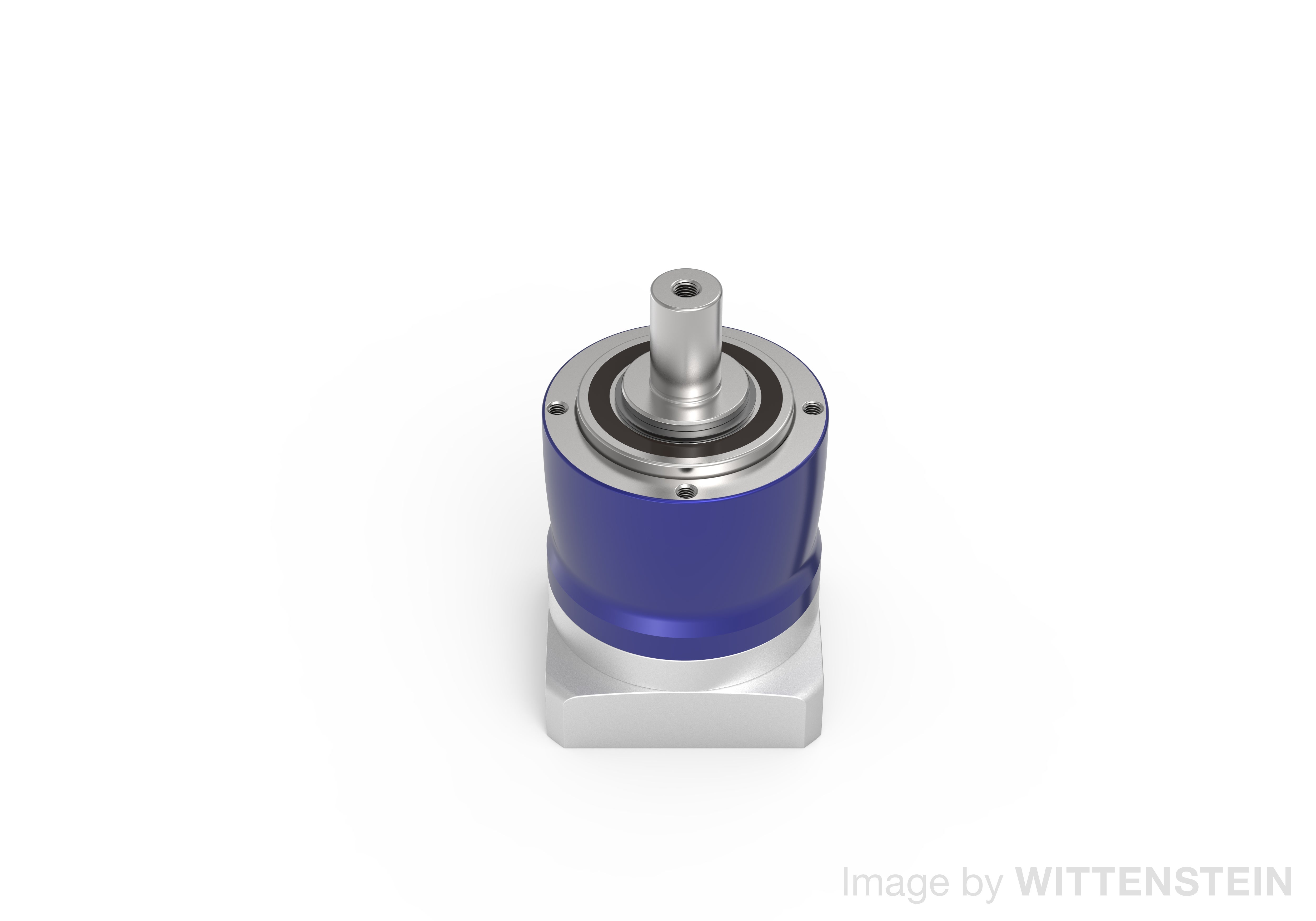

NP planetary gearbox
Ratio 3-100, Backlash: ≤ 8 -13 arcmin. For medium accuracy. -

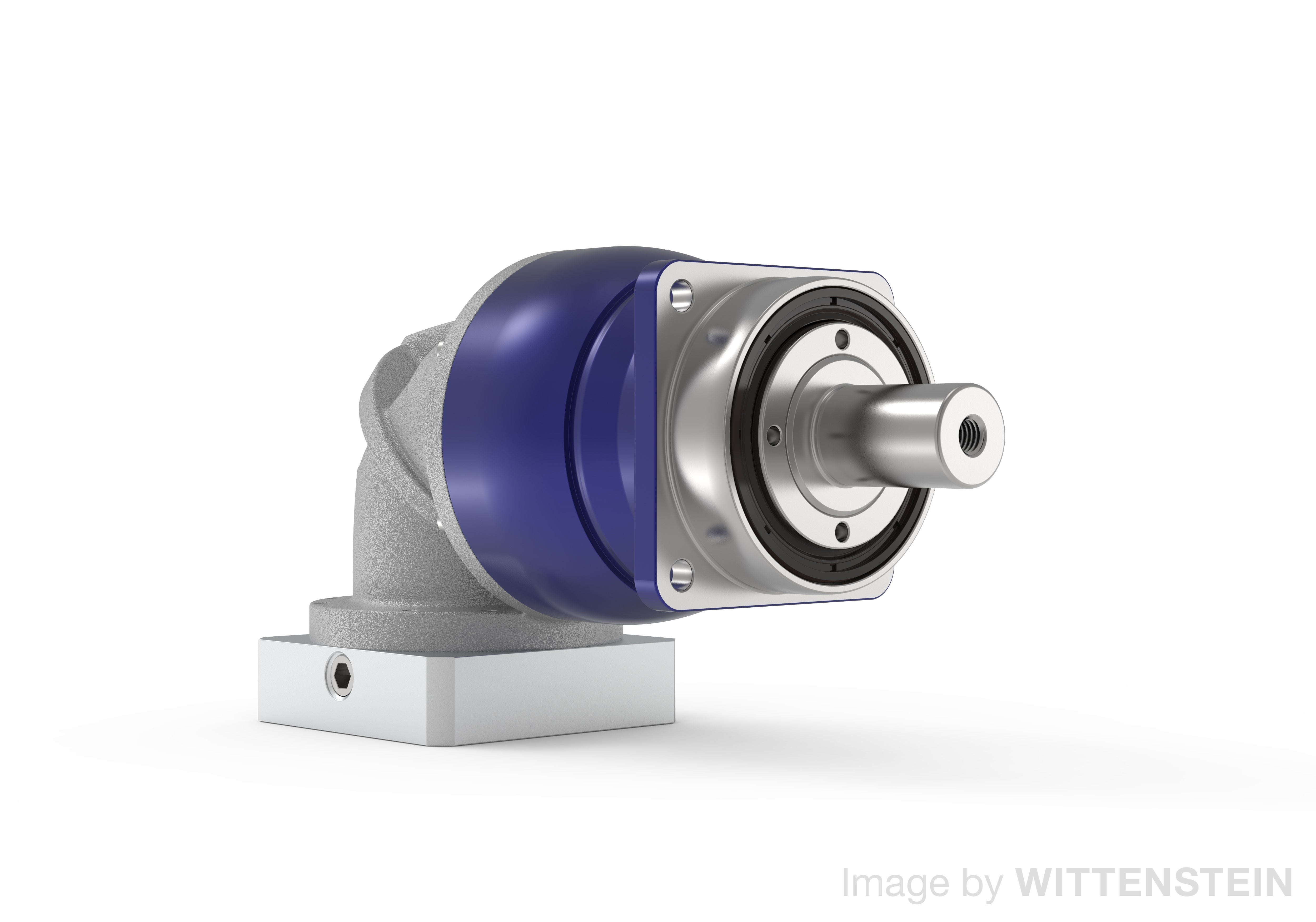

NPSK bevel gearbox
Version of NPS with a 90° bevel gear input stage. Backlash ≤ 11 - 15 arcmin. -
CPS planetary gearbox
Ratio 3-100, Backlash: ≤ 12 -15 arcmin. For medium to low accuracy. -

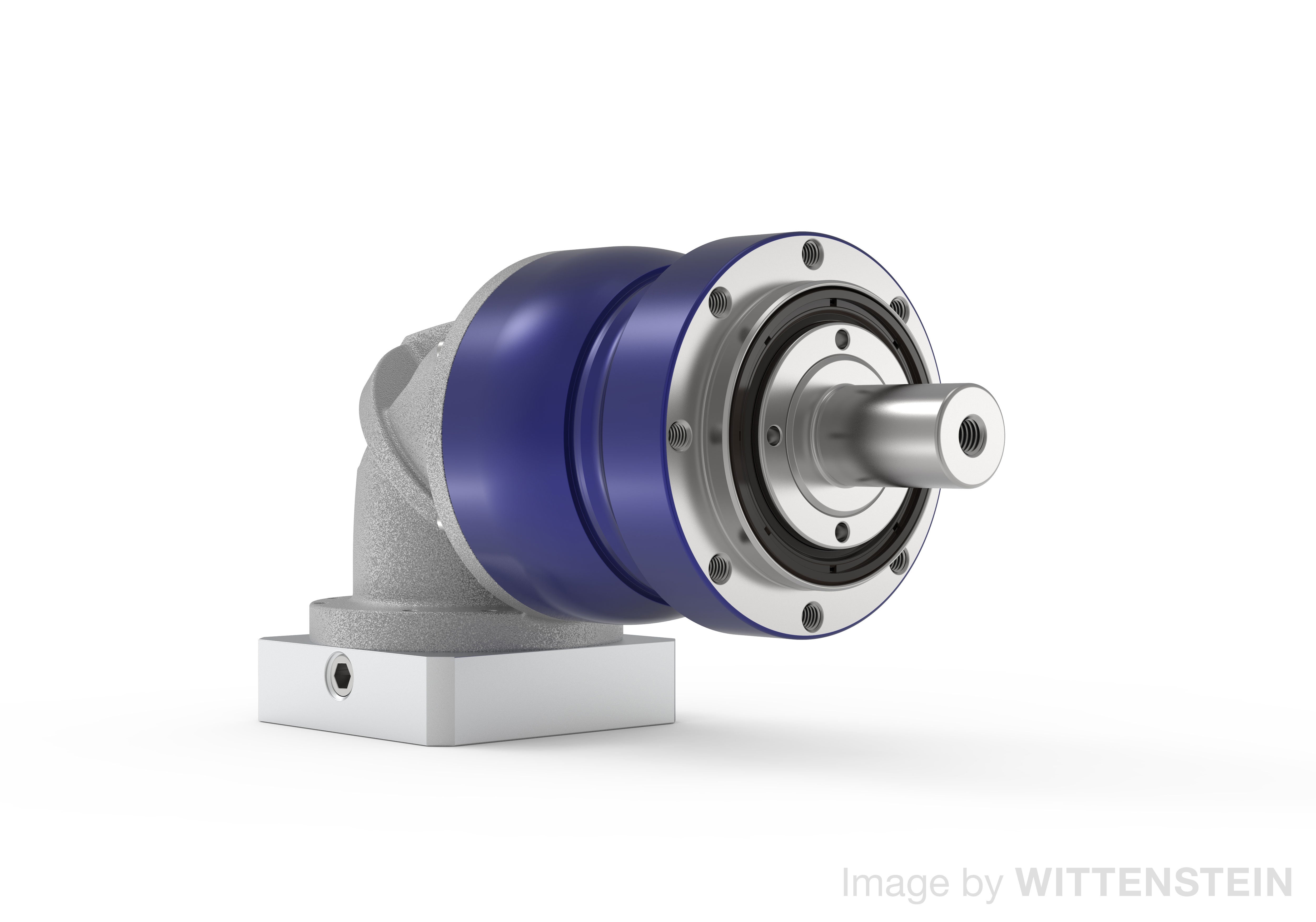

NPLK bevel gearbox
Version of NPL with a 90° bevel gear input stage. Backlash ≤ 11 - 15 arcmin. -
CPK bevel gearbox
Version of CP with a 90° bevel gear input stage. Backlash ≤ 13 - 20 arcmin.
