W
Hardened precision steel shaft, Ø 5-80 mm.

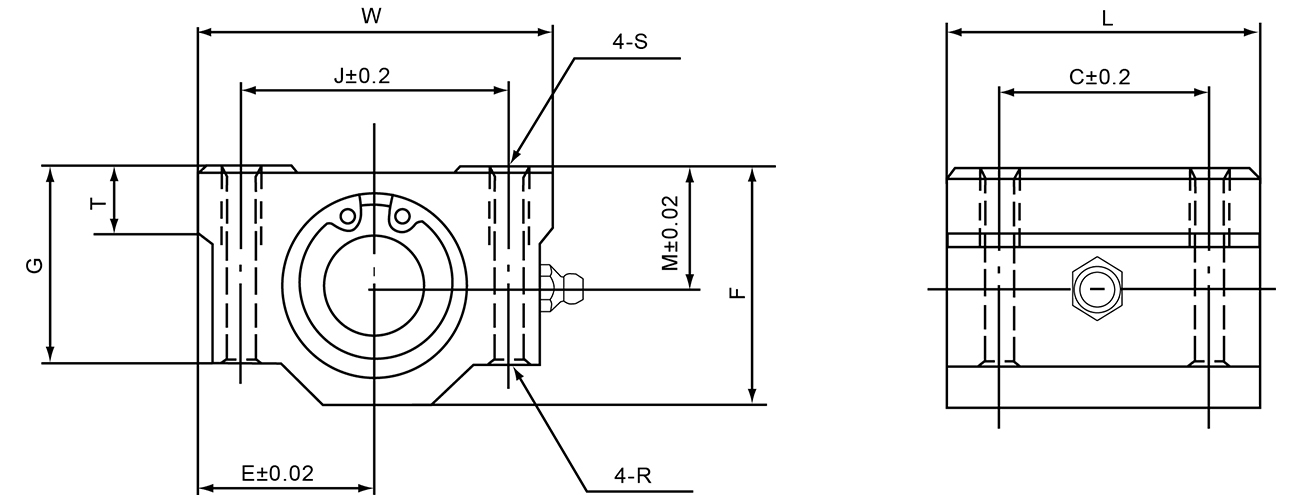

KBA...UU
Dimensions in mm.
Other types available on request.
NOTE: Linear Units can also be supplied with self-aligning SBE-Bushing (KBE...UU) or stainless LMES-Bushing (KBS..UU).
Read more
Other types available on request.
NOTE: Linear Units can also be supplied with self-aligning SBE-Bushing (KBE...UU) or stainless LMES-Bushing (KBS..UU).
Product Information
Material: Aluminium 6063 + 100Cr6
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Dynamic Load Capacity (N) | Static Load Capacity (N) | |
|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 520 | 740 | ||||
|
|
|
1 | 590 | 910 | ||||
|
|
|
1 | 880 | 1400 | ||||
|
|
|
1 | 1000 | 1600 | ||||
|
|
|
1 | 1600 | 2800 | ||||
|
|
|
1 | 2200 | 4000 | ||||
|
|
|
1 | 3900 | 8100 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L | W | C | E | F | G | J | M | R | S | T | Inscribed Circle Diameter | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
39 | 44 | 26 | 22 | 30 | 24.5 | 33 | 15 | 4.3 | M5 | 8 | 12 | ||||
|
|
|
44 | 50 | 34 | 25 | 38.5 | 32.5 | 36 | 19 | 4.3 | M5 | 9 | 16 | ||||
|
|
|
53 | 54 | 40 | 27 | 41 | 35 | 40 | 21 | 5.2 | M6 | 11 | 20 | ||||
|
|
|
67 | 76 | 50 | 38 | 51.5 | 42 | 54 | 26 | 7 | M8 | 12 | 25 | ||||
|
|
|
76 | 78 | 58 | 39 | 59.5 | 49 | 58 | 30 | 7 | M8 | 15 | 30 | ||||
|
|
|
90 | 102 | 60 | 51 | 78 | 62 | 80 | 40 | 8.7 | M10 | 20 | 40 | ||||
|
|
|
110 | 122 | 80 | 61 | 102 | 80 | 100 | 52 | 8.7 | M10 | 25 | 50 |
-
KBA...UUOP
Linear unit, open type, Ø 16-40 mm.
