Open Type KBA...UUOP

Dimensions in mm.
Other types available on request.

Product Information

Designation Dynamic Load Capacity Static Load Capacity
590 N 910 N
880 N 1400 N
1000 N 1600 N
1600 N 2800 N
2200 N 4100 N

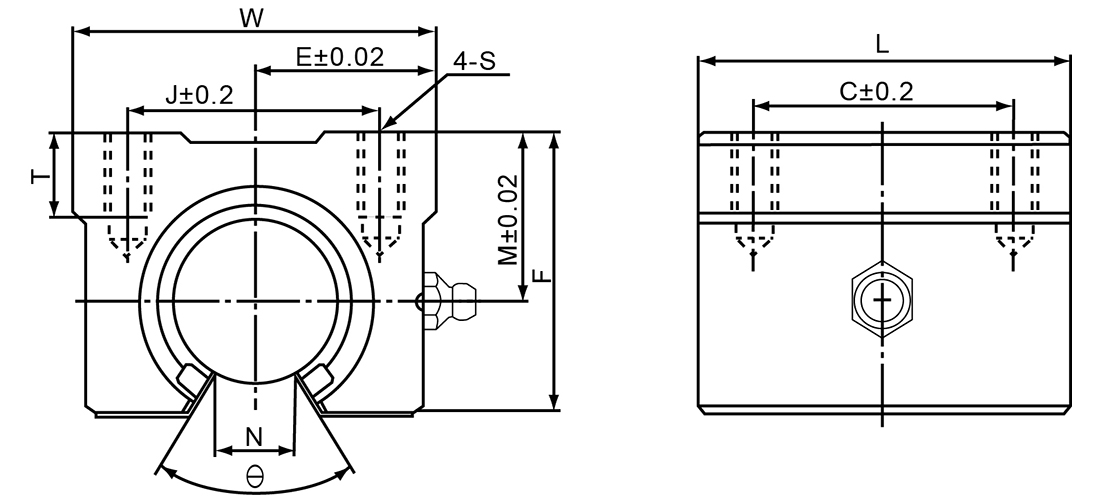

Technical Drawing
Designation C E F J L M N S T W Theta θ Inscribed Circle Diameter
30 22,50 33 32 45 20 10 M5 12 45 60 16,00
35 24 39 35 50 23 10 M6 12 48 60 20,00
40 30 47 40 65 27 11,50 M6 12 60 60 25,00
50 35 56 50 70 33 14 M8 18 70 60 30,00
65 45 72 65 90 42 19 M10 20 90 60 40,00
