FTSU

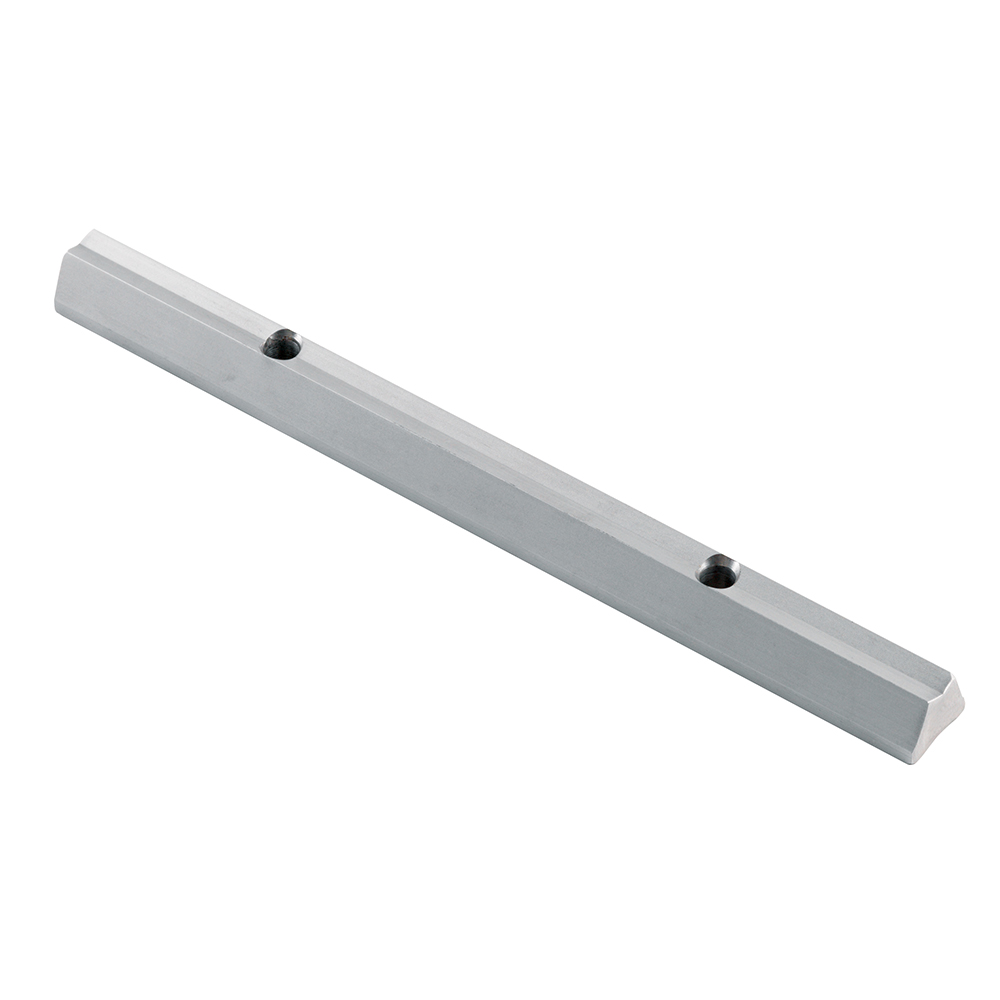

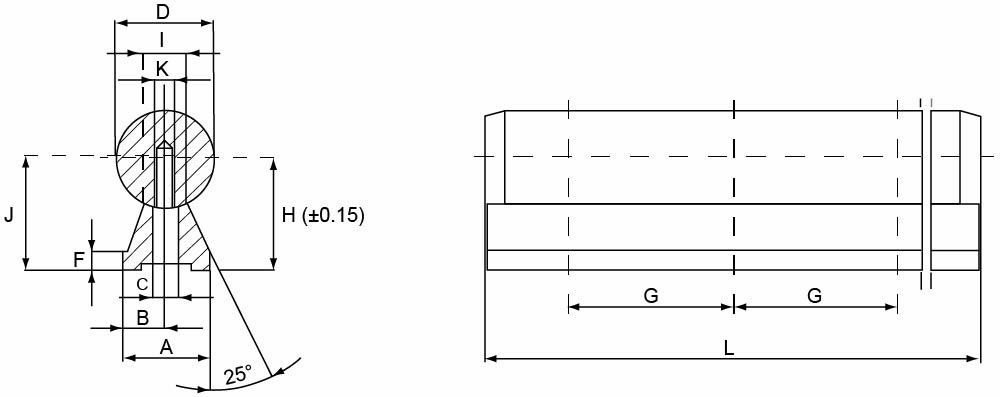

Aluminium with mounting holes.

Standard section length L = 4000 mm. Lengths other than standard (Lmax = 4000 mm) are also available on request.

Support rails can be supplied upon request, with or without mounting holes. No anodizing in holes.

Dimensions in mm.

Note: The shaft is not included, please order separately.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Material: Aluminium
Designation Select all Lead Time * G A B H D K F C I J Remark
2 100 14 7 18 16 M5 3 5.5 7 19 Standard section length L = 4000 mm
Get quote
1 100 17 8.5 22 20 M6 3 6.6 8.1 23 Standard section length L = 4000 mm
Get quote
1 120 21 10.5 26 25 M8 3 9 10.3 28.5 Standard section length L = 4000 mm
Get quote
1 150 23 11.5 30 30 M10 3 11 11 32 Standard section length L = 4000 mm
Get quote
2 200 40 15 39 40 M10 4 13.5 15 39.5 Standard section length L = 4000 mm
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

  • FTSN

    Aluminium shaft support with flange ,for drilled shafts Ø 12-40 mm.
