FTSN

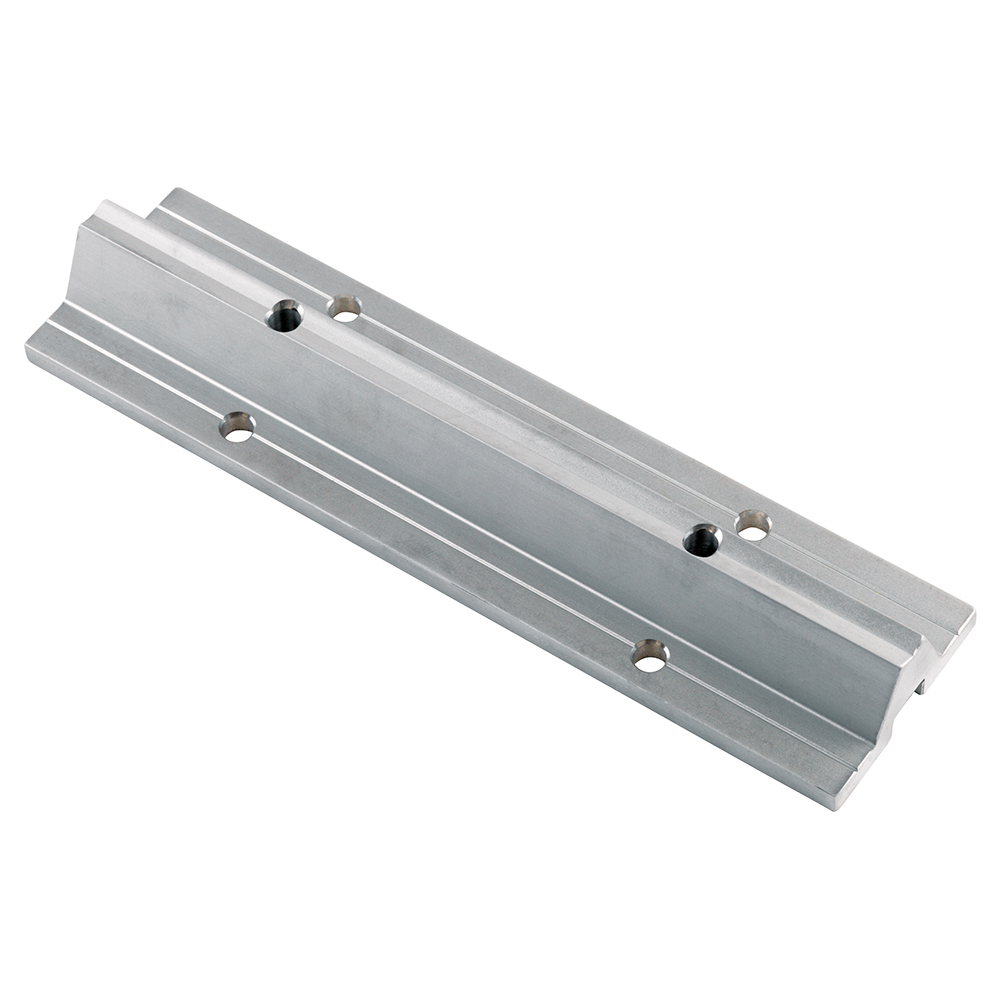

Aluminium with mounting holes.

Standard section length L = 3700 mm. Lengths other than standard (Lmax = 3700 mm) are also available on request.

Support rails can be supplied upon request, with or without mounting holes. No anodizing in holes.

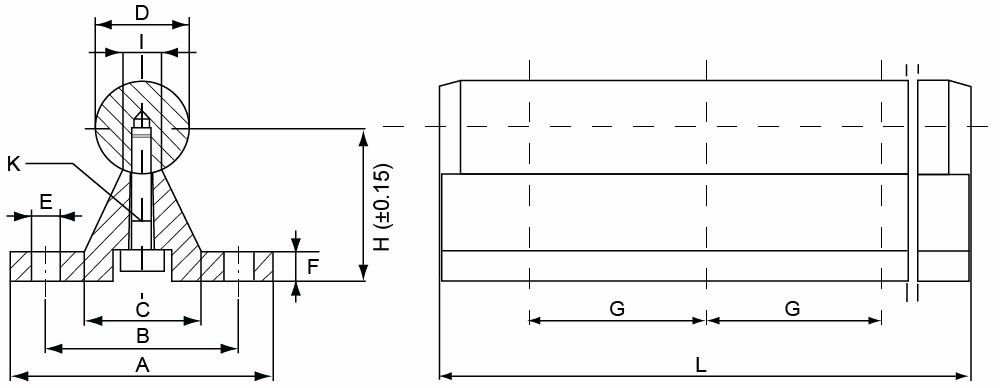

Dimensions in mm.

Note: The shaft is not included, please order separately.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Material: Aluminium
Designation Select all Lead Time * G A B H D K F C E I Remark
1 75 40 29 22 12 M4x20 5 15 4.5 5.4 Standard section length L = 3700 mm
Get quote
1 100 45 33 26 16 M5x20 5 19 5.5 7 Standard section length L = 3700 mm
Get quote
1 100 52 37 32 20 M6x25 6 23 6.6 8.1 Standard section length L = 3700 mm
Get quote
1 120 57 42 36 25 M8x30 6 26 6.6 10.3 Standard section length L = 3700 mm
Get quote
1 150 69 51 42 30 M10x35 7 29 9 11 Standard section length L = 3700 mm
Get quote
1 200 73 55 50 40 M10x40 8 36 9 15 Standard section length L = 3700 mm
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
