Shaft Block Type SK

Product Information

Designation Lead Time * Weight
1 0,03 kg
1 0,04 kg
1 0,07 kg
1 0,13 kg
1 0,18 kg
1 0,42 kg
1 0,75 kg

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

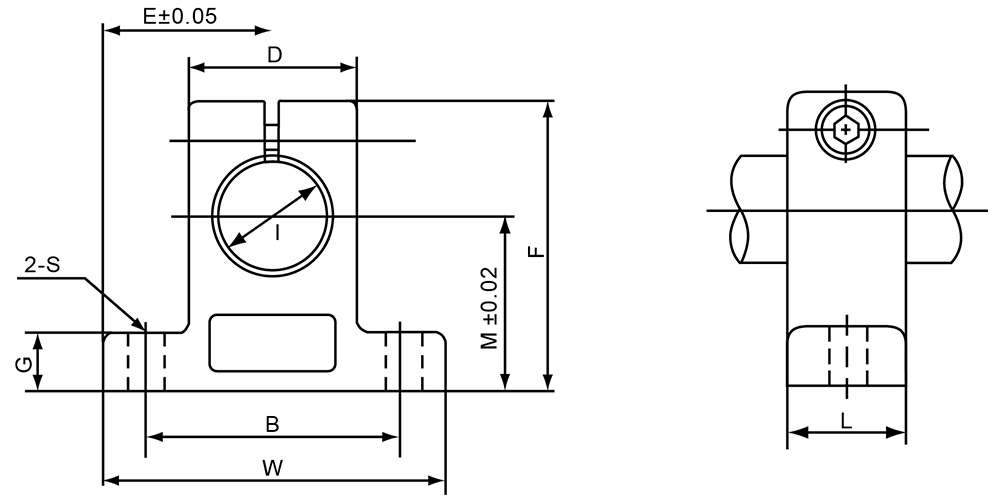

Technical Drawing
Designation B D E F G I L M S W
32 20 21 38 6 12 14 23 5,50 42
38 25 24 44 8 16 16 27 5,50 48
45 30 30 51 10 20 20 31 6,60 60
56 38 35 60 12 25 24 35 6,60 70
64 44 42 70 12 30 28 42 9 84
90 60 57 96 15 40 36 60 11 114
100 74 63 120 18 50 40 70 14 126
