SHF

STANDARD

Product Information

Material: Aluminium
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Weight (kg)
Get quote 1 0.02
Get quote 1 0.027
Get quote 1 0.04
Get quote 1 0.06
Get quote 1 0.11
Get quote 1 0.51

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

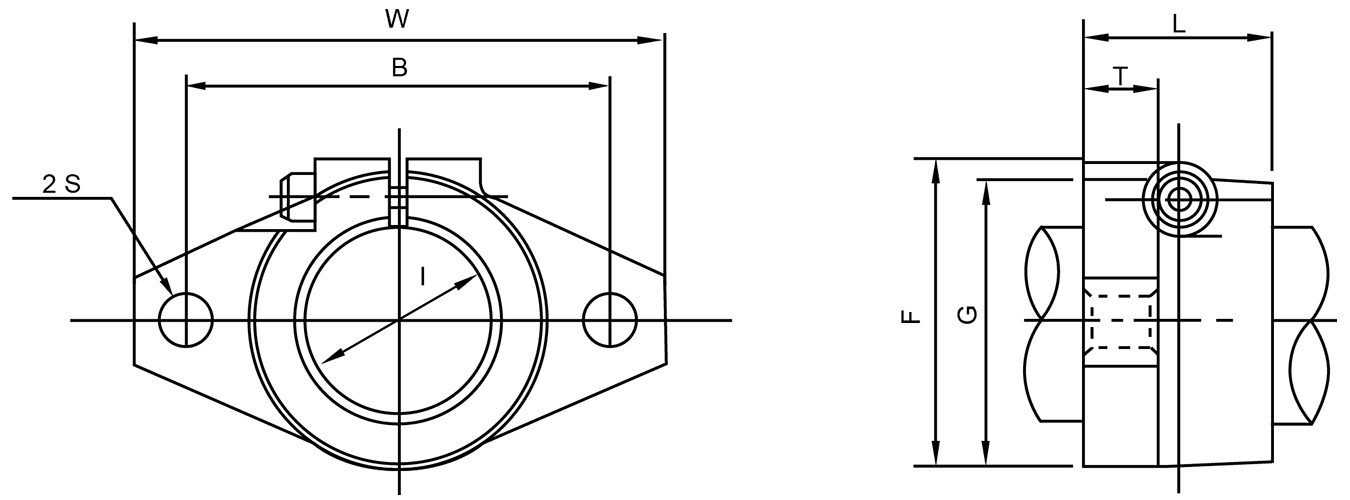

Designation Select all CAD Compare Get quote I L W B F G S T
Get quote 12 13 47 36 28 25 5.5 7
Get quote 16 16 50 40 31 28 5.5 8
Get quote 20 20 60 48 37 34 7 8
Get quote 25 25 70 56 42 40 7 10
Get quote 30 30 80 64 50 46 9 12
Get quote 40 40 102 80 67 56 12 16
  • STANDARD

    W
    Hardened precision steel shaft, Ø 5-80 mm.
  • STANDARD

    WV
    Chrome plated hardened precision shaft, Ø 10-40 mm.
  • STANDARD

    WRB
    Hardened precision stainless steel shaft X46, Ø 5-60 mm.
  • STANDARD

    WRA
    Hardened precision stainless steel shaft X90, Ø 8-50 mm.
  • STANDARD

    WH
    Hardened precision steel shaft hollow, Ø 12-50 mm.
  • STANDARD

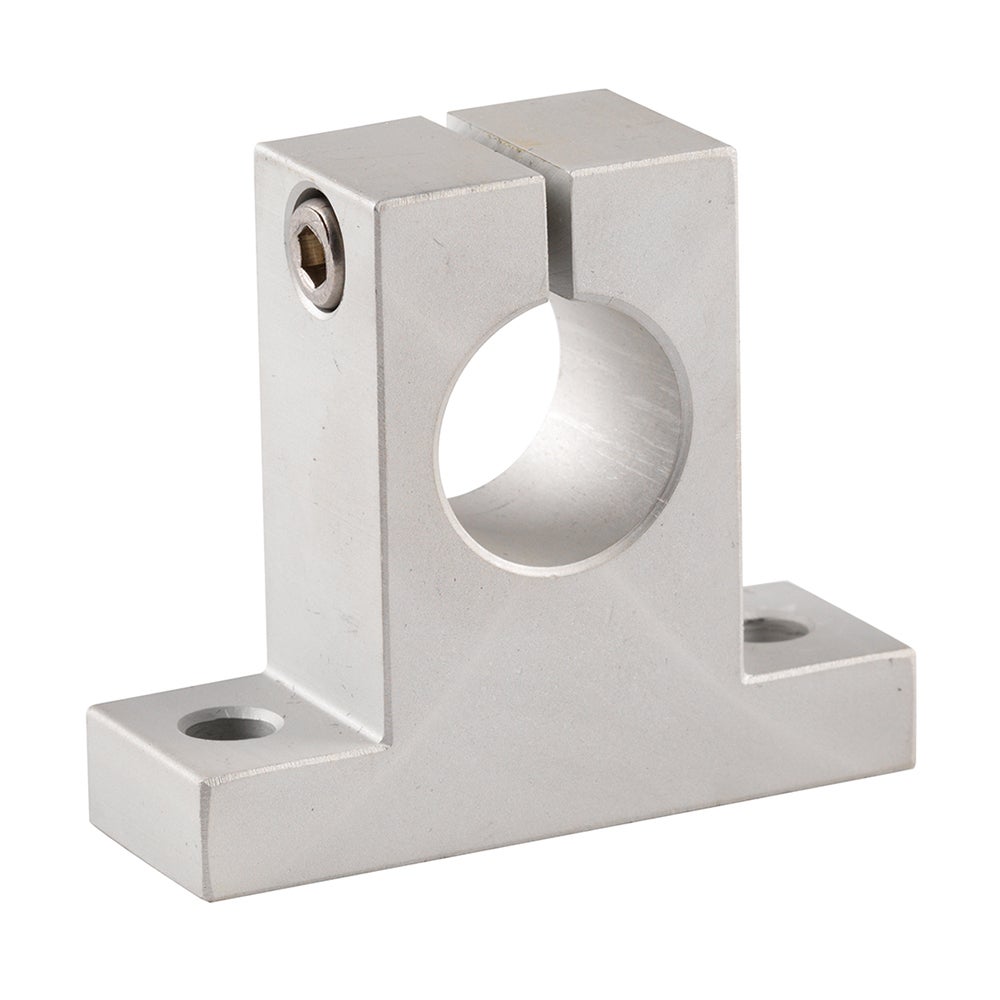

    SK
