Compact U-Rail

U-Rails – Floating bearing rails used for load bearing of radial forces and, in combination with the fixed bearing rail or compensation rail, as a support bearing for occurring moments.

Dimensions in mm.

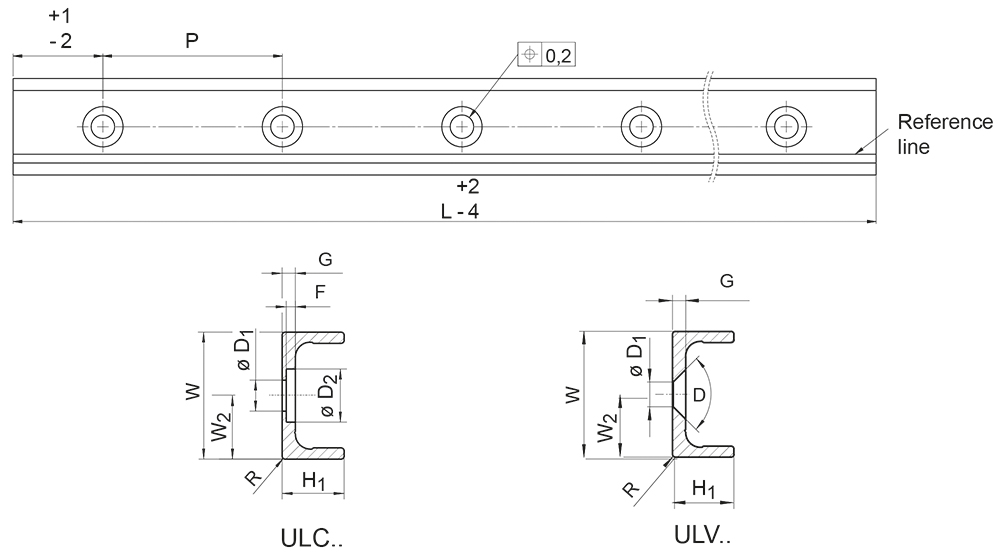

Technical Drawing
Designation Length H1 Size Remark
2 000,00 8,25 18 Counterbored holes
3 200,00 12 28 Counterbored holes
4 080,00 21 43 Counterbored holes
4 080,00 28 63 Counterbored holes
2 000,00 8,25 18 Countersunk holes
3 200,00 12 28 Countersunk holes
4 080,00 21 43 Countersunk holes
4 080,00 28 63 Countersunk holes
Technical Drawing
Designation D D1 D2 F G H1 P R W W2
5 9,50 1,90 2,60 8,25 80 R 1 18 9
6,40 11 2 3 12 80 R 1 28 14
10,50 18 3,10 4,50 21 80 R 1 43 21,50
9 15 5,20 8 28 80 2 x 45° 63 315
90° 5 2,60 8,25 80 R 1 18 9
90° 6 3 12 80 R 1 28 14
90° 9 4,50 21 80 R 1 43 21,50
90° 11 8 28 80 2 x 45° 63 31,50
Designation Weight Rail
550 g/m
1000 g/m
2600 g/m
6000 g/m
550 g/m
1000 g/m
2600 g/m
6000 g/m
