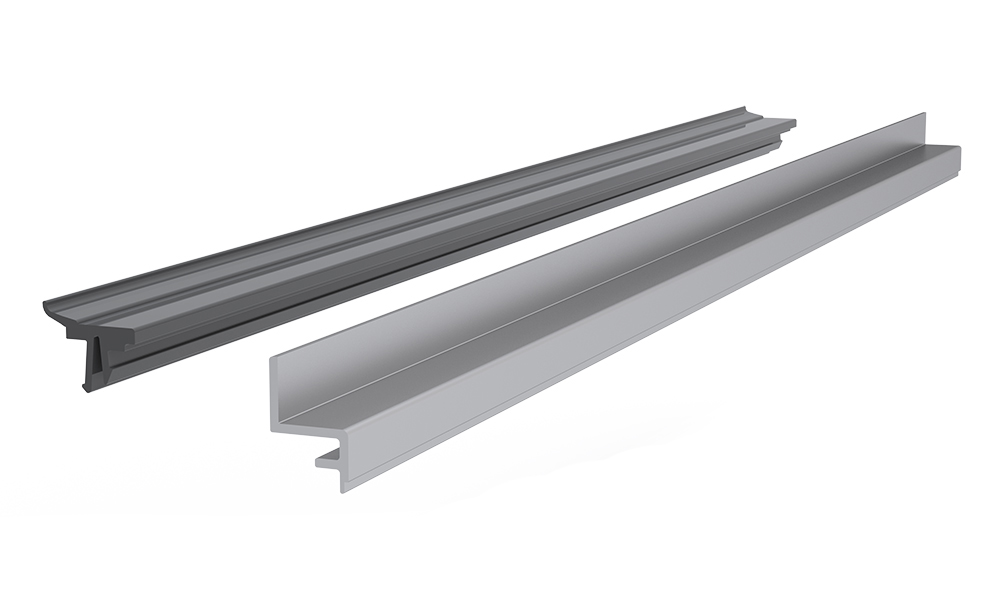

Panel Clamping Strip

For fitting plates into closed frames later.

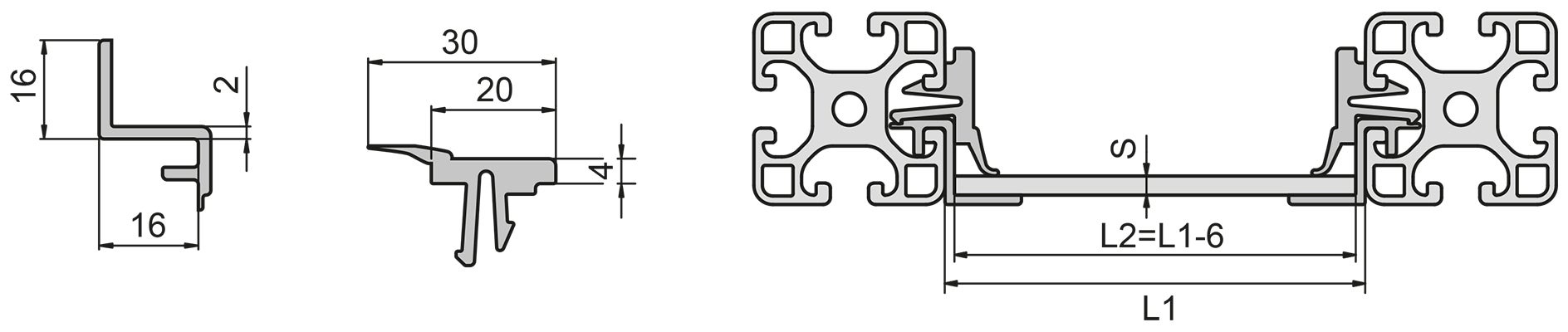

In order to improve the appearance, the mounted plates are more or less flush with the outer edge of the base frame. No need to remove existing constructions. The plate rests on an aluminium strip placed in the profile slot. An elastic plastic strip is used to fasten the plate afterwards.
Read more

Product Information

System: 40 - Slot 8
Type: Sealing, Coverstrips & Rubbers
Designation Select all CAD Compare Get quote Lead Time * Description System Material Length S
Get quote 1 Panel clamping strip 8 Al 40 - Slot 8 Aluminium 3000 2-4
Get quote 1 Panel clamping strip 8 40 - Slot 8 Grey PP/TPE, similar to RAL7042 3000 -

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
