Load Bearing Rollers
Universal rollers designed to run in the profile t-slot

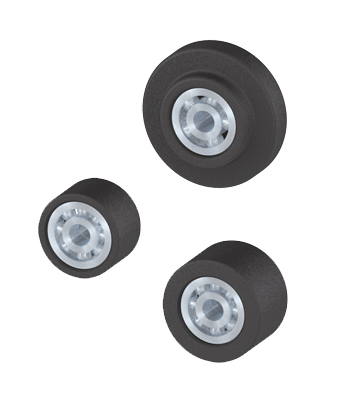

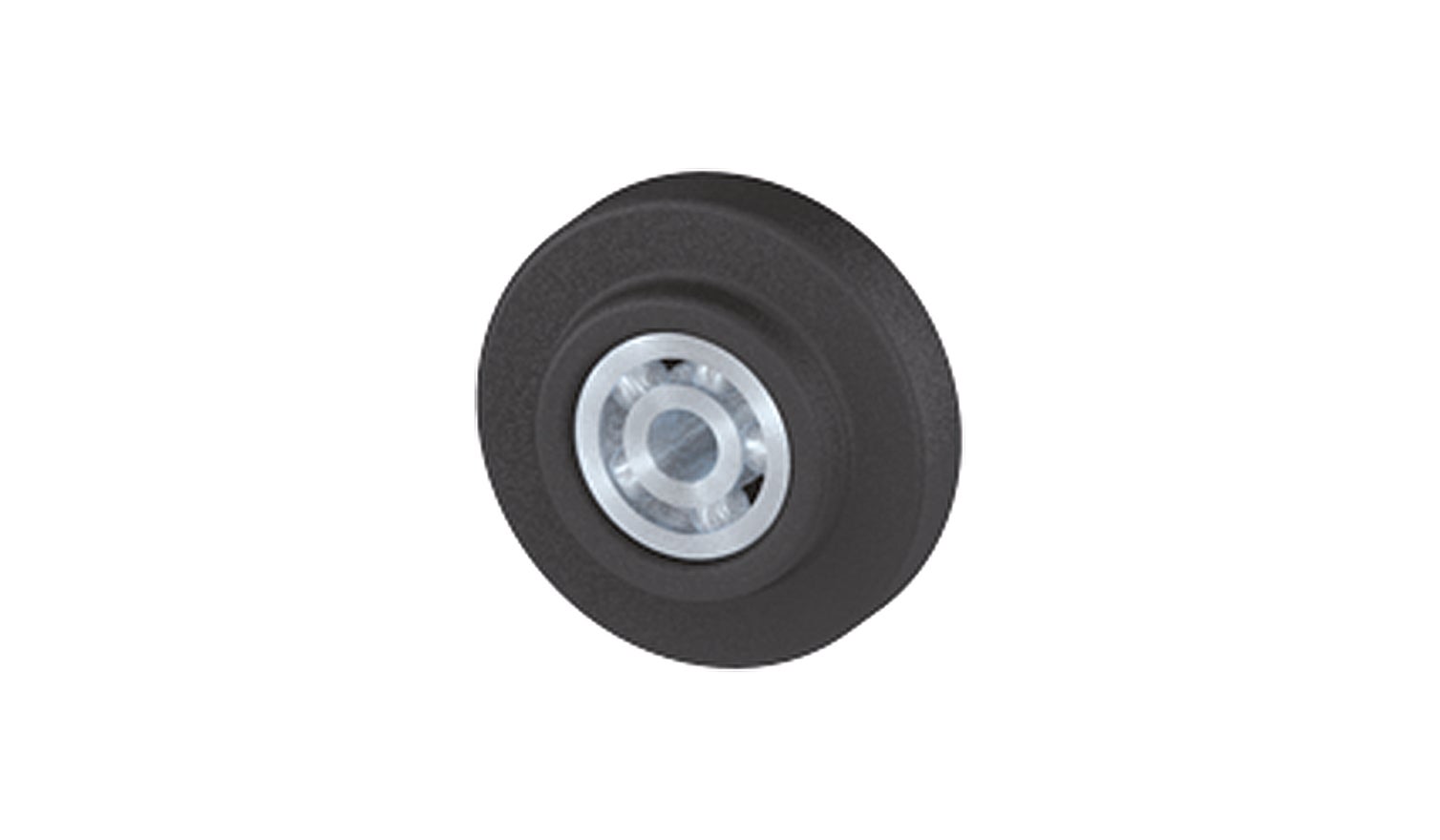

Rollers, POM
Application:
The ball bearing roller is guided into the profile t-slot and can be used for flexible attachments of panel elements. Because of its asymmetrical construction, distances between the panel and profile can be adjusted.
The ball bearing roller is guided into the profile t-slot and can be used for flexible attachments of panel elements. Because of its asymmetrical construction, distances between the panel and profile can be adjusted.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
Material: POM (polyoxymethylene), black
System: 40 - Slot 8
| Designation | Select all | Lead Time * | Description | System | Weight (g) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
/storage/3EDBBC2A3BFBE7593685D2A43B4E984B2835541868CCBFE5897F228FB4F4D102/d1ccb12b79114f8780fddb604c34c77b/stp/media/ee74b3854ce44b7cb3866aba9d4c5e10/CAD_SZ2210S_RollersPOM_Rollco.stp | 2 | Roller, POM, Ø 24 | 40 - Slot 8 | 35 |
|
||
|
|

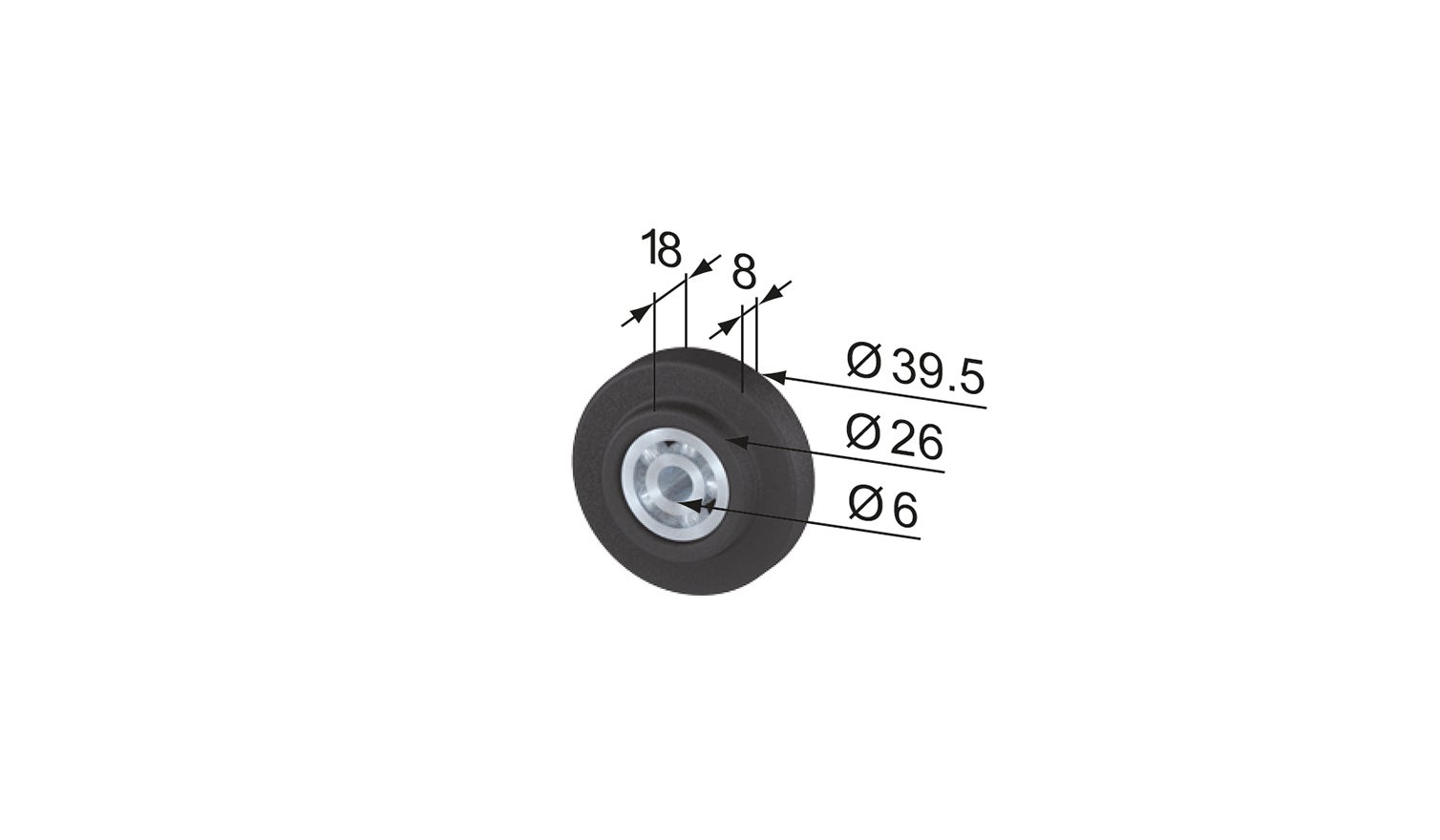

2 | Roller, POM, Ø 26 | 40 - Slot 8 | 35 |
|
|||
|
|
/storage/1D48C3F8D2588A1E77FC4C2F915C5CB160BA0EC80761AB3D46C2512F74D5315C/f4395d793fb94ea7abc10ba43117cd09/stp/media/3ca5b84a578c419f9c51554d6dc72b52/CAD_SZ2230S_RollersPOM_Rollco.stp | 2 | Roller, POM, Ø 29 | 40 - Slot 8 | 28 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
